BRIG Eagle 6 - Console Equipment and Switch Functions

— 19 —
EAGLE 6 2378G.01
Console equipment (Fig. D5):
Your boat can be equipped with:
— mechanical or hydraulic steering system;
— compass;
— fuel-level meter;
— speedometer;
— additional equipment (tachometer or multi-purpose meter,
trimmer, voltmeter, clock);
— socket 12V with fuse;

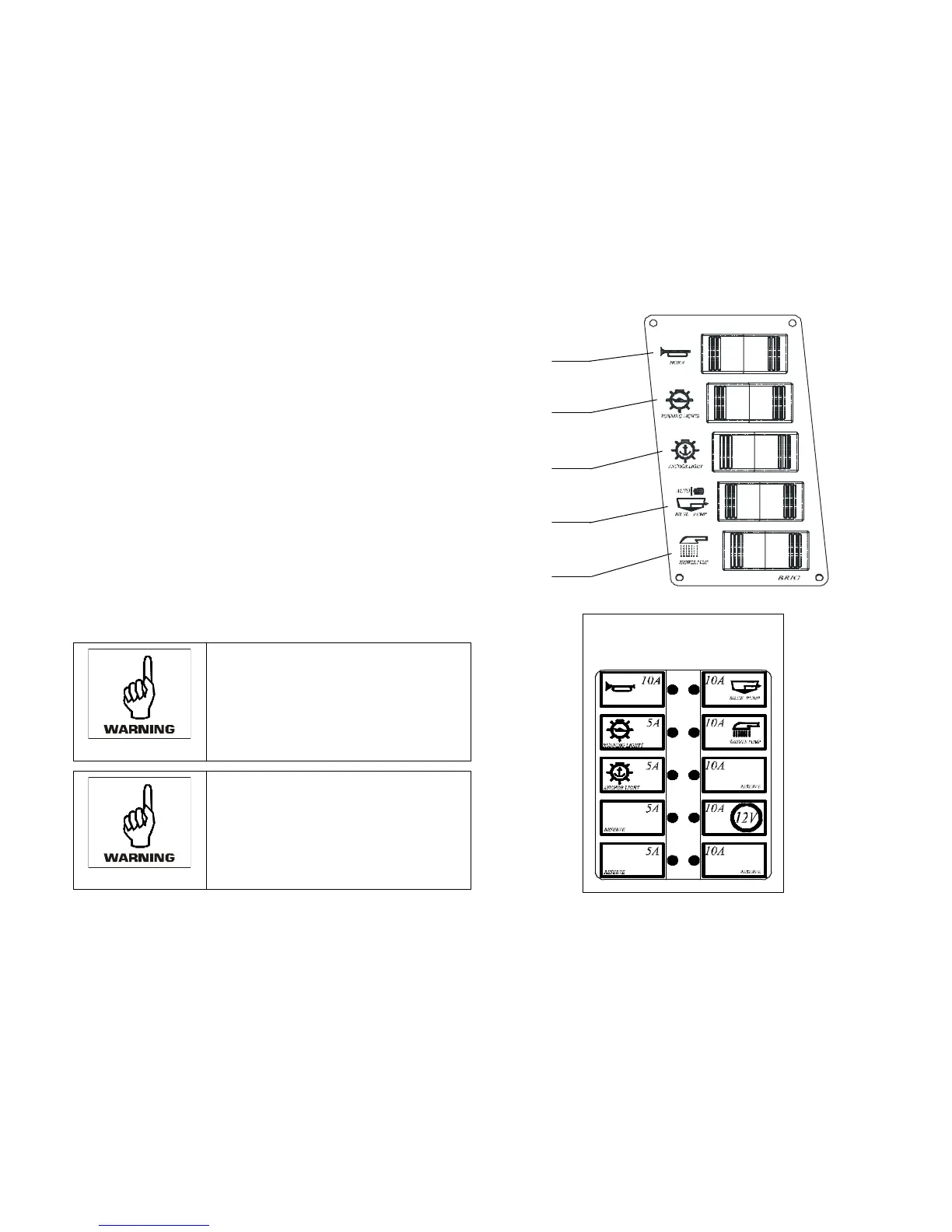

Switch functions:
— electric horn switch (1);
— running lights and meter lamp switch (2);
— anchor light switch (3);
— bilge pump switch (4);
— shower pump switch (5);
Fuse holding box with warning lights (inside of the steering
console on the left side)
Always keep a spare set the fuse in
an easily-accessible location.
Always check the fuse. Burning red
LED display on the fuse box warns of
faulty fuse
D5
Fuse holding box with
warning lights
5
4
10
9
3 8
61
HORN
2
7
2
3
4
1
5
