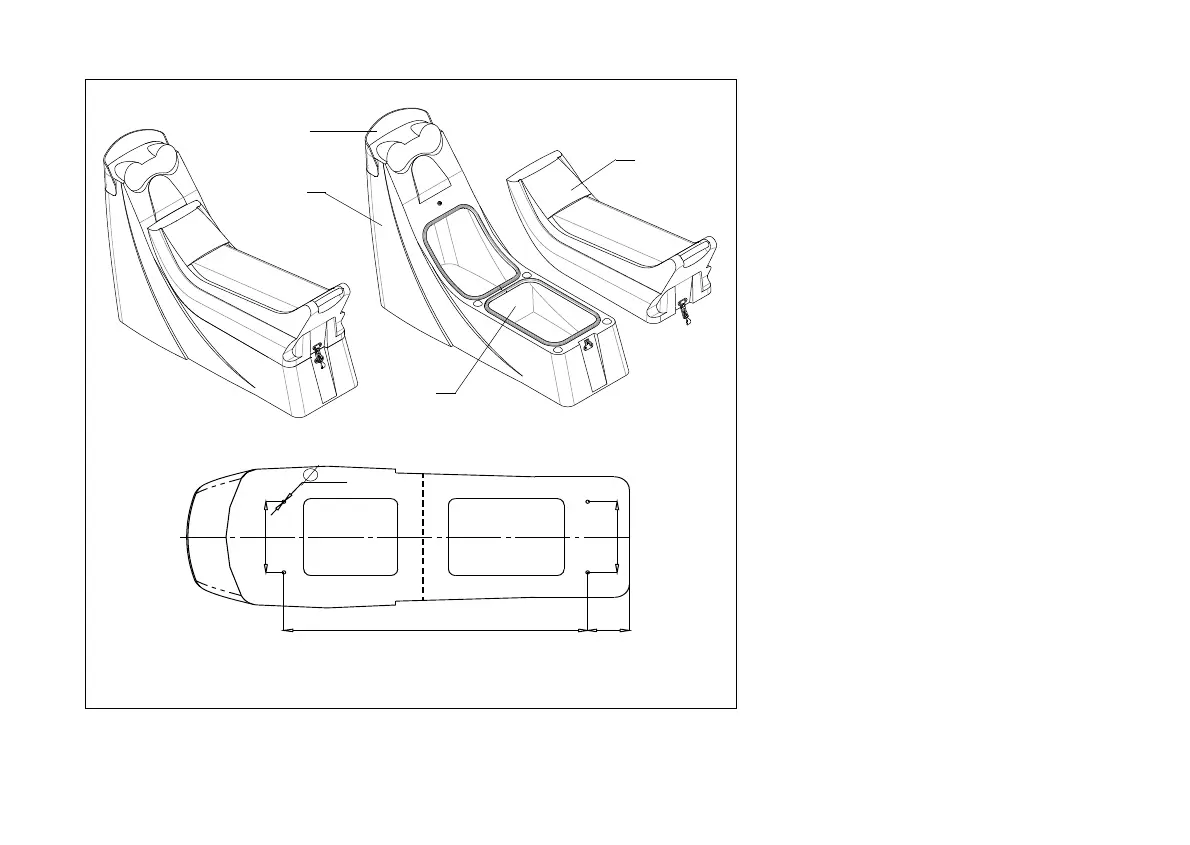

Console SPORT general view is shown in the Fig.9:
1.The console body.
2.The upper removable part with seat.
3.The windscreen.
4.The interior wall.
The interior wall divides the inner volume of the con-
sole body into two compartments. The compartment
A is recommended for the installation of the storage
battery, the compartment B has been designed for
the installation of the standard fuel tank (12L max).
In order to install the console to the BRIG boat per-
form the next operations (Fig. 9):
• disconnect the upper removable part with seat;
• fix the console by means of the bolt M8 and washers
to the deck boat;
• replace the upper removable part with seat.
Steering Console for Sport Version.
2
1
4
A
B
3
Fig.9
Sport console
220
840
115
4holes
12
220
