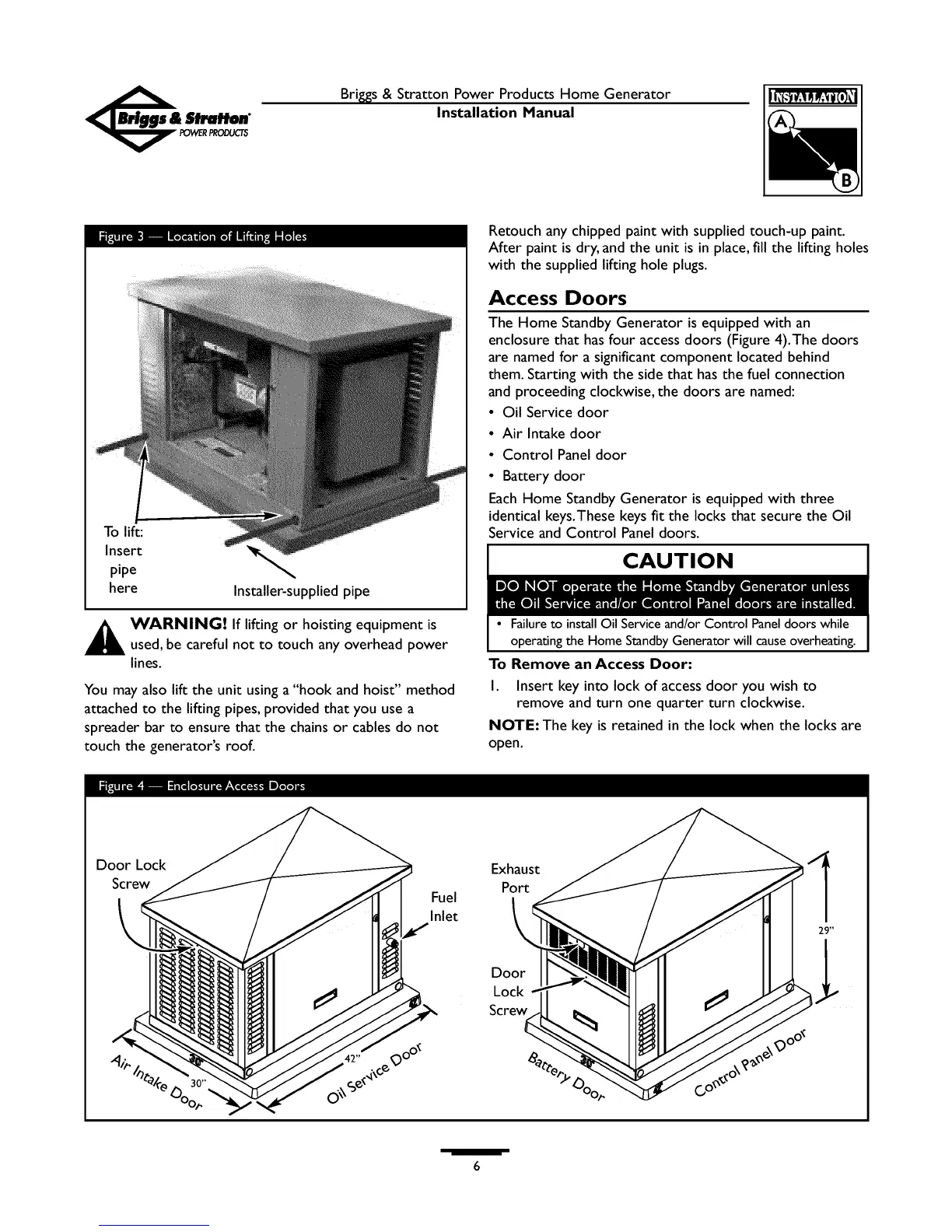

To lift:
Insert
pipe
here
Installer-supplied pipe
WARNING! If lifting or hoisting equipment is
used, be careful not to touch any overhead power
lines.
You may also lift the unit using a "hook and hoist" method
attached to the lifting pipes, provided that you use a
spreader bar to ensure that the chains or cables do not
touch the generator's roof.
Retouch any chipped paint with supplied touch-up paint.
After paint is dry, and the unit is in place, fill the lifting holes
with the supplied lifting hole plugs.
Access Doors
The Home Standby Generator is equipped with an
enclosure that has four access doors (Figure 4).The doors
are named for a significant component located behind
them. Starting with the side that has the fuel connection
and proceeding clockwise, the doors are named:
• Oil Service door
• Air Intake door
• Control Panel door
• Battery door
Each Home Standby Generator is equipped with three
identical keys.These keys fit the locks that secure the Oil
Service and Control Panel doors.
CAUTION
• Failureto installOil Serviceand/or Control Paneldoors while
operating the Home StandbyGenerator will causeoverheating.
To Remove an Access Door:
I. Insert key into lock of access door you wish to
remove and turn one quarter turn clockwise.
NOTE: The key is retained in the lock when the locks are
open.
Door Lock
Screw
Fuel
L Inlet
Exhaust
Port
Door
Lock I_
Screw
To Next Page
