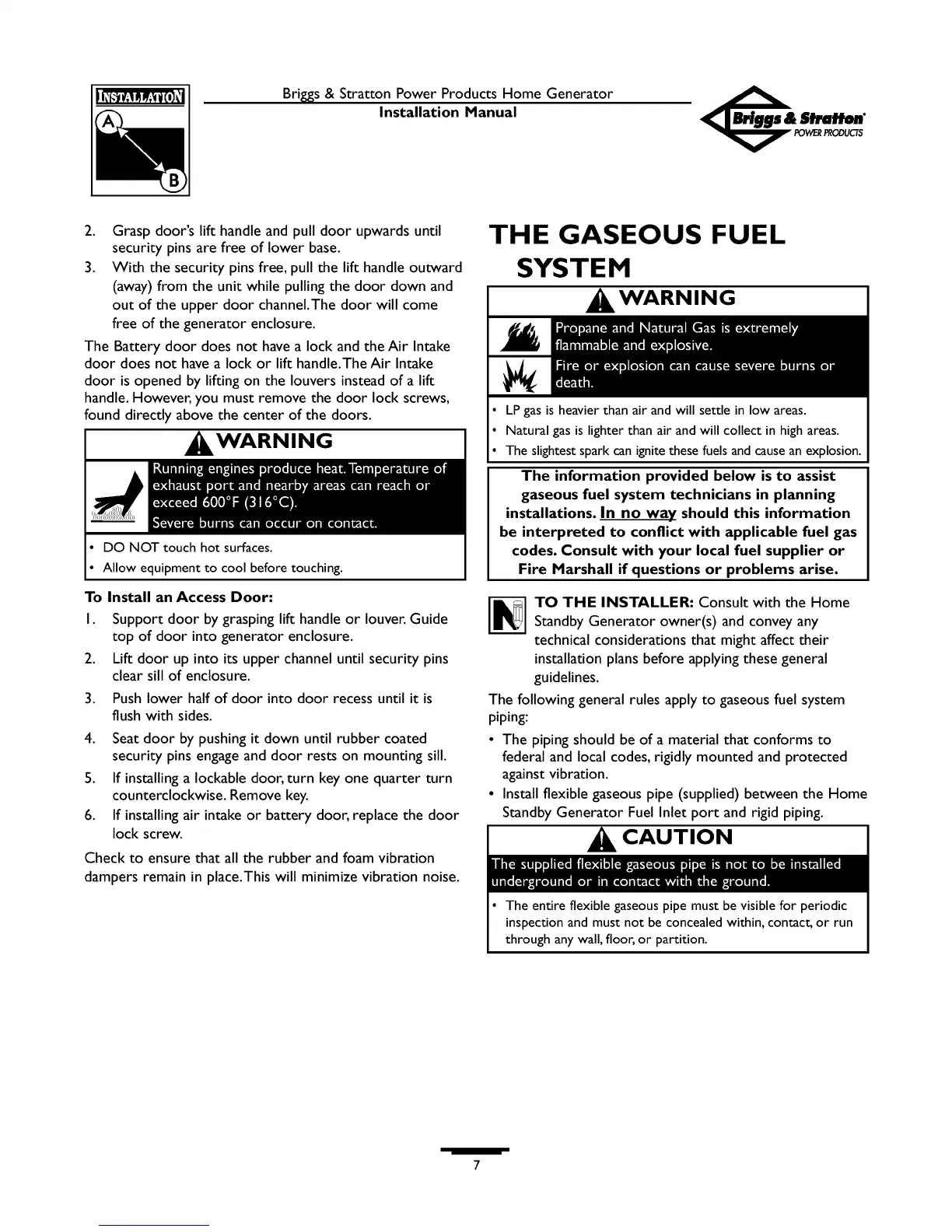

I Briggs & Stratton Power Products Home Generator
Installation Manual
WERPRODUCTS
2. Grasp door's lift handle and pull door upwards until
security pins are free of lower base.
3. With the security pins free, pull the lift handle outward
(away) from the unit while pulling the door down and
out of the upper door channel.The door will come
free of the generator enclosure.
The Battery door does not have a lock and the Air Intake
door does not have a lock or lift handle.The Air Intake
door is opened by lifting on the louvers instead of a lift
handle. However, you must remove the door lock screws,
found directly above the center of the doors.
I WARNING I
• DO NOT touch hot surfaces.
• Allow equipment to cool before touching.
To Install an Access Door:
Support door by grasping lift handle or louver. Guide
top of door into generator enclosure.
Lift door up into its upper channel until security pins
clear sill of enclosure.
I.
2.
3.
4.
5.
6.
Push lower half of door into door recess until it is
flush with sides.
Seat door by pushing it down until rubber coated
security pins engage and door rests on mounting sill.
If installing a Iockable door, turn key one quarter turn
counterclockwise. Remove key.
If installing air intake or battery door, replace the door
lock screw.
Check to ensure that all the rubber and foam vibration
dampers remain in place.This will minimize vibration noise.
THE GASEOUS FUEL
SYSTEM
WARNING
LP gas is heavier than air and will settle in low areas.
Natural gas is lighter than air and will collect in high areas.
The slightest spark can ignite these fuels and cause an explosion.
The information provided below is to assist
gaseous fuel system technicians in planning
installations. In no way should this information
be interpreted to conflict with applicable fuel gas
codes. Consult with your local fuel supplier or
Fire Marshall if questions or problems arise.
TO THE INSTALLER: Consult with the Home
Standby Generator owner(s) and convey any
technical considerations that might affect their
installation plans before applying these general
guidelines.
The following general rules apply to gaseous fuel system
piping:
• The piping should be of a material that conforms to
federal and local codes, rigidly mounted and protected
against vibration.
• Install flexible gaseous pipe (supplied) between the Home
Standby Generator Fuel Inlet port and rigid piping.
CAUTION
The entire flexible gaseous pipe must be visible for periodic
inspection and must not be concealed within, contact, or run
through any wall, floor, or partition.
7
