REMOVE EXTERNAL ASSEMBLIES

Preliminary Instructions

1. Start and run engine until fuel tank is empty.

2. Remove spark plug wire from spark plug terminal.

Secure spark plug wire to prevent unintentional contact

with spark plug terminal.

3. Remove oil drain plug(s) with sealing washer(s) at base

of engine and drain oil into an approved container.

Air Cleaner

Refer to one of the following configurations:

• Dual Element Oval Air Filter

• Oil Bath Air Filter

• Foam Low Mount Air Filter

• Foam Large Panel Air Filter

• Paper Air Filter

Dual Element Oval Air Filter

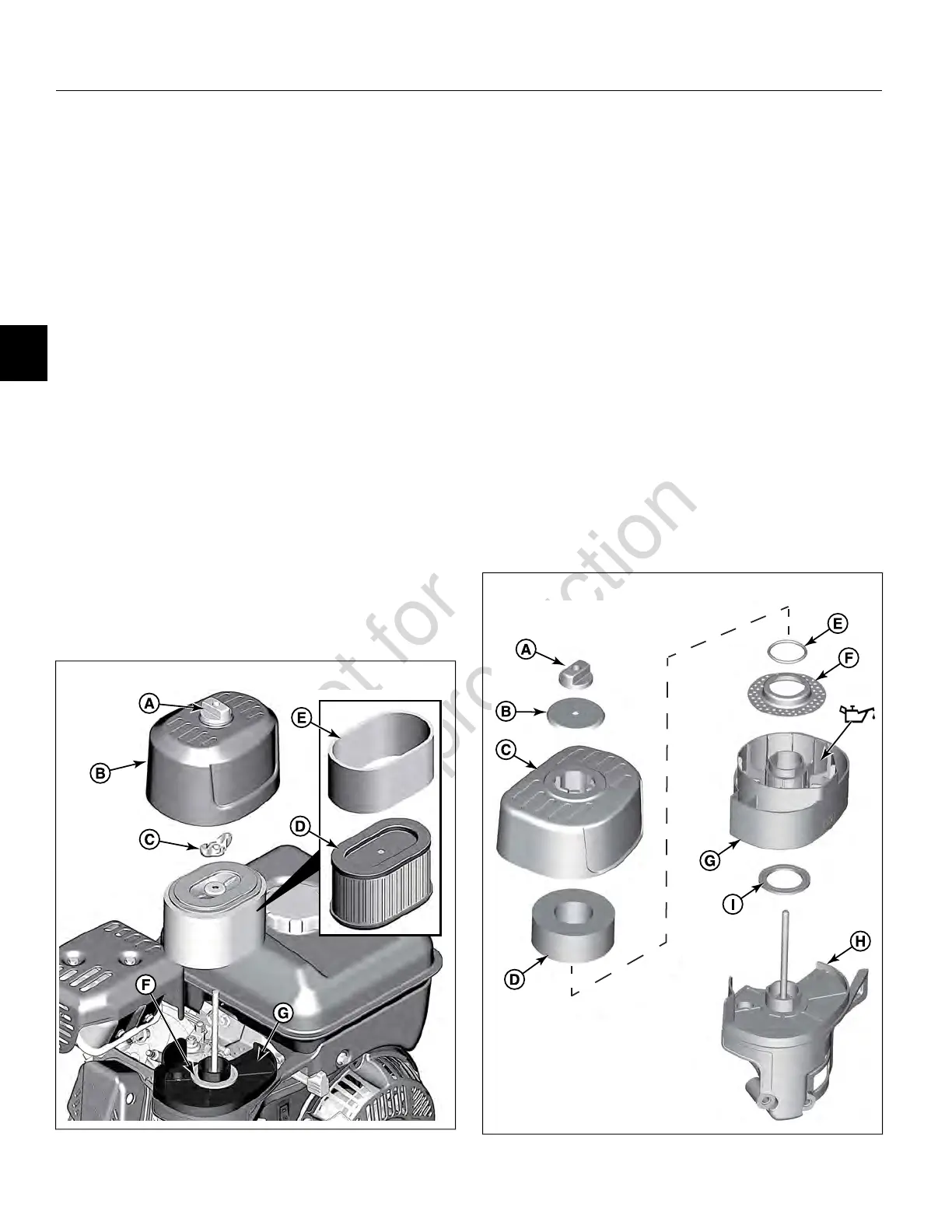

1. See Figure 21. Remove knob (A) to release air cleaner

cover (B).

2. Remove wing nut (C) to release air filter cartridge (D)

with foam pre-cleaner (E).

3. Remove seal washer (F) from air cleaner base (G).

4. Remove plastic knob from throttle control lever.

5. If equipped, remove hex flange screw to release high

oil fill tube flange from control panel trim.

6. Remove three hex flange screws to release control

panel trim from fuel tank. Disengage control panel trim

from slot in air cleaner base.

7. Remove breather hose from port on air cleaner base.

8. Remove top hex flange screw to release air cleaner

base from governor bracket.

9. Remove two hex flange nuts to release air cleaner base

from carburetor mounting studs.

Oil Bath Air Filter

1. See Figure 22. Remove knob (A) and flat washer (B)

to release air cleaner cover (C).

2. Remove foam filter (D) from air cleaner cover.

3. Remove O-ring (E) and baffle screen (F) from bath bowl

(G).
