Twin-Cylinder OHV Liquid-Cooled Engine
Section 1 - General Information
Page 4
ENGINE IDENTIFICATION

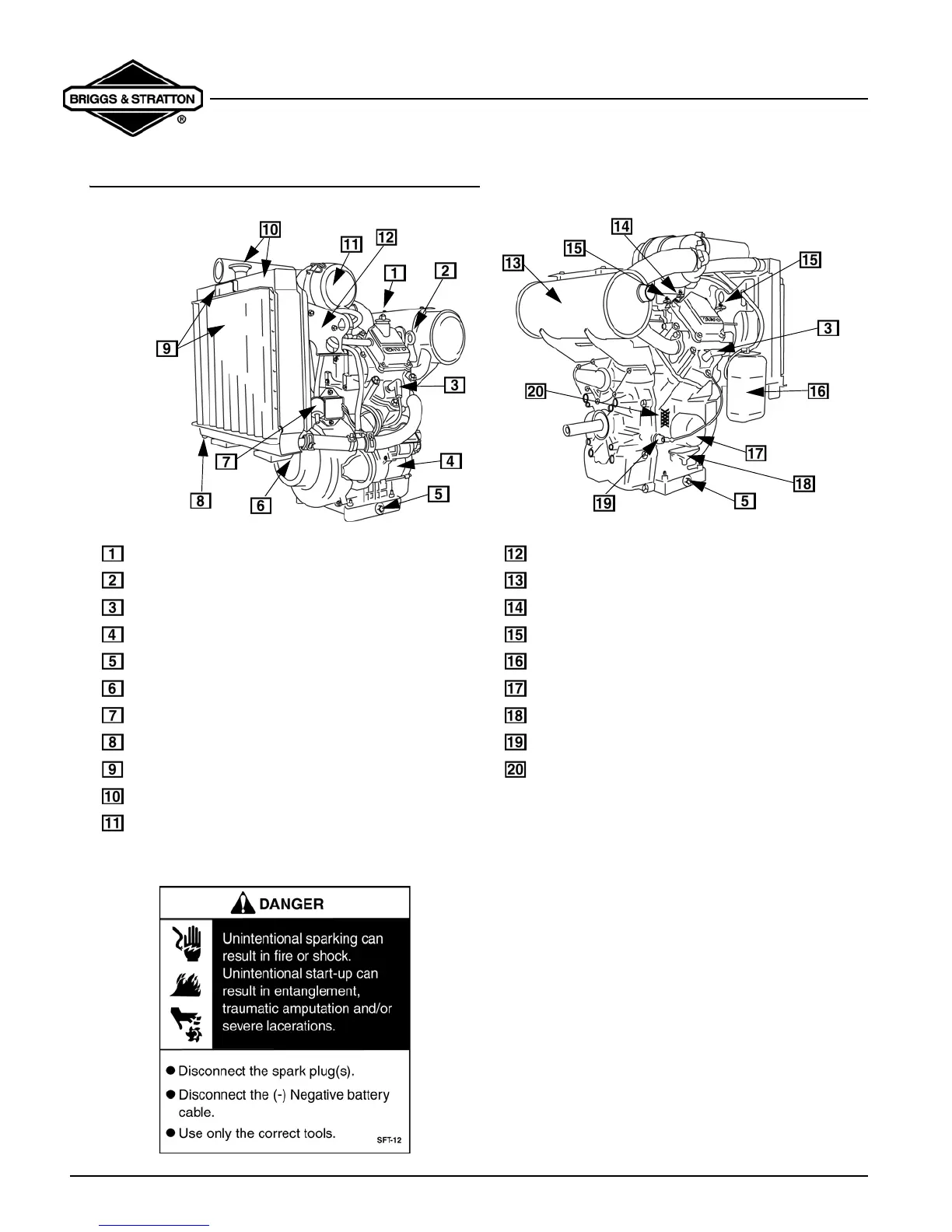

Fig. 1
Oil Fill Cap
Dipstick
Spark Plug
12V Electric Starter
Oil Drain Plug
Fan Belt (If Equipped)
Fuel Filter
Radiator Drain Plug (If Equipped)
Radiator Screen & Handle (If Equipped)
Radiator & Radiator Cap (If Equipped)
Air Cleaner (If Equipped)
Fuel Pump
Muffler (If Equipped)
Choke Control
Throttle Control (2 Possible Locations)
Radiator Reservoir (If Equipped)
Oil Filter
Oil Drip Tray (Igf Equipped)
Oil Pressure Switch
Engine Model Label
MODEL TYPE
CODE
xxxxxx
xxxx xx
xxxxxxxx
