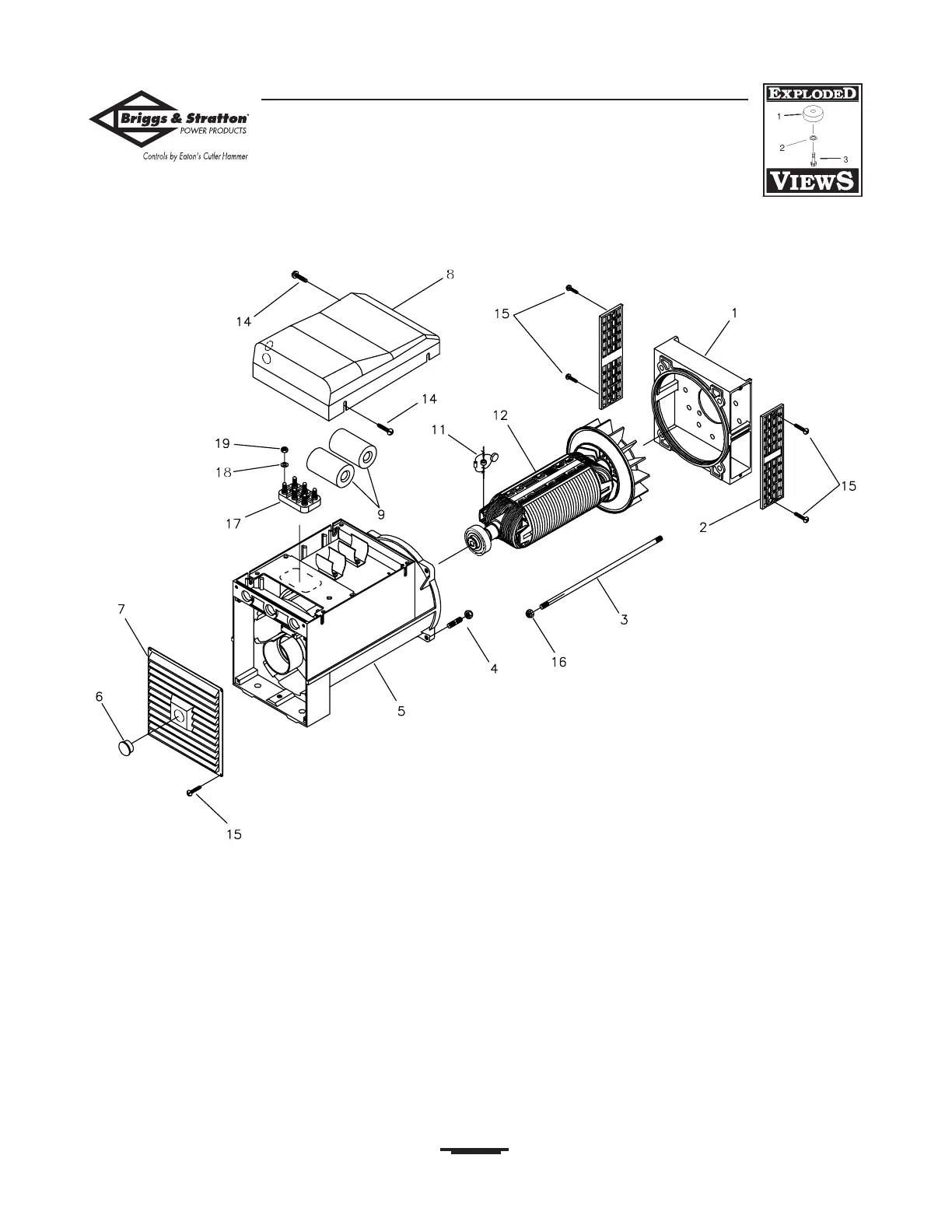

ALTERNATOR EXPLODED VIEW AND PARTS LIST
Item Part # Qty. Description
1 B4906GS 1 SHIELD, Front
2 B4907GS 2 GRID, Front
3 B4908GS 1 BOLT, Shaft Stay
4 B4909GS 4 STAY BOLT
5 B4910GS 1 ASSEMBLY, Housing
6 B4911GS 1 CAP
7 B4912GS 1 COVER, Blind End
8 B4913GS 1 COVER,Top Black
9 B4914GS 2 CAPACITOR, 25mF 450V
11 B4916GS 1 CAPACITOR, Diode + Varistor + EMC
12 191297GS 1 ROTOR,Assembly (Includes Item 11)
14 B4919GS 2 SCREW
15 B4920GS 8 SCREW
16 49820GS 1 LOCK NUT
17 188928GS 1 CONNECTOR, 6-Pin Sincro
18 22473GS 6 WASHER, Flat
19 49813GS 6 NUT
