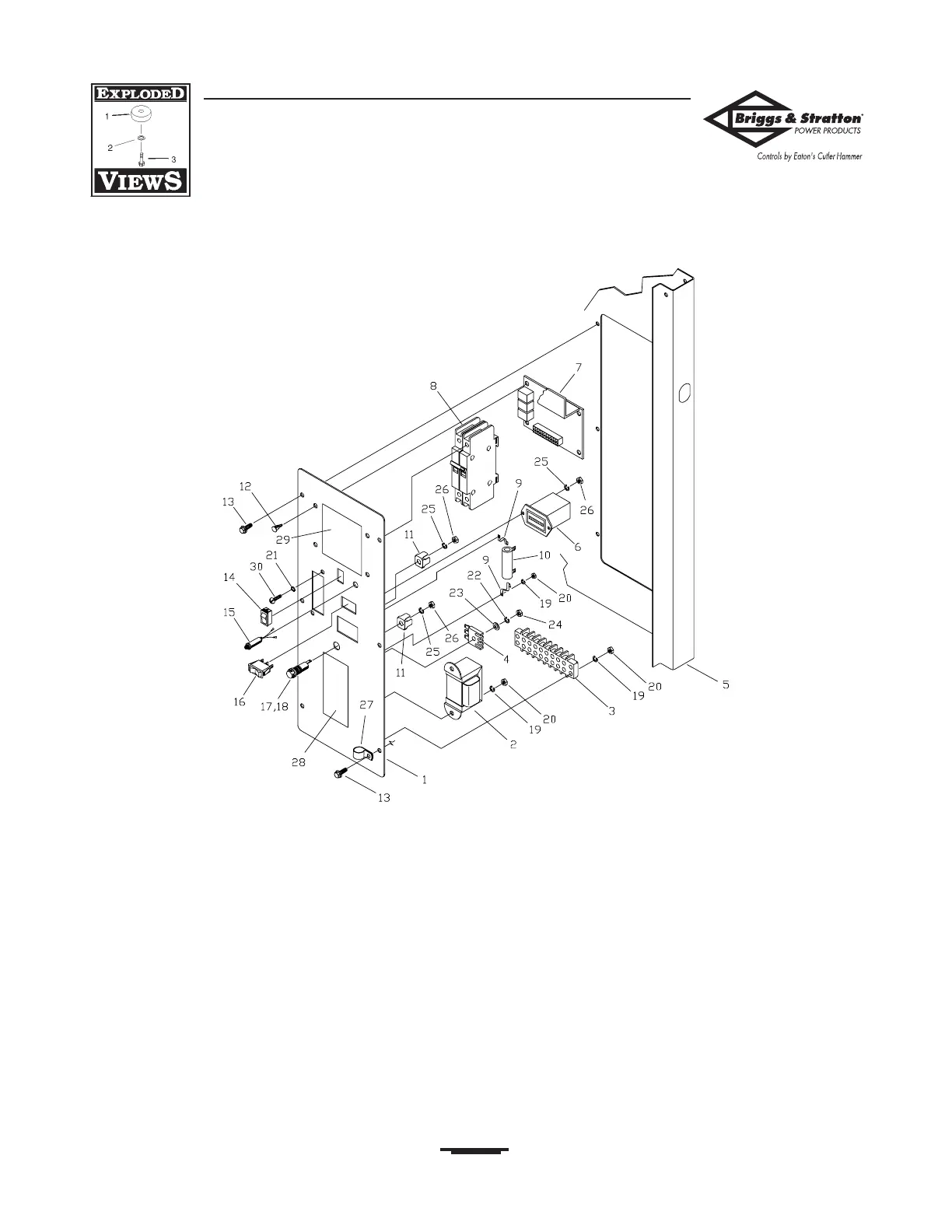

CONTROL PANEL EXPLODED VIEW AND PARTS LIST
Item Part # Qty. Description
1 190805GS 1 CONTROL PANEL, with Silk
Screen
2 B4776GS 1 TRANSFORMER
3 B4799GS 1 STRIP,Terminal
4 65795GS 1 RECTIFIER, Battery Charge
5 H185967GS 1 BULKHEAD, Engine Side
6 77604GS 1 HOUR METER
7 B5111GS 1 CONTROL BOARD
8 190818JGS 1 CIRCUIT BREAKER, 50 Amp
190818GGS 1 CIRCUIT BREAKER, 40 Amp
9 B4893GS 2 BRACKET, Resistor
10 B4867GS 1 RESISTOR, 25W, .5 OHM
11 57345GS 2 NEUTRAL, 4 Prong
12 186413GS 4 STANDOFF, Control Board
13 B4300GS 6 BOLT, Swage
14 87799GS 1 SWITCH, Set Exercise
15 B5133GS 1 DIODE, Light
Item Part # Qty. Description
16 186443GS 1 SWITCH,Auto/Off/Manual
17 32300GS 1 HOLDER, Fuse
18 22676GS 1 FUSE, 15 Amp AGC
19 22264GS 6 LOCKWASHER
20 51715GS 6 NUT
21 23364GS 2 WASHER, Int. Shakeproof
22 49226GS 1 LOCKWASHER
23 23897GS 1 FLATWASHER
24 51716GS 1 NUT
25 43182GS 4 LOCKWASHER
26 51714GS 4 NUT
27 187060GS 1 CLAMP, Cable
28 186640GS 1 DECAL, Caution Electrical Shock
29 186640GS 1 DECAL, Control Panel Fault
Description
30 36902GS 2 SCREW, Phillips Pan Head
