34
Briggs & Stratton Power Products Home Standby Generator
Installation, Start-Up and Owner’s Manual

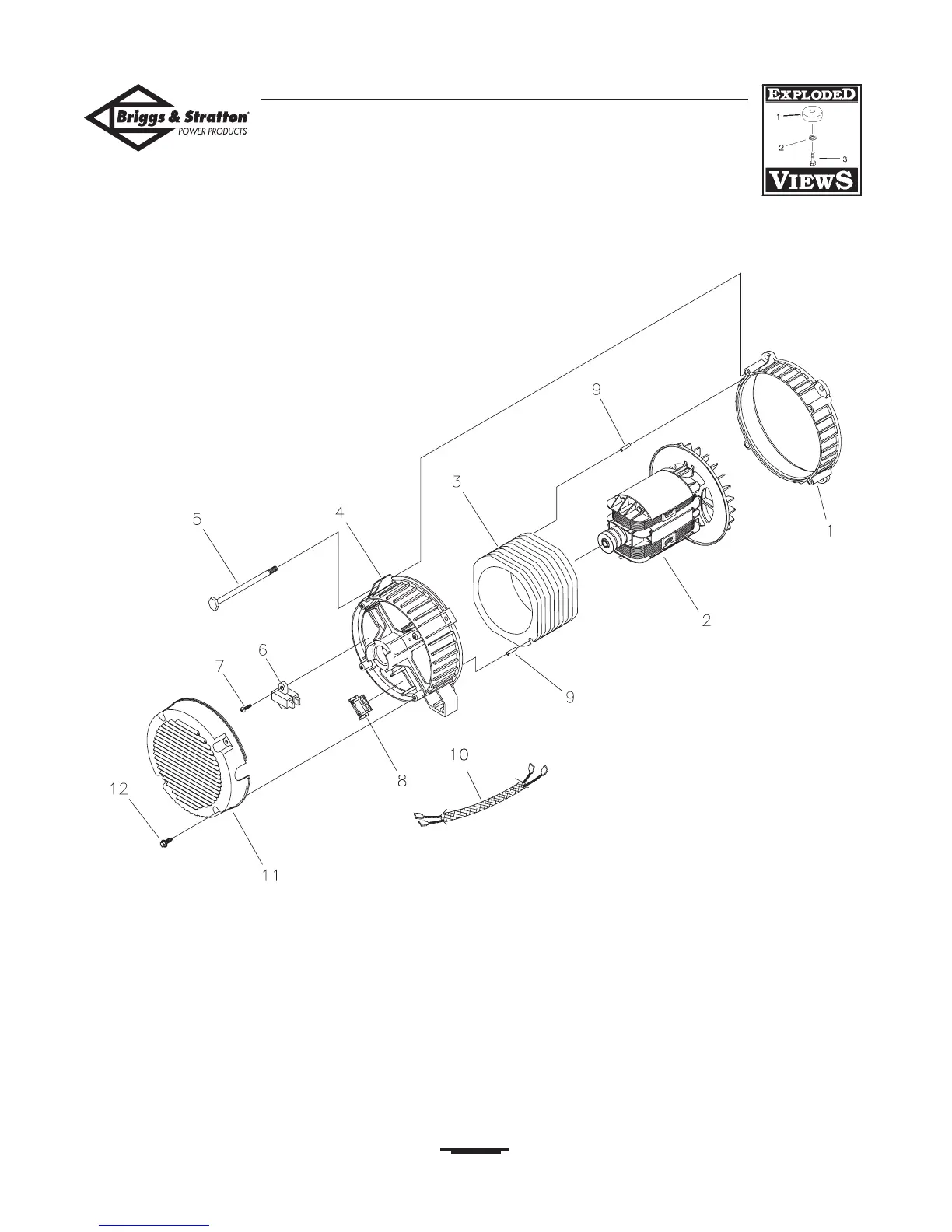

EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting,Alternator
2 195430GS ROTOR
3 193091AGS STATOR
4 193336GS RBC, (with O-Ring p/n 189197GS)
5 86308KGS HHCS, M6 - 1.0 x 140 SEMS
6 66386GS ASSY, Holder, Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 22694GS RECEPTACLE, 6 pin
9 81917GS PIN, Roll, 4mm x 10
10 193472GS HARNESS,Wire DC Charge
11 192906GS COVER, Bearing
12 74908GS SCREW, M5 - .8 x 10 Taptite
