Briggs & Stratton Power Products Home Generator System
Owners Manual
Generator Location
The actual physical location of your backup generator has a
direct affect on the amount of wiring required to control
and connect your generator.
NOTE: Specific location guidelines are discussed in the
Installation Manual.Acquaint yourself with that information
and confer with your installer. Be sure to ask how your site
might affect installation costs and compliance with local
codes and standards.
Generator Clearances
The generator must be a minimum of 3 ft. (92 cm) from
combustible material (NFPA 37). Leave at least 3 ft. (92 cm)
all around for access to the generator.
The unit’s exhaust port must be at least 5 ft. (152 cm) from
any building opening (window, door, vent etc.), and the
exhaust must not be able to accumulate in any occupied
area (Figure 1).
Figure 2 identifies system components and shows typical
installation details.Variations to this illustration are related
to code issues and materials.

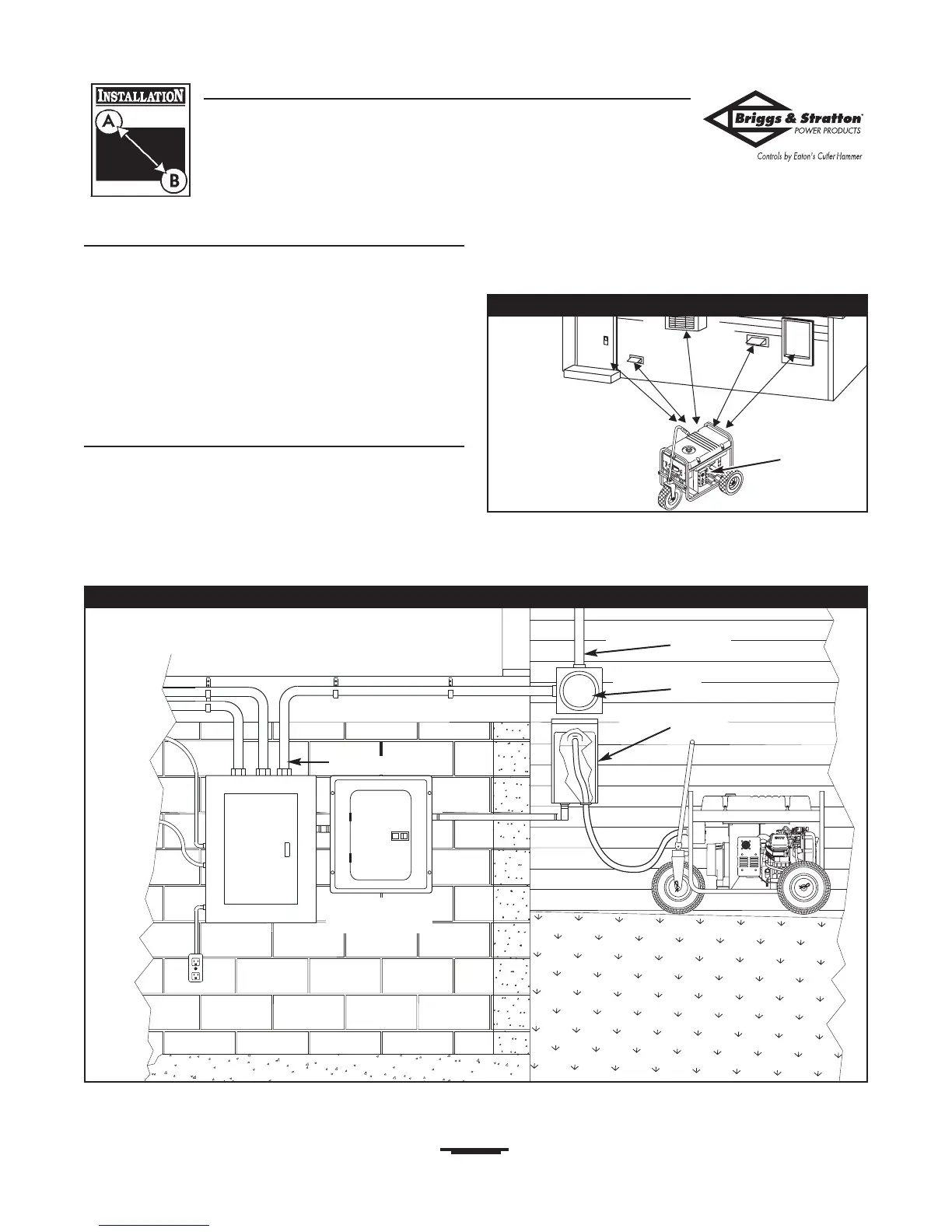

Figure 1 — Home Generator System Clearances
Exhaust port must be
5 ft (152 cm) minimum
distance from building
openings
Exhaust
Port
Figure 2 — Typical Completed Semi-Automatic Transfer Switch Installation
Utility Power Line
Utility Meter
Connection Box
Electrical
Load
Center
Utility Power
Semi-Automatic
Transfer Switch

Briggs & Stratton Home Generator System Specifications

Electrical Specifications

rated maximum load current at 25°C/77°F, LP	83.3 Amps
rated AC voltage	240 Volts
phase	Single phase
rated frequency	60 Hertz

Operating Environment

normal operating range	-20°F (-28.8°C) to 104°F (40°C)
output sound level at normal load	68 dB(A) at 23 ft. (7 m)

Weight and Dimensions

shipping weight	575 lb (260 kg)
