Features and Controls
Home Generator
Read this Operator’s Manual and Safety Rules before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Generator is pictured with access doors removed for clarity

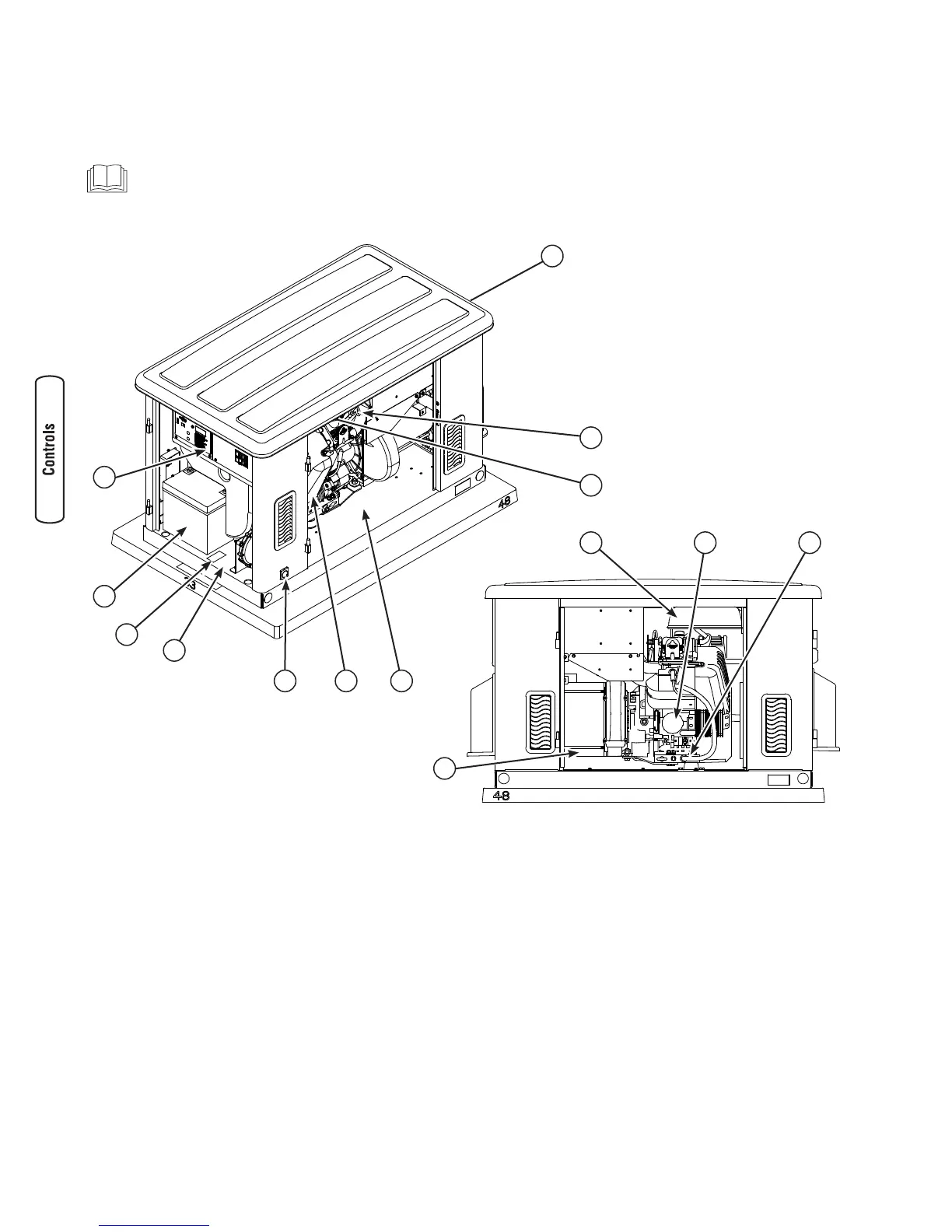

A - Exhaust Port — High-performance muffler lowers engine
noise to comply with most residential codes.
B - Oil Dip Stick — Used to check the engine oil level.
C - Oil Fill Cap — Remove to service the engine with
recommended oil.
D - Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
E - Oil Filter — Filters engine oil to prolong system life.
F - Oil Drain Hose — Provided to facilitate oil changing.
G - Oil Drain Door opening — Provides access for engine
servicing.
H - Oil Fill Door opening — Provides access for engine
servicing.
J - Engine Label — Identifies engine model and type.
K - Fuel Inlet — Fuel supply is connected here.
L - Control Panel Door opening — Provides access to
control panel and battery.
M - Unit Data Decal (located on base) — Identifies unit by
serial number.
N - Battery — 12 Volt DC, 55 Amp-Hour sealed battery
provides power to start the engine.
P - Control Panel — Used for various test, operation and
maintenance functions. See System Control Panel on
the next page.
B
A
C
D E F
M
G
H
J
K
L
N
P
