Bri_,_s&StrattonPowerProductsHomeGeneratorSystem
OwnersManual

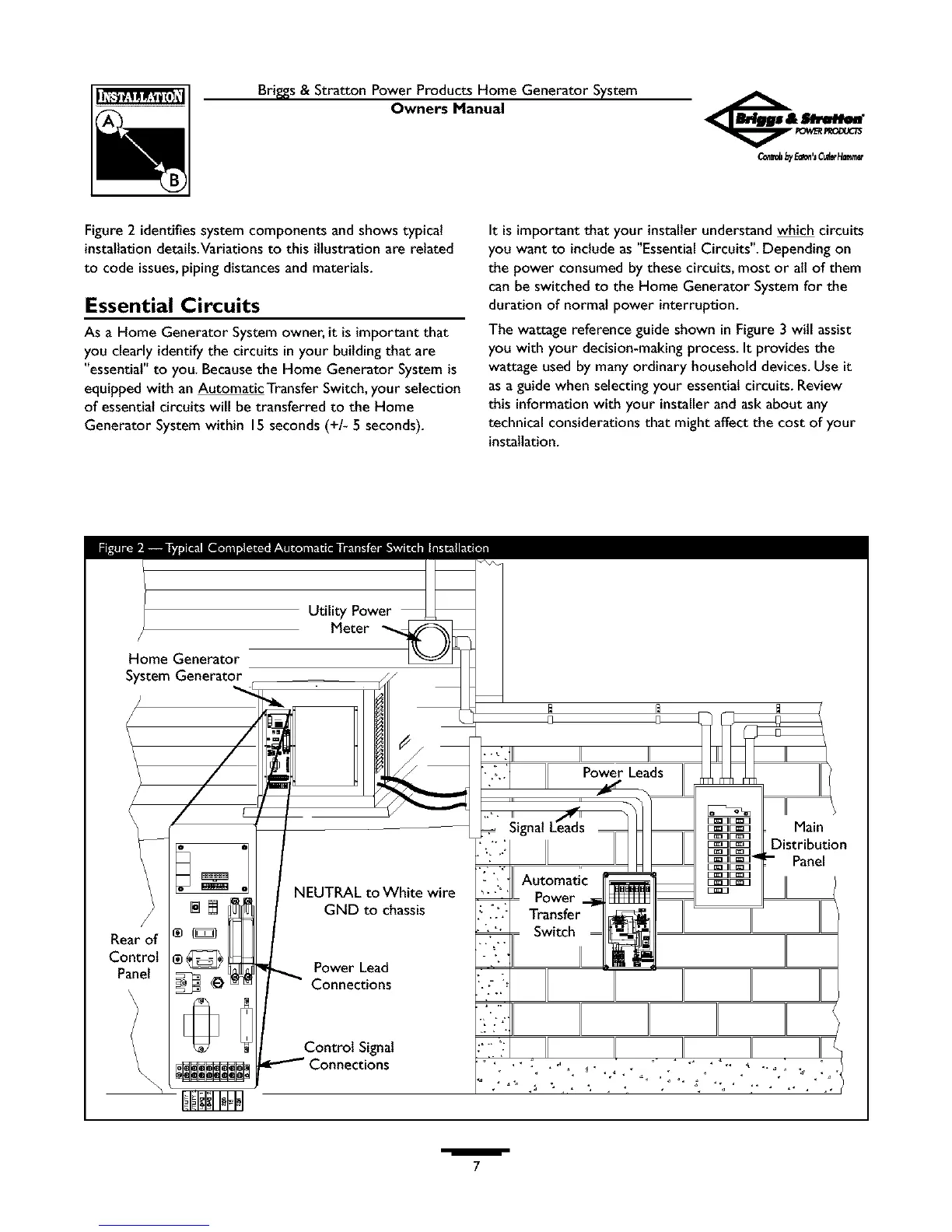

Figure 2 identifiessystem components and shows typical
installation details.Variations to this illustration are related
to code issues,piping distances and materials.
Essential Circuits
As a Home Generator System owner, it isimportantthat
you clearly identifythe circuits inyour building that are
"essential" to you. Becausethe Home Generator System is
equipped with an Automatic Transfer Switch, your selection
of essential circuits will be transferred to the Home
Generator Systemwithin 15 seconds (+/- 5 seconds).
It isimportant that your installerunderstand which circuits
you want to include as "EssentialCircuits". Depending on
the power consumed by these circuits, most or all of them
can be switched to the Home Generator System for the
duration of normal power interruption.
The wattage reference guide shown in Figure 3 will assist
you with your decislon-making process. It provides the
wattage used by many ordinary household devices.Use it
as aguide when selecting your essential circuits. Review
this information with your installer and ask about any
technical considerations that might affect the cost of your
installation.
Home Generator
System Generator
Rear of
Control
Panel
\\
Utility Power
Meter
NEUTRAL to White wire
GND to chassis
Power Lead
Connections
Control Signal
Connections
/
7
