4 BRIGGSandSTRATTON.COM
Safety and Control Symbols ................... 3
Equipment Description........................ 3
Features and Controls ........................ 3
Operation................................... 4
Maintenance ................................ 6
Storage .................................... 7
Troubleshooting ............................. 8
Specifications ............................... 8
Warranty ................................... 9

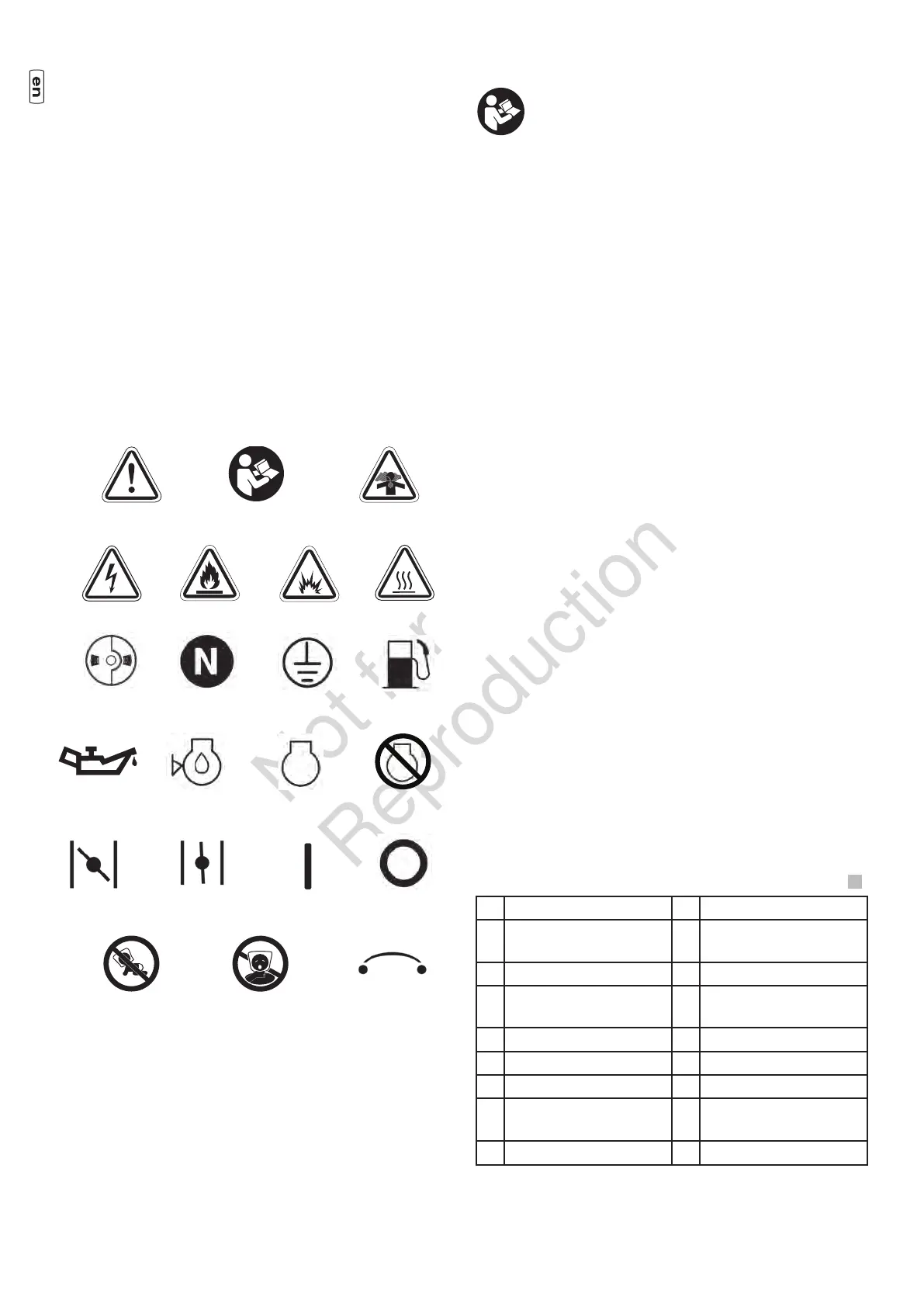

The safety alert symbol indicates a potential personal
injury hazard. A safety symbol may be used to represent
the type of hazard. WARNING indicates a hazard which,
if not avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided, could
result in minor or moderate injury. NOTICE indicates
information considered important, but not hazard-related.
For questions regarding European emissions, please
contact our European office at:
The inverter generator is an engine–driven, revolving
field, alternating and direct current (AC & DC) generator.
The generator is designed to supply electrical power
for operating compatible electrical lighting, appliances,
tools and motor loads. The generator’s revolving field
This machine is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge.
Every effort has been made to ensure that information
in this manual is accurate and current. However, the
manufacturer reserves the right to change, alter, or
otherwise improve the generator and this document at any
time without prior notice.
NOTICE If you have questions about intended use,
contact an authorized service dealer. This equipment is
designed to be used with Briggs & Stratton authorized
parts ONLY.
The generator has a system ground that connects the
generator frame components to the ground terminals
on the AC output receptacles. The generator neutral
is floating, which means that the AC stator winding
is isolated from the grounding fastener and the AC
receptacle ground pins. Electrical devices, such as RCD,
requiring a grounded neutral may not operate properly
from this generator.
There may be regulations, local codes, or ordinances
that apply to the intended use of the generator. Please
consult a qualified electrician, electrical inspector, or the
local agency having jurisdiction.
This generator is not intended to be used at a
construction site or similar activity.
Figure
1
A Fuel Cap K Identification Label
B Choke Lever L 12 Volt DC
Receptacle
C QPT Switch M USB Port
D Side Maintenance
Cover
N Parallel Operation Port
E Recoil Handle P Statstation™
F DC Circuit Breaker R Grounding Fastener
G Engine Switch S Spark Arrester Muffler
H 230 Volt AC, 16 Amp,
Schuko Receptacle
T Top Maintenance
Cover
J Retractable Handle
Original Instructions
Fire
Explosion
Toxic Fumes
Hot Surface
Electrical Shock
Safety Alert
Symbol
Instruction Manual
Oil Level
Carbon
Monoxide Alarm
Circuit Breaker
On
Ground Terminal
Floating
Neutral
Off
Fuel
Engine Control
!
Do Not Start
Engine
Choke
Run
Suffication
Suffication
Oil
To Next Page
