Not for
Reproduction
4 

Safety and Control Symbols . . . . . . . . . . . . . . . . . . . 4
Equipment Description. . . . . . . . . . . . . . . . . . . . . . . . 4
Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

The safety alert symbol indicates a potential personal
injury hazard. A safety symbol may be used to represent
the type of hazard.  indicates a hazard which,
if not avoided, could result in death or serious injury.
 indicates a hazard which, if not avoided, could
result in minor or moderate injury. NOTICE indicates
information considered important, but not hazard-related.

For questions regarding European emissions, please
contact our European office at:







The inverter generator is an engine–driven, revolving
field, alternating and direct current (AC & DC) generator.
The generator is designed to supply electrical power for
operating compatible electrical lighting, appliances, tools
and motor loads. The generator’s revolving field is driven
by a single-cylinder engine.
To move generator, press button and pull handle out.
Press button to push handle back in.
The portable generator can be used to power outdoor
items using an extension cord or to restore home power
using a transfer switch. A transfer switch is a separate
device installed by a licensed electrician that allows
the portable generator to be cord connected, using the
receptacle, directly into your home’s electrical system.
Install a manual transfer switch as soon as possible if
generator will be used to provide home power restoration.
The generator is not intended to supply systems that are legally
required, for serious life safety or health hazards, or where lack
of power hampers rescue of fire-fighting operations.
Every effort has been made to ensure that information
in this manual is accurate and current. However, the
manufacturer reserves the right to change, alter, or
otherwise improve the generator and this document at any
time without prior notice.
NOTICE If you have questions about intended use,
contact an authorized service dealer. This equipment is
designed to be used with Briggs & Stratton® authorized
parts ONLY.

The generator has a system ground that connects the
generator frame components to the ground terminals
on the AC output receptacles. The generator neutral is
floating ( ), which means that the AC stator winding
is
isolated from the grounding fastener and the AC receptacle
ground pins. Electrical devices, such as RCD, requiring
a grounded neutral may not operate properly from this
generator. Earthing of the generator is not required.

There may be regulations, local codes, or ordinances
that apply to the intended use of the generator. Please
consult a qualified electrician, electrical inspector, or the
local agency having jurisdiction.
This generator is not intended to be used at a
construction site or similar activity.
EU Disposal
This symbol indicates the owner of
batteries and electrical or electronic
equipment shall not dispose of this
product with unsorted municipal waste.
This product should be disposed of in
environmentally appropriate waste
locations. Please contact Briggs & Stratton or your local
retailer for additional disposal information.

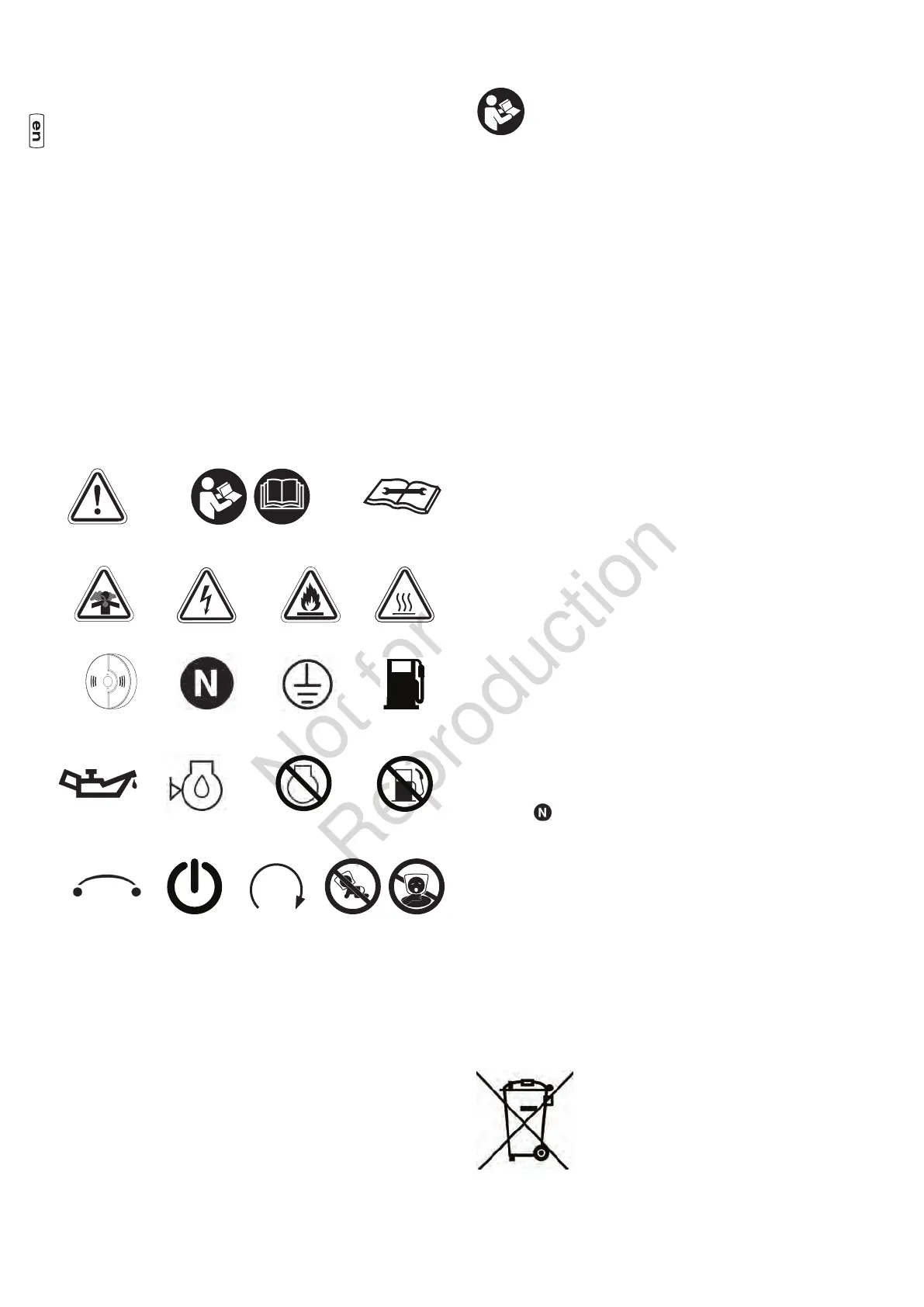

FireToxic Fumes
Hot Surface
Electrical Shock
Safety Alert
Symbol
Oil Level
Carbon
Monoxide Alarm
Circuit Breaker
Ground Terminal
Floating
Neutral
Fuel
Fuel Off
!
Do Not Start
Engine
Start/Stop
Suffication
Oil
Instruction Manual
On/Off
Service
Generator

Other manuals for Briggs & Stratton P4500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Briggs & Stratton P4500 and is the answer not in the manual?

Briggs & Stratton P4500 Specifications

General IconGeneral
Running Watts3700W
Starting Watts4500W
Engine Displacement224cc
Fuel TypeGasoline
Tank Capacity3.5 gallons
Voltage120/240V
Run Time at 50% Load8 hours
WheelsYes
Outlet Types1 x 120/240V 30A Outlet
Starting SystemRecoil
Run Time at 25% Load16 hours
