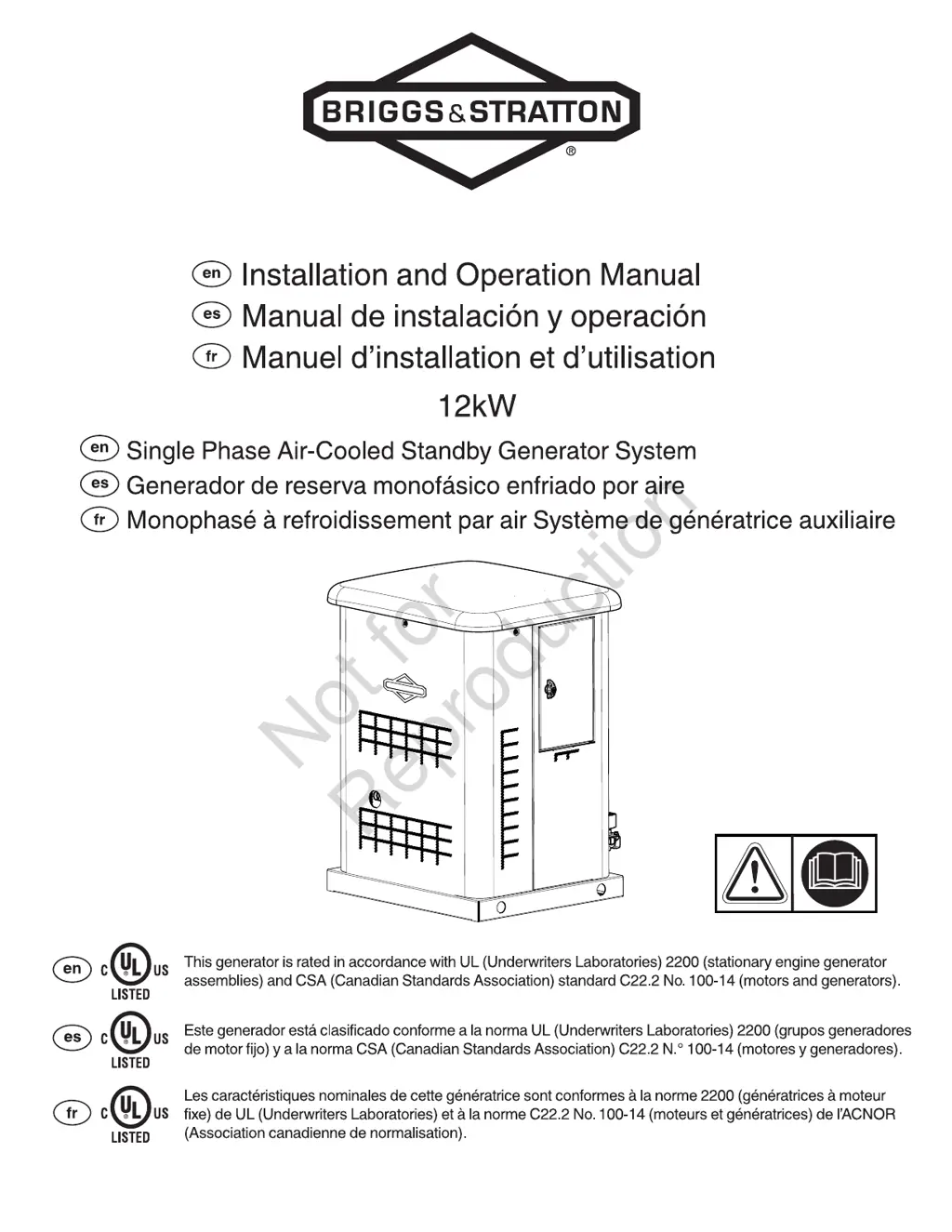

Briggs & Stratton 12KW

Other manuals for Briggs & Stratton 12KW

Operator's Manual64 pages

Questions and Answers

K
kelly15Aug 19, 2025
How to troubleshoot a Briggs & Stratton 12KW that won't start?
- R
  Raymond HernandezAug 19, 2025
  If your Briggs & Stratton Portable Generator engine won't start, or starts and runs roughly, consider the following: 1. Check if the 15 Amp fuse is missing or blown. Install a new 15 Amp fuse. 2. Thermal fuse(s) might be blown. Replace them. 3. Ensure the fuel supply is turned on and not depleted. Open the fuel valve(s) and check the propane tank. 4. Verify that the fuel selection is correct using the fuel selector switch. 5. A failed battery can prevent starting. Replace the battery. 6. A clogged air filter can cause starting issues. Clean or replace the air filter. 7. Check for any binding in the throttle linkage.
M
Matthew SmithAug 21, 2025
Why Briggs & Stratton Portable Generator will not start?
- G
  Gregory FranklinAug 21, 2025
  If your Briggs & Stratton Portable Generator won't start or runs roughly, there are a few things to check. Begin by inspecting the 15 Amp fuse; install a new one if it's missing or blown. Then, make sure the fuel supply is on and not depleted by opening the fuel valve(s) and checking the propane tank. Finally, examine the battery and replace it if it has failed.
P
Pedro OlsenAug 23, 2025
Why does my Briggs & Stratton 12KW Portable Generator engine bog down under load?
- A
  Amanda RobinsonAug 23, 2025
  If your Briggs & Stratton Portable Generator engine runs well without any load but falters when loads are connected, there could be several reasons: 1. The generator might be overloaded. Try removing one or more loads. 2. There could be a short circuit in a connected load. Disconnect the suspected electrical load. 3. It's possible there's a shorted generator circuit, in which case you should contact a local service facility. 4. The fuel pressure or mixture might be incorrect; consult the Gaseous Fuel System section in the manual. 5. A kinked fuel line between the regulator and engine could be the culprit. Remove the kink, and replace the fuel line if necessary. 6. Lastly, a clogged air filter could be restricting airflow. Clean or replace the air filter.
H
hickmanrobertAug 26, 2025
What to do if my Briggs & Stratton 12KW has no AC output?
- R
  rhaleyAug 26, 2025
  If your Briggs & Stratton Portable Generator engine is running but there's no AC output, here are a few things to check: 1. The circuit breaker might be open or defective. Try resetting or replacing the circuit breaker. 2. There might be an alarm on the generator control board. Please, contact a local service facility. 3. Poor wiring connections or a defective transfer switch could also be the cause. Check and repair the wiring connections, or contact a local service facility.
G
garzajeffreyAug 27, 2025
What to do if my Briggs & Stratton 12KW Portable Generator shuts down while running?
- M
  michellelawsonAug 27, 2025
  If your Briggs & Stratton Portable Generator engine shuts down during operation, here’s what to investigate: 1. Check the fuel supply. Make sure the fuel valves are open and the propane tank is full. 2. The control board digital display might be showing an alarm. Please, refer to Alarms section inside the online "Operation Instructions GC1031 GENSET Controller" manual (part number 80086364).
J
Joshua StoneAug 30, 2025
Why am I losing power on circuits with my Briggs & Stratton 12KW?
- P
  Paul ThompsonAug 30, 2025
  If you're experiencing a loss of power on circuits with your Briggs & Stratton Portable Generator, here are a couple of things to check: 1. The generator circuit breaker might be open. Try resetting it. 2. There might be transfer switch problems. Please, see transfer switch manual.
J
Jay ThomasSep 1, 2025
Why won't my Briggs & Stratton 12KW exercise?
- A
  Aaron TurnerSep 1, 2025
  If your Briggs & Stratton Portable Generator unit isn't exercising, consider these potential causes: 1. The control board might not be set to AUTO. Push the AUTO button on the control board. 2. The exercise timer might not be set or is set to OFF. Set the exercise timer. 3. The unit date and time might not be set. Set the unit date and time. 4. The battery might have failed. Replace the battery. 5. A 15 Amp fuse might be missing or blown. Install a new 15 Amp fuse.
M
Michelle HernandezSep 3, 2025
What to do if my Briggs & Stratton 12KW Portable Generator won't stop when utility power returns?
- K
  Kevin SmithSep 3, 2025
  If your Briggs & Stratton Portable Generator does not stop when utility power returns, there might be a few reasons: 1. Blown fuses in the transfer switch. Install new fuses. 2. The 5-minute cool-down period might not have elapsed. Wait 5 minutes. 3. Poor wire connections or defective controllers. Check and repair the connections, or contact a local service facility.
J
Joseph RossSep 5, 2025
Why does my Briggs & Stratton 12KW Portable Generator smell like fuel?
- S
  Savannah FoleySep 5, 2025
  If you notice an odor of fuel from your Briggs & Stratton Portable Generator, it is likely due to a fuel leak. Turn off the manual shutoff fuel valve and contact a local service facility.
B
Bradley SimpsonSep 7, 2025
Why is my Briggs & Stratton Portable Generator vibrating excessively?
- T
  troyalexanderSep 7, 2025
  If your Briggs & Stratton Portable Generator has excessive vibration, it could be due to a loose mechanical fastener. Check and repair or contact a local service facility.

Summary

Important Safety Instructions

Safety Alert Symbol and Signal Words

Explains the use of safety alert symbols and signal words to identify hazards and their potential severity.

Safety Symbols and Meanings

Provides a visual guide and explanation for safety symbols commonly used in the manual.

Safety Messages

General Information

Installer Responsibilities

Outlines the essential duties and requirements for professionals installing the generator system.

Owner Responsibilities

Details the ongoing tasks and obligations for owners regarding generator maintenance and operation.

Generator Placement

Generator Location Considerations

Discusses factors influencing the optimal placement of the generator for safety, performance, and code compliance.

Reduce the Risk of Carbon Monoxide Poisoning

Provides critical guidelines and diagrams to prevent hazardous carbon monoxide accumulation and exposure.

Reduce The Risk of Fire

Installation

Anchoring and Wind Rating

Details the requirements for securely anchoring the generator to withstand specified wind conditions.

Fuel Installation Plan

The Gaseous Fuel System

Fuel Pressure

Specifies the required fuel pressure levels at the generator inlet for both NG and LP fuels.

Fuel Pipe Sizing

Fuel Conversion

Explains the process and settings for converting the generator from natural gas to LP fuel.

Electrical Field Connections

Generator AC System Connection

Power Connections from the Generator to the Transfer Switch

Explains how to connect the generator's power output to the automatic transfer switch.

Utility Circuit Connection

Generator Power Connection

Battery

Initial Start-Up (No Load)

Operation

Features and Controls - 12 kW Generator

Identifies and describes the main components and controls of the 12kW generator unit.

Important Owners Considerations

Maintenance

Servicing the System

Generator Maintenance

Engine Maintenance

Checking Engine Oil Level

Changing Engine Oil and Oil Filter

Adjust Valve Lash

Electronic Governor System

Electronic Governing Check

Service the Spark Plugs

Engine Air Cleaner

Exhaust System Maintenance

Fuel System Maintenance

Alarms (Service Code Detection System)

Acknowledge and Reset the Alarms

Explains the procedure to acknowledge and reset system alarms using the control panel buttons.

Electrical System Maintenance

Wiring and Connections

Servicing the Battery

Replacing the Battery

Charging the Battery

Troubleshooting

Briggs & Stratton 12KW Specifications

General

Rated Watts	12000
Starting Watts	15000
Engine Brand	Briggs & Stratton
Power Output	12kW
Fuel Type	Gasoline
Outlet Types	4x 120V 20A, 1x 120/240V 30A, 1x 120/240V 50A
Engine Type	4-Cycle OHV
