6
Check if rigging clamp (not including the one inside) is damaged or not and if it stands ten
times weight as the equipment. Make sure the architecture can stand ten times weight as all
the equipment, clamps, wiring and other additional fixtures.
Screws for clamping must be fixed firmly. Take one M12 screw (Grade 8.8 or higher) to
clamp bracket, and then screw the nuts.

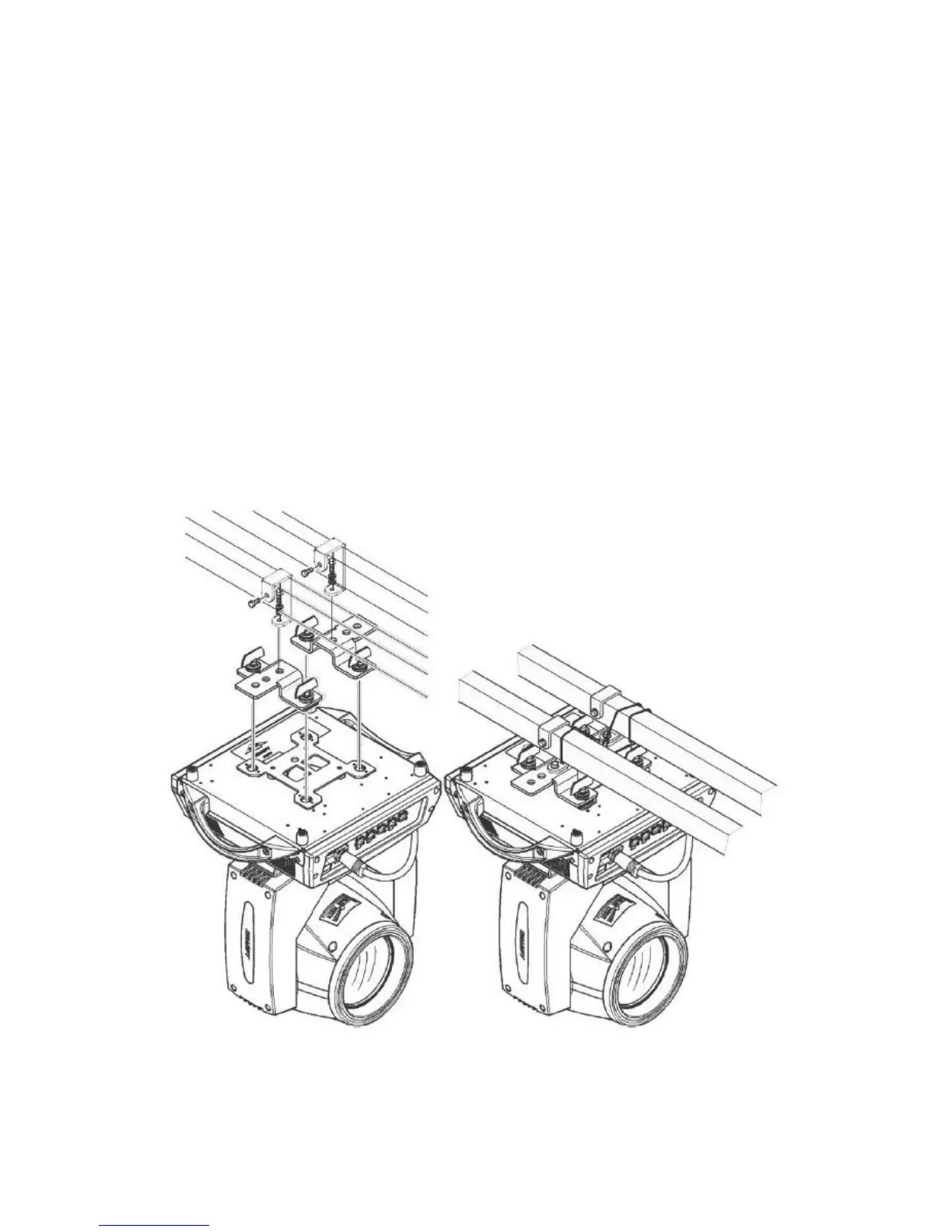

Level the two hanging points at the bottom of clamp. Insert fastener to the bottom, lock the
two levers by 1/4 rotating clockwise; then install another clamp.
Install on safety string which stands at least ten times weight as equipment. Terminal of the
accessory is designed for clamps.
Check if pan/tilt lock is unlocked or not. Keep the distance more than 1m from equipment to
flammable materials.
