BrightSign HD222, HD1022
8
All information provided in this reference manual applies to products under development. The characteristics and specifications of these products are subject to
change without notice. BrightSign assumes no obligation regarding future manufacturing unless otherwise agreed to in writing. © BrightSign LLC, 2015

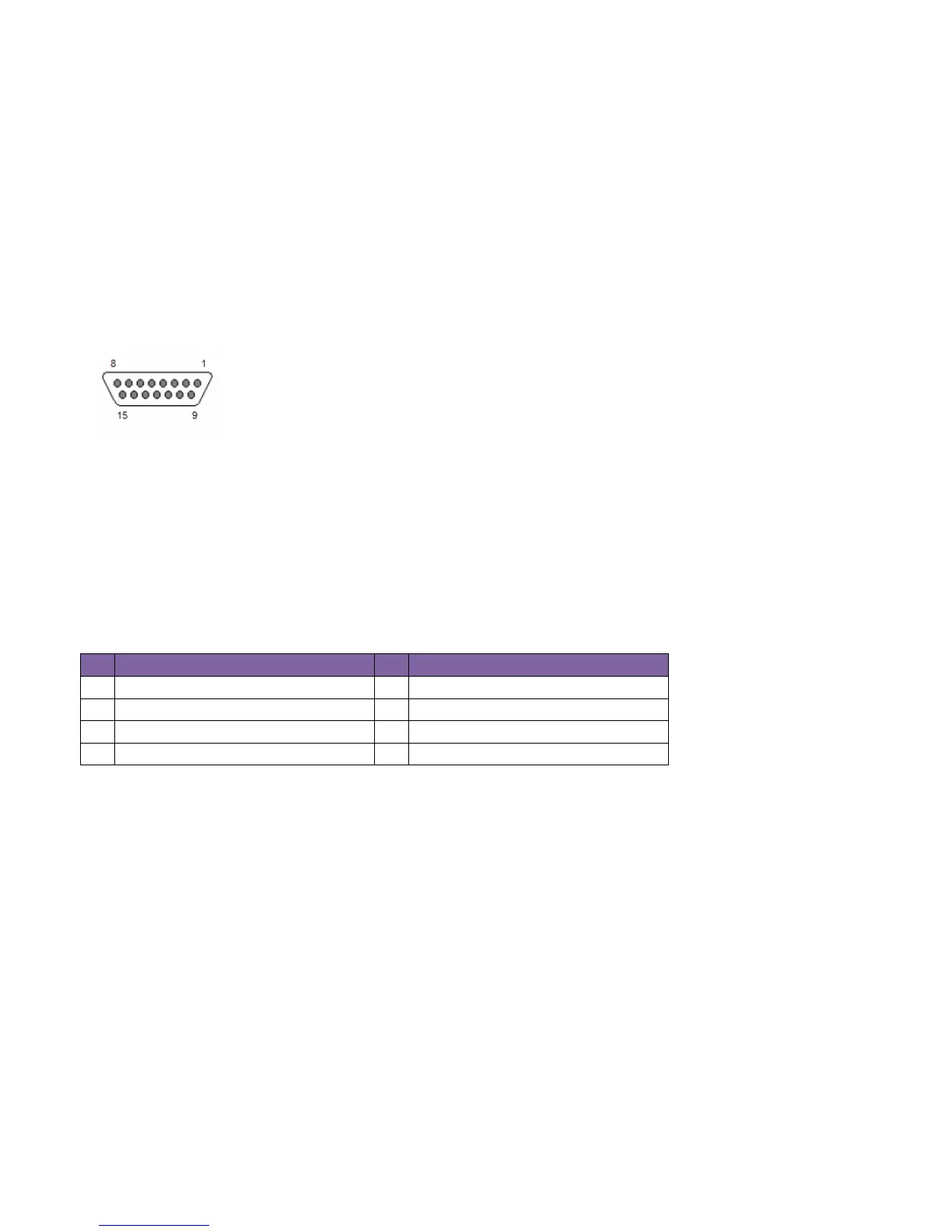

Here is the DA15 female as viewed from the front of the HD222 and HD1022:
A button/LED/IR board can be used to demonstrate the GPIO and IR functions on a BrightSign player. This board is built
by a third-party manufacturer and can be purchased upon request.
RJ45 Ethernet
The HD222 and HD1022 have an RJ45 connector for 10/100 base-T Ethernet. The maximum Ethernet-cable length is 100
meters.
The following table illustrates the pinout of the RJ45:
pin Description pin Description
1 TX+ 2 TX-
3 RX+ 4 RC to ground
5 RC to ground 6 RX-
7 RC to ground 8 RC to ground
USB
The HD1022 has a single USB 2.0 port, which is capable of transfer speeds up to 480 Mbit/s. The maximum length for a
USB cable is 5 meters. The following tables illustrate the pinout of the USB 2.0 host ports:
