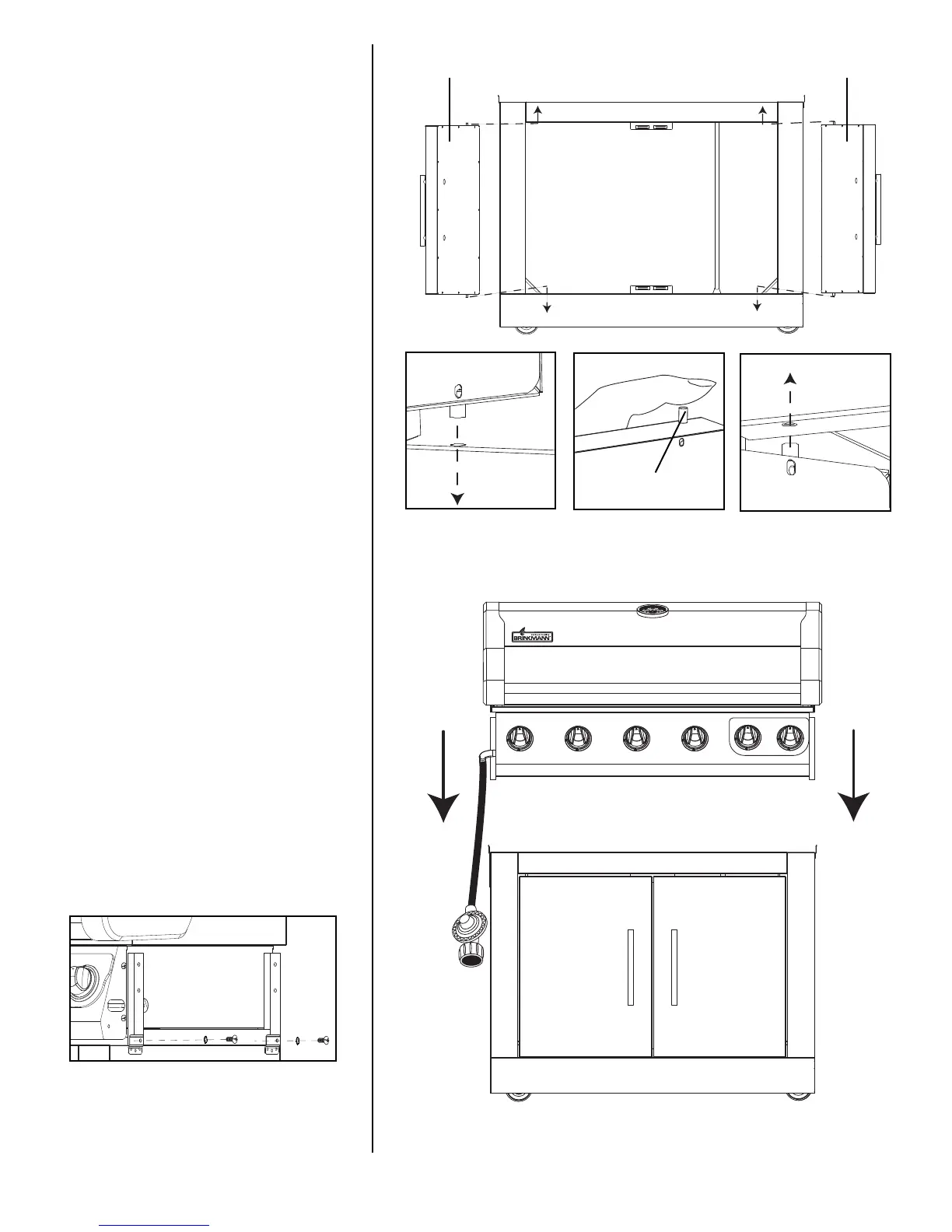

Step 7
To attach the doors to the cart
assembly, insert the lower door pin
into the hole on the cart base as
illustrated in Figure 1, then depress
the upper door spring pin in Figure
2 and align it with the hole in the
upper cart brace and slide into
place as illustrated in Figure 3.
Note: When performing Step 8,
lift grill body from front and
rear panels to avoid injury to
hands and fingers.
Step 8
With the help of a friend, place grill
body assembly on grill cart. Align
bolt holes located on the grill body
assembly, using four M6 X 12 mm
(black) bolts and four star washers.
25
Spring Pin
Left Door
Assembly
Right Door
Assembly
Figure 2Figure 1 Figure 3
