10
Step 4
Remove screw from each burner
"foot" using a screwdriver. Carefully
lift each crossover channel and
burner up and away from valve
nozzles. Set aside for later use.
Step 5

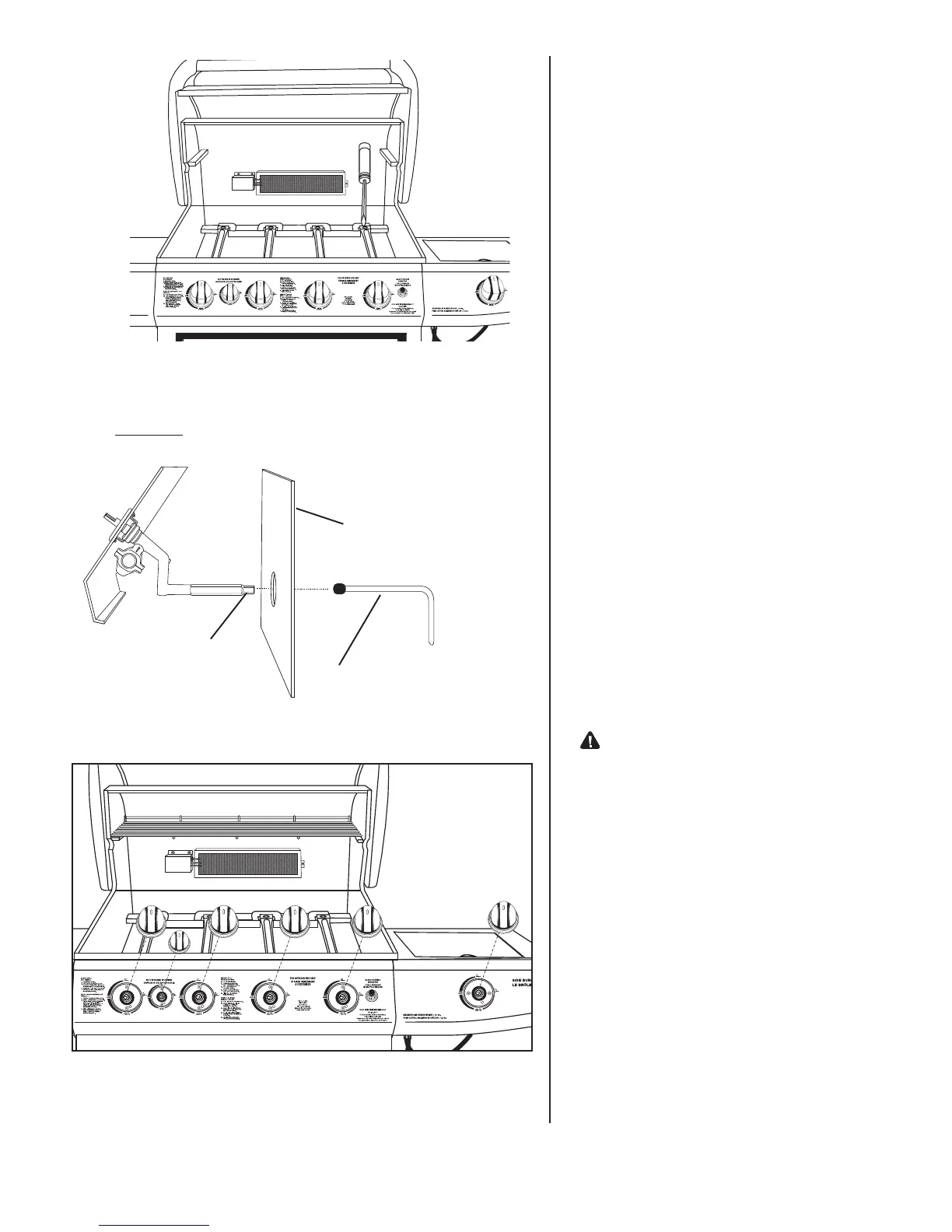

Use the gas orifice tool to remove the
LP brass orifice from main burner
valves through the hole on the firebox
front panel. Repeat this step for all
main and side burner valves in your
grill. The side burner valve orifice is
under the side shelf.
CAUTION: Some parts may
contain sharp edges. Wear
protective gloves if necessary.
Step 6
Remove all the control knobs from the
control panel and set aside for later
use.
LP Gas Orifice
Gas Orifice Tool
Side View
Firebox Front Panel
To Next Page
