Step 4
Remove screw from each burner
"foot" using a screwdriver. Carefully
lift each burner up and away from
valve openings. Set aside for later
use.
Step 5

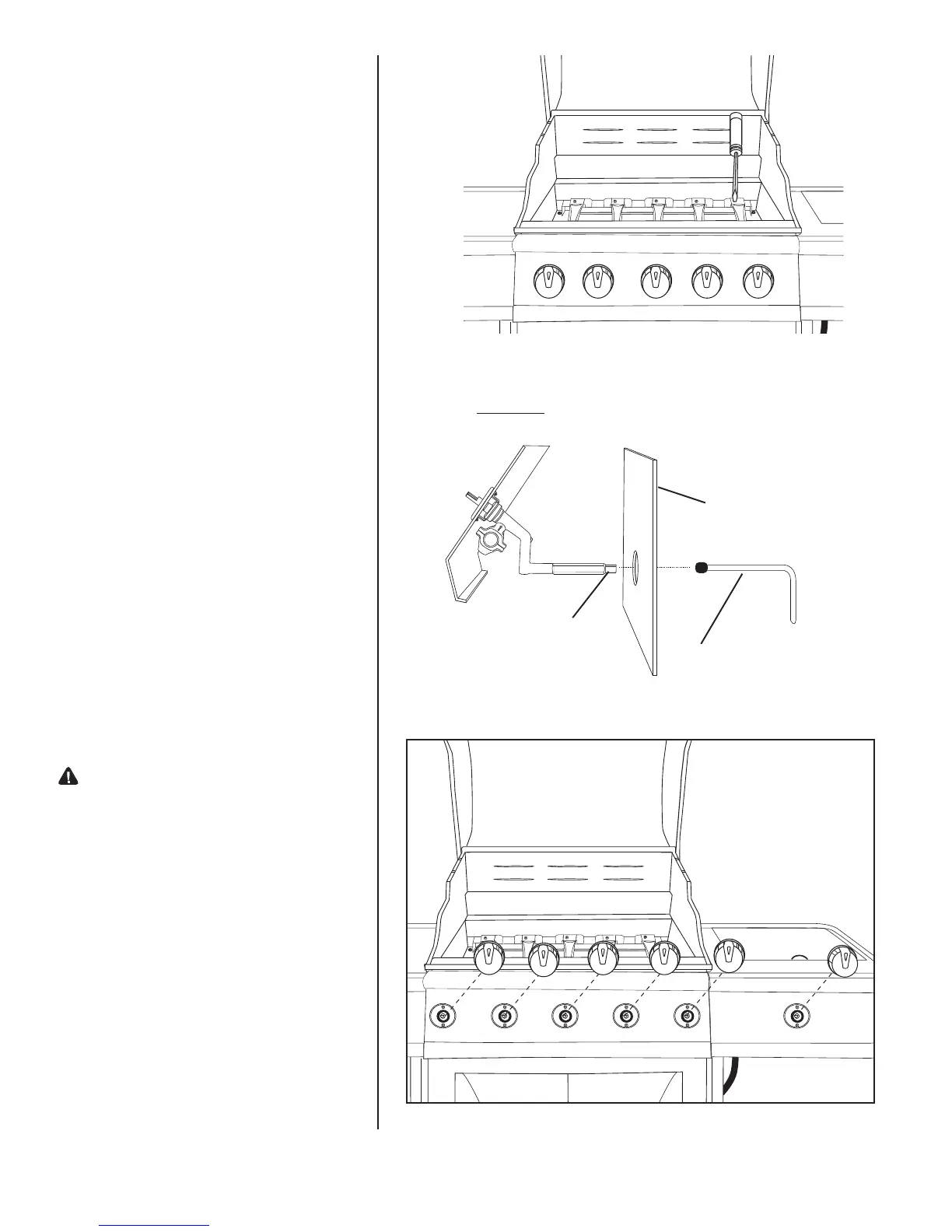

Use the gas orifice tool to remove the
LP brass orifice from main burner
valves through the hole on the firebox
front panel. Repeat this step for all
main and side burner valves in your
grill. The side burner valve orifice is
under the side shelf.
Note: All orifices of the grill are
double orifices type (LP gas
and natural gas). You only
remove the LP gas orifice
tip.
CAUTION: Some parts may
contain sharp edges. Wear protective
gloves if necessary.
Step 6
Remove all the control knobs from
the control panel and set aside for
later use.
LP Gas Orifice
Gas Orifice Tool
Side View
Firebox Front Panel
To Next Page
