12 1018959-B
==================================================================================================

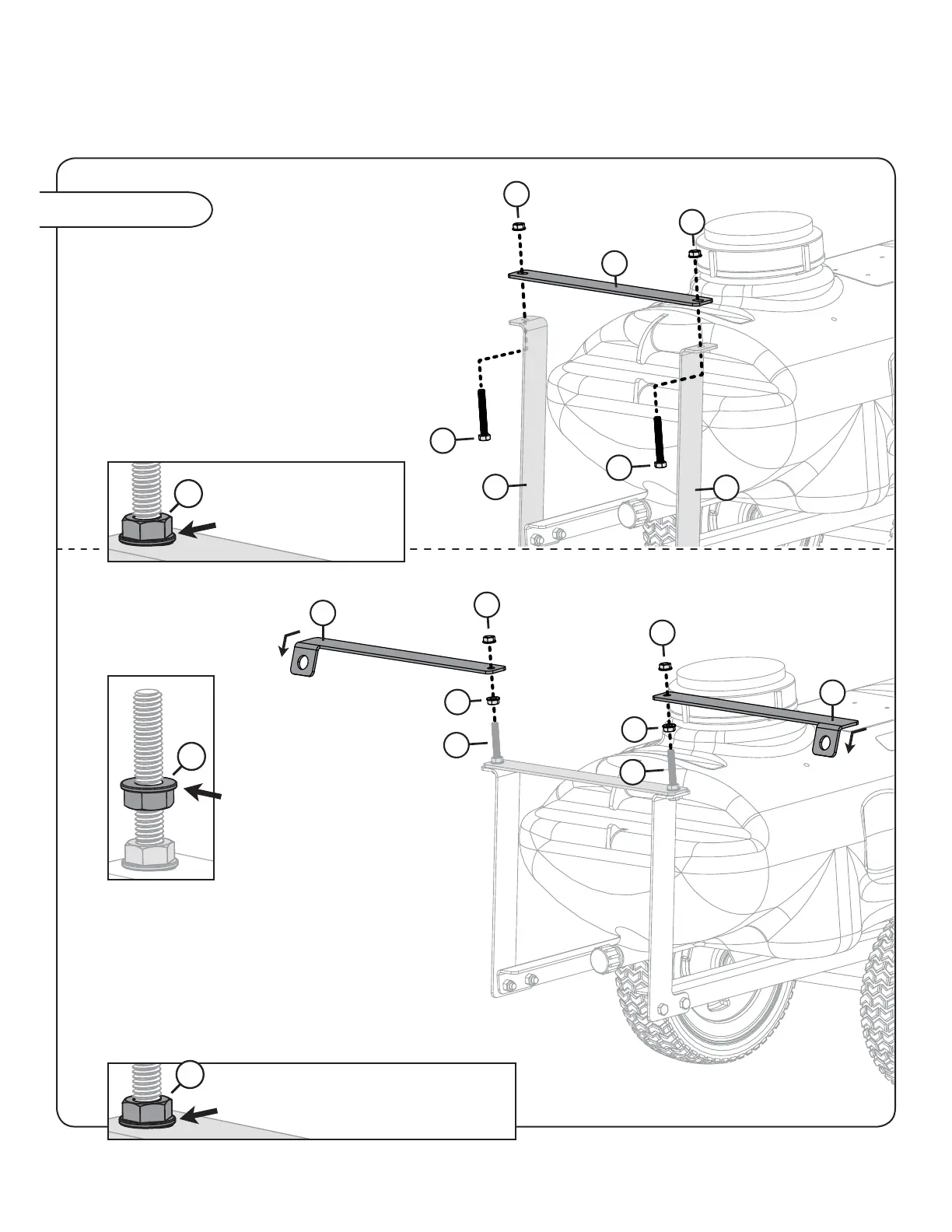

Assembly Step 7
A. Align the Cross Brace (14) across the two Boom
Supports (12 and 13) added on Step 6.
B. From below the lip of the boom supports (12 and 13),
run the 5/16 x 2-1/4” Bolt (55) up, as illustrated here.
Secure the Bolt (55) in place with a
Whizz Nut (56).
C. Add a Whizz Nut (56) to the Bolt (55).
Rotate the nut down, leaving about half the
length of the bolt exposed.
D. Add the Boom Arms (15 and 16) to the Bolts (55) with
the slightly angled tabs at the end pointed down, as
illustrated here.
Secure each Boom Arm with another Whizz Nut (56).
Adding the Cross Brace
Adding
the Boom Arms
ASSEMBLY
56
14
55
55
56
56
15
16
56
56
55
55
56
NOTE: The lip of the Whizz
Nut (56) needs to face down,
against the cross Brace (14).
56
NOTE: The lip of the last Whizz Nut (56) needs
to face down, against the boom arms.
56
56
NOTE: The lip of the Whizz
Nut (56) needs to be facing
up, toward the boom arms to
be added on this step.
12
13
