13 1018959-B
==================================================================================================
ASSEMBLY
x4

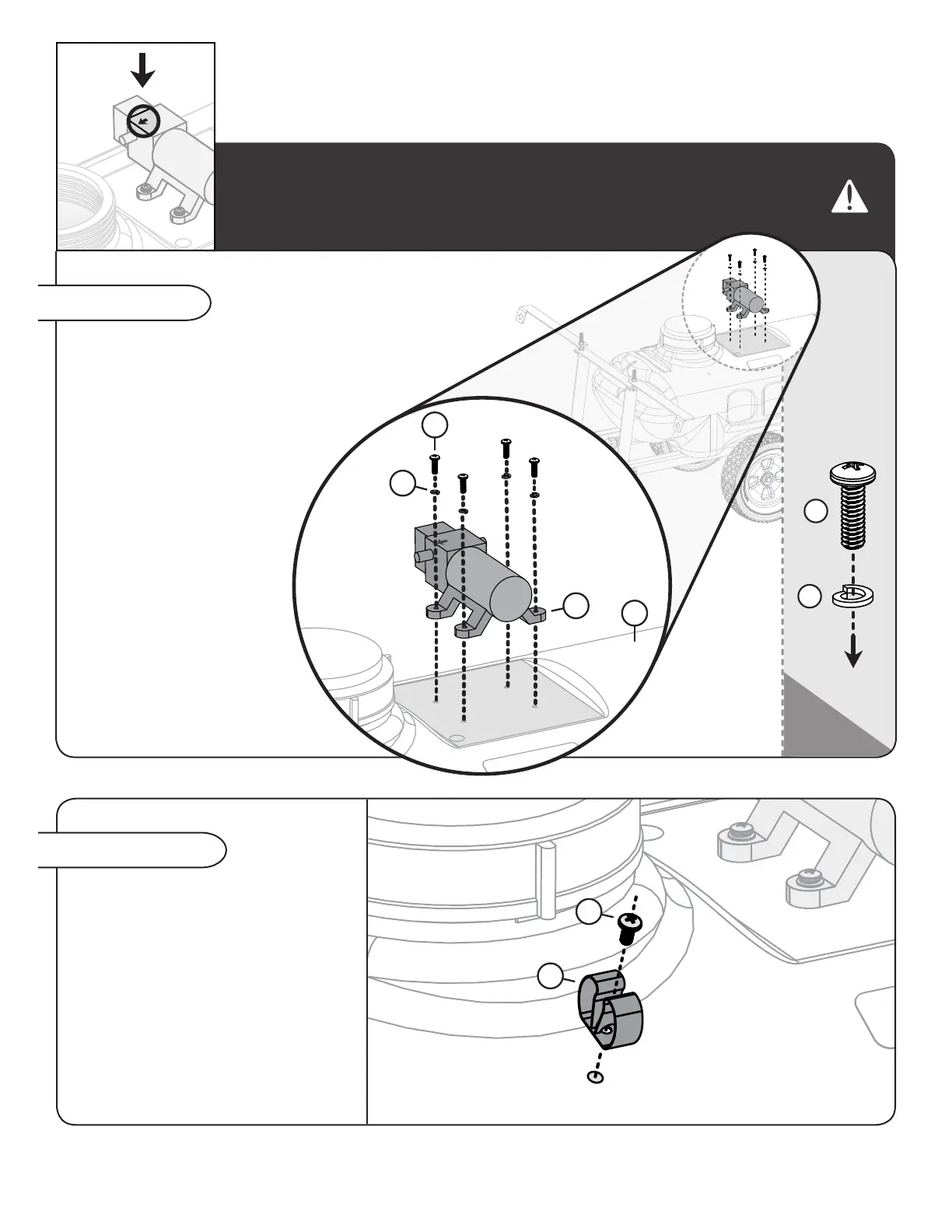

Assembly Step 8
Find the at panel beside the lid of the
Tank (3). Align the Pump (17) with the
four small openings on that at panel.
Add a #10 Lock Washer (52)
to four of the #10 x 5/8” Round
Head Screws (53).
Use these
four screws to
secure the Pump (17)
to the Tank (3).
Attaching the Pump
53
52
Assembly Step 9
Find the remaining small opening
beside the lid of the Tank (3).
Align the Wand Bracket (18) as
illustrated here.
Secure this bracket with a
small #10 x 3/8” Round Head
Screw (54).
Adding the Wand Bracket
54
18
NOTE: Alignment on this step is crucial for the sprayer to
function properly. The Pump has a very small arrow indicating
the Barb ow. This arrow needs to point to the tank lid.
53
3
17
52
