ASSEMBLY

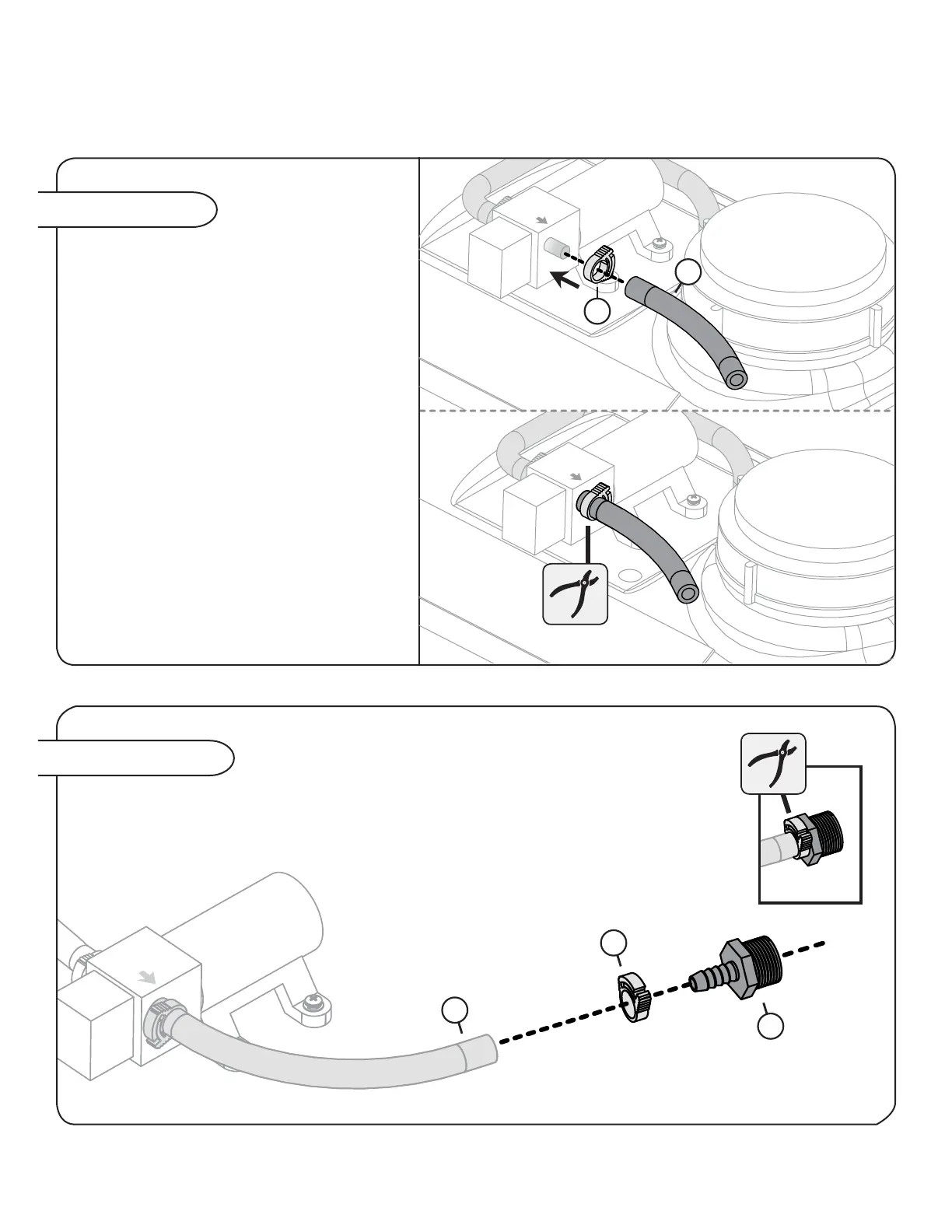

Assembly Step 12
Add a Clamp (28) on the end
of the 8” Hose (24).
Switching to the other side of the
pump (17), slide the hose onto the
remaining barb extending toward
the lid of the tank.
Note: Beside this barb, there
is a very small arrow noting
the direction of ow.
Move the clamp (28) close to the
pump (17) and squeeze it, securing
in place with pliers.
Adding the 8” Hose
24
28
English Manual
Assembly Step 13-A
31
28
24
Add a Clamp (28) over the other end of the 8” Hose (24) that was installed on step 12.
At the end of the hose, insert the barbed end of Fitting (31), then slide the clamp toward
the tting and secure in place with pliers.
