Brinly ST-152BH - ASSEMBLY; DUAL T-VALVE CONNECTION; HOSE ASSEMBLIES TO T-VALVE

17 1018959-B
==================================================================================================
32
31
x2

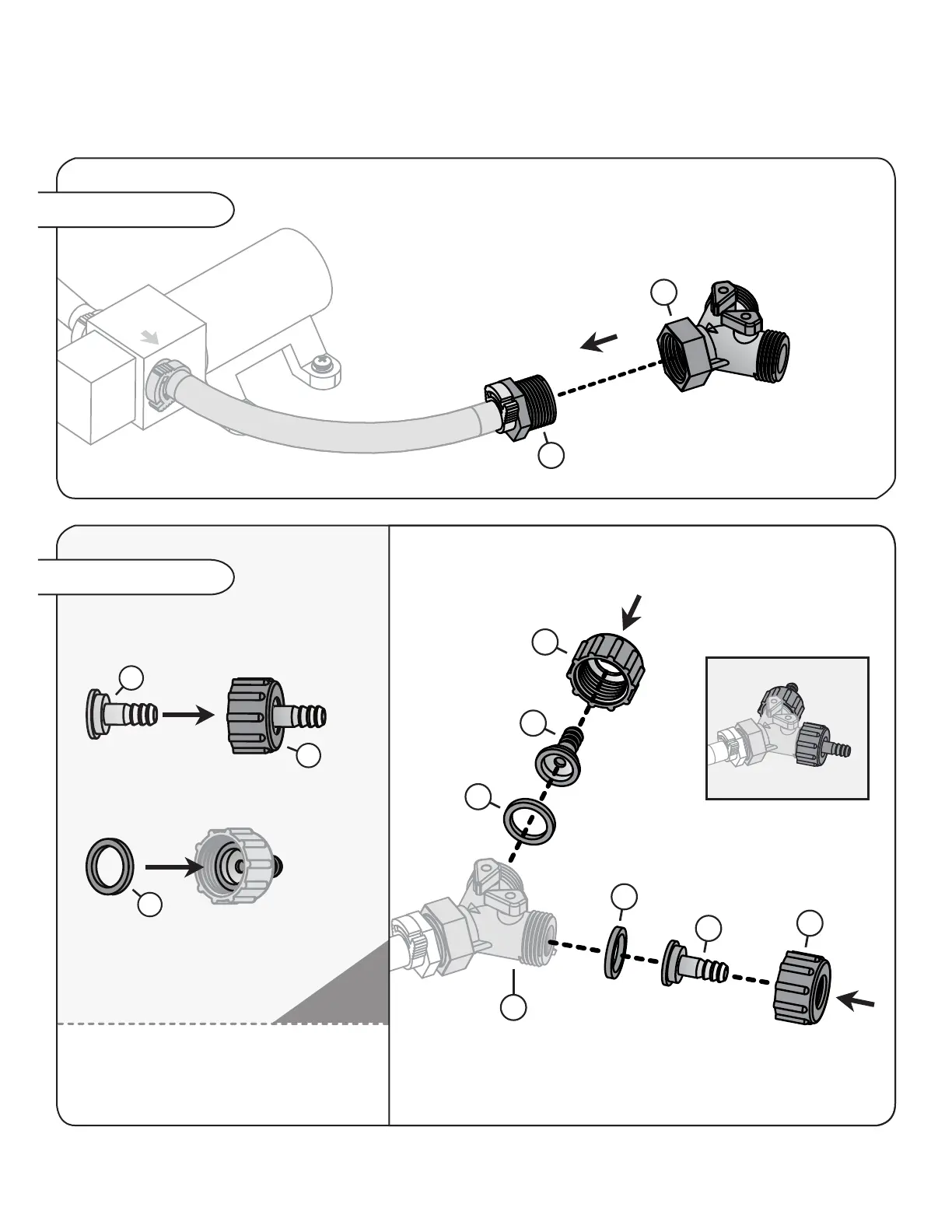

Insert a Hose Barb (33) through a
Hose Swivel Nut (34).
Attach the two hose assemblies
to the Dual T-Valve (32) as illustrated.
NOTE: Hand tighten only.
NOTE: If you are using a tool to
insert the washer (35), be careful to
not damage the threading inside
the swivel nut (34).
35
33
34
35
33
34
34
33
Follow with a 3/4” Vinyl
Washer (35).
35
32
ASSEMBLY
Assembly Step 13-B
Assembly Step 13-C
English Manual
Add the Dual T-Valve (32) to the Fitting (31) that was
installed on step 13-A. NOTE: Hand tighten only.
