Brinly ST-152BH - ASSEMBLY; ADDING SECOND 22 HOSE; CONNECTING SECOND 22 HOSE END

18 1018959-B
==================================================================================================
ASSEMBLY

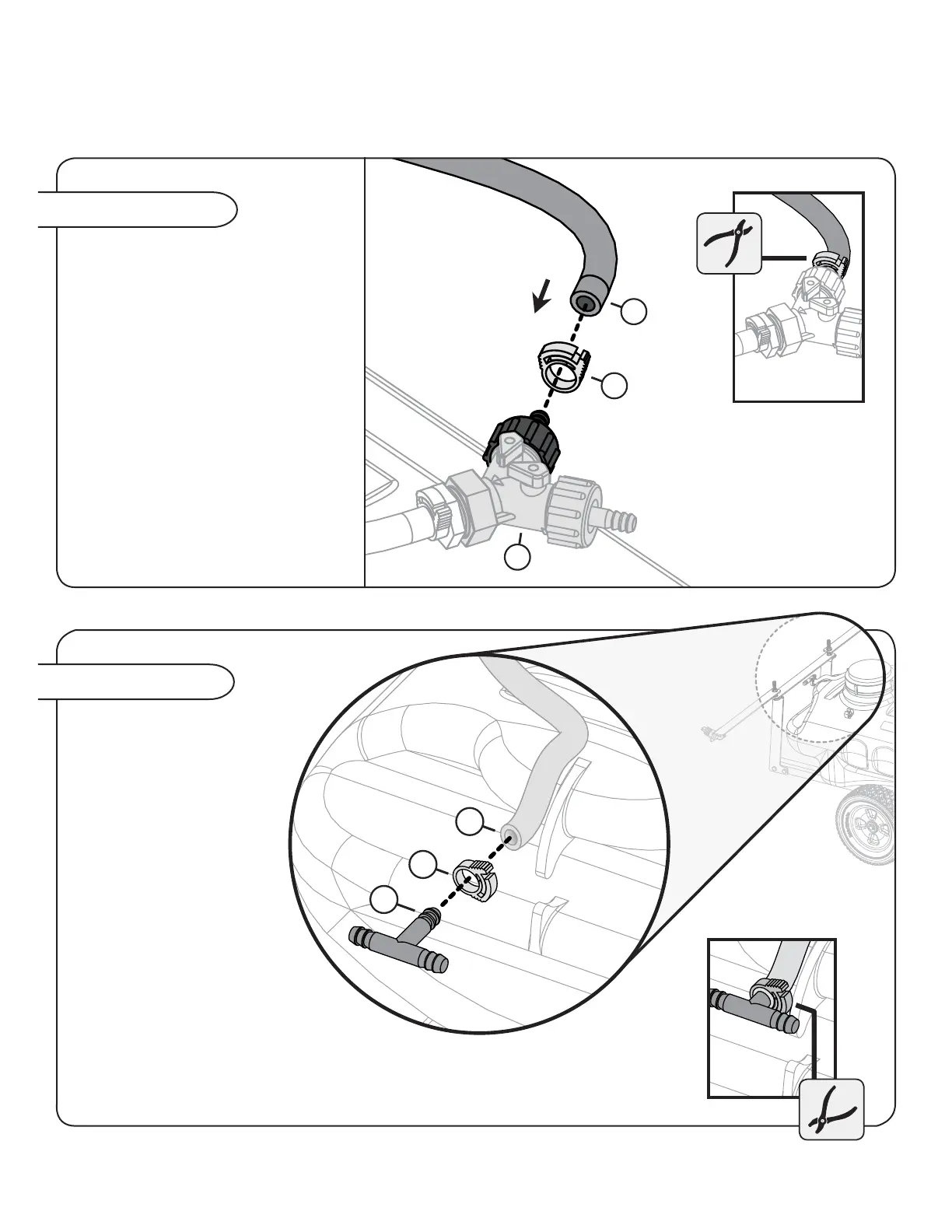

Assembly Step 14-A
Assembly Step 14-B
Add a Clamp (28) on
the end of a 22” Hose (26).
Connect hose to the LEFT side
barb of the Dual T-Valve (32).
Move the clamp (28) close
to the Valve (32) and squeeze it,
securing in place with pliers.
Move the other
end of the 22” Hose (26)
to the back of the
sprayer tank.
Add a Clamp (28) to
the end of the hose.
Insert the bottom
of the T-shaped Hose
Barb (36) into the hose.
Adding the Second 22” Hose
Adding the
Second 22” Hose
Move the clamp (28) close to the T-shaped Hose Barb (36) and secure in place with pliers.
28
32
26
28
26
36
