ASSEMBLY

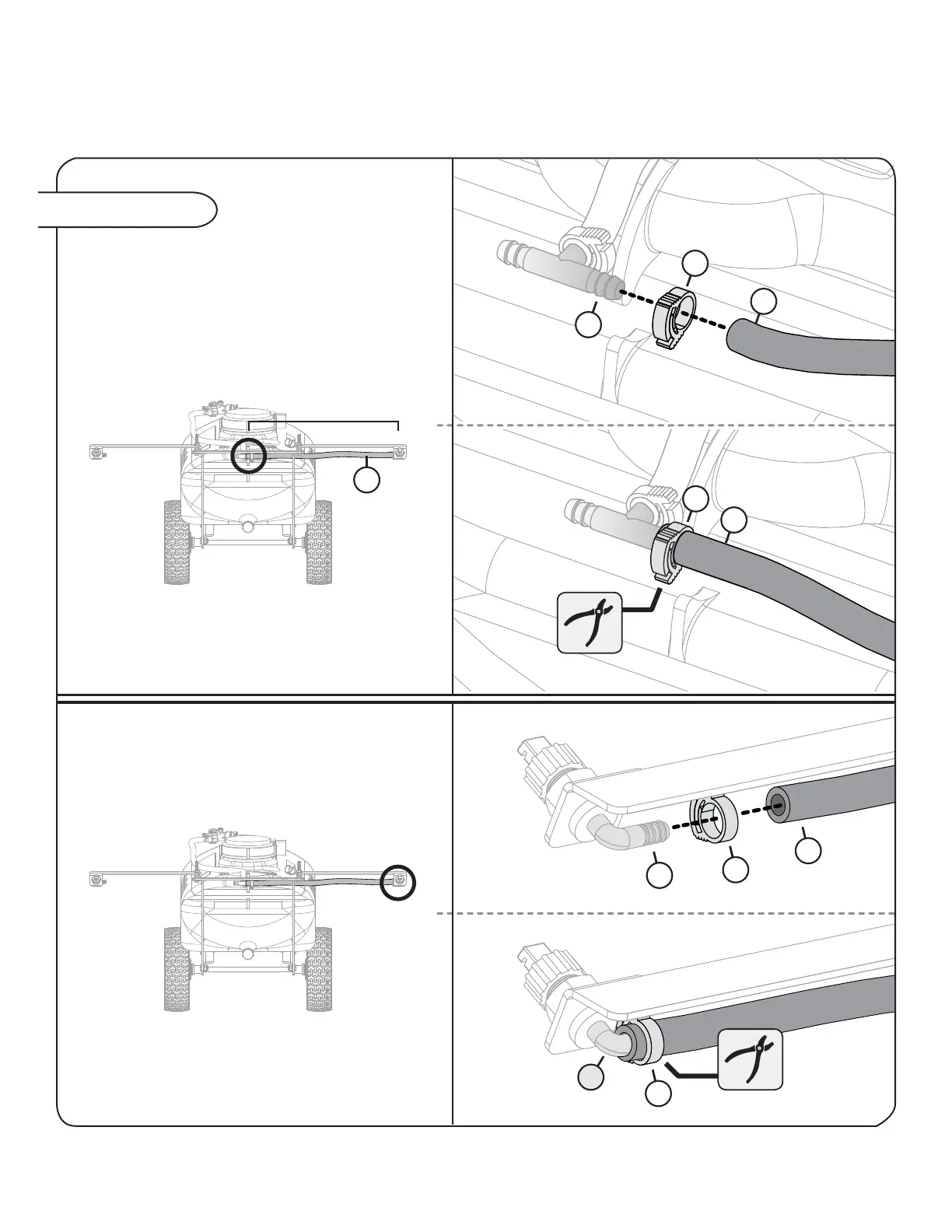

Assembly Step 15
Adding the Third 22” Hose
Add a clamp (28) on one end of the last 22”
Hose (26), then slide the hose over the RIGHT
side barb of the T-shaped extension (36) added
on Step 14-B.
Move the clamp (28) close to the T-Shaped
extension (36) and squeeze it, securing in place
with pliers.
Add a clamp (28) on the other end of the hose (26),
then slide the hose over the 90º Nozzle Body (19)
attached to the boom arm as illustrated.
Move the clamp (28) close to the 90º Nozzle
Body (19) and squeeze it, securing in place
with pliers.
English Manual
22” Hose
26
