Brinly ST-152BH - ASSEMBLY; ADDING 17 HOSE

20 1018959-B
==================================================================================================
25
28
36
ASSEMBLY

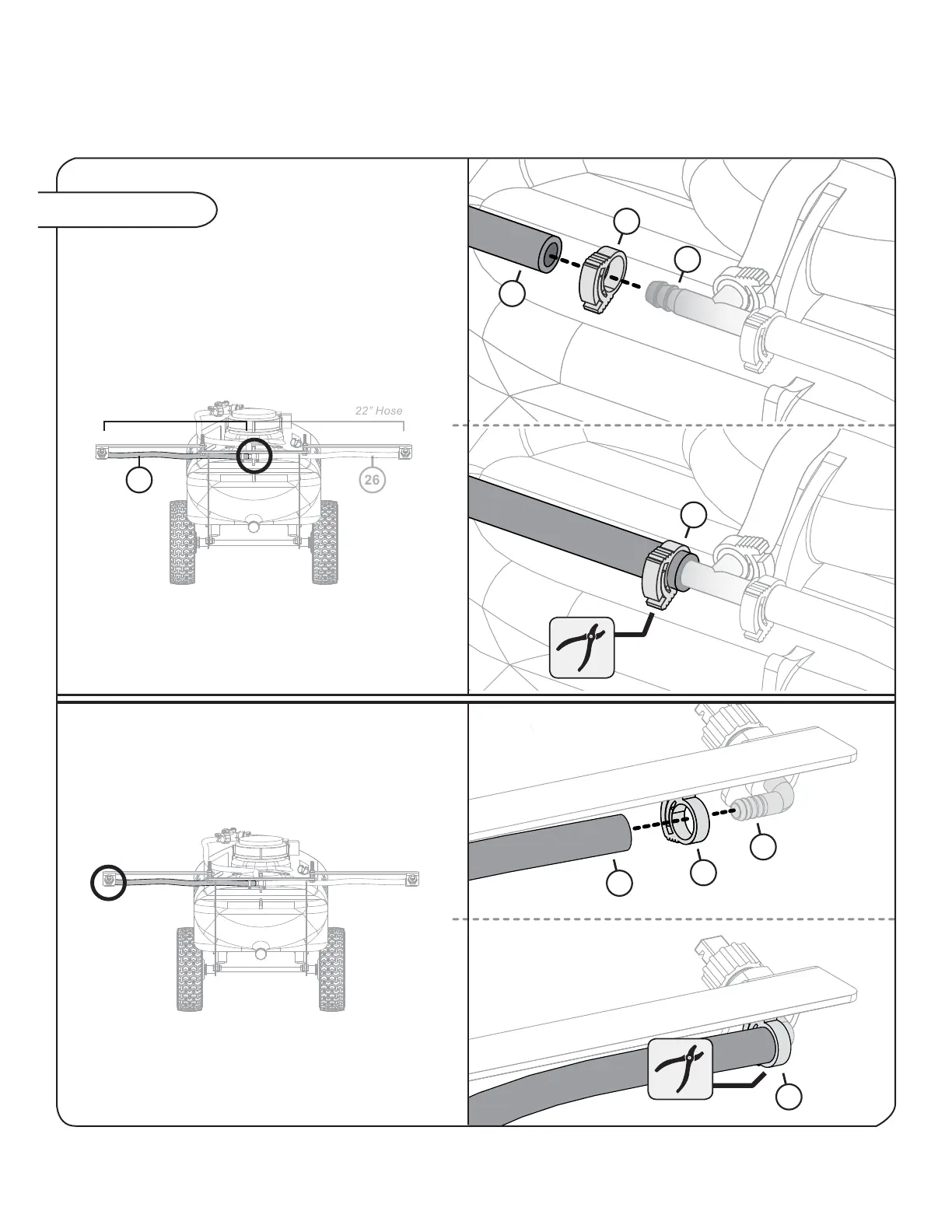

Assembly Step 16
Adding the 17” Hose
Add a clamp (28) on one end of the last 17” Hose
(25), then slide the hose over the LEFT side barb
of the T-shaped extension (36) added on Step
14-B.
Move the clamp (28) close to the T-Shaped
extension (36) and squeeze it, securing in place
with pliers.
Add a clamp (28) on the other end of the hose (25),
then slide the hose over the 90º Nozzle Body (19)
attached to the boom arm as illustrated.
Move the clamp (28) close to the
90º Nozzle Body (19) and squeeze it, securing
in place with pliers.
19
25
28
28
28
English Manual
22” Hose
26
25
17” Hose
