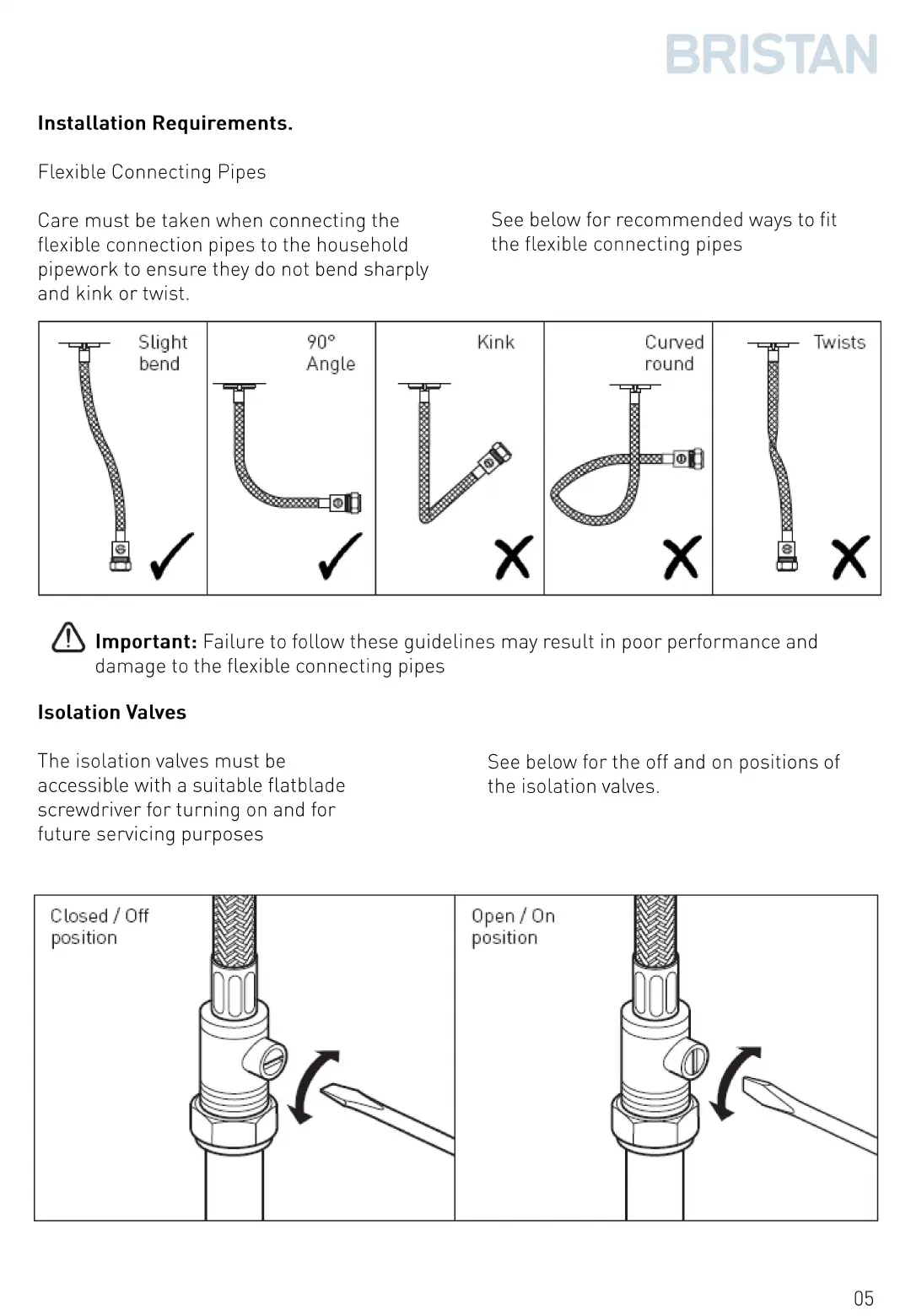

Installation Requirements.
Flexible Connecting Pipes
Care must be taken when connecting the
flexible connection pipes to the household
pipework to ensure they do not bend sharply
and kink or twist .
S light
bend
✓
90°
Angle
✓
BRISTAN
See below for recommended ways to fit
the flexible connecting pipes
Kink
X
Curved
round
l \iv ists
X
l!) Important: Failure to follow these guidelines may result in poor performance and
damage to the flexible connecting pipes
Isolation Valves
The isolation valves must be
accessible with a suitable flatblade
screwdriver for turning on and for
future servicing purposes
C lo s ed / Off
po s ition
See below for the off and on positions of
the isolation valves.
Open / On
po siti on
05
