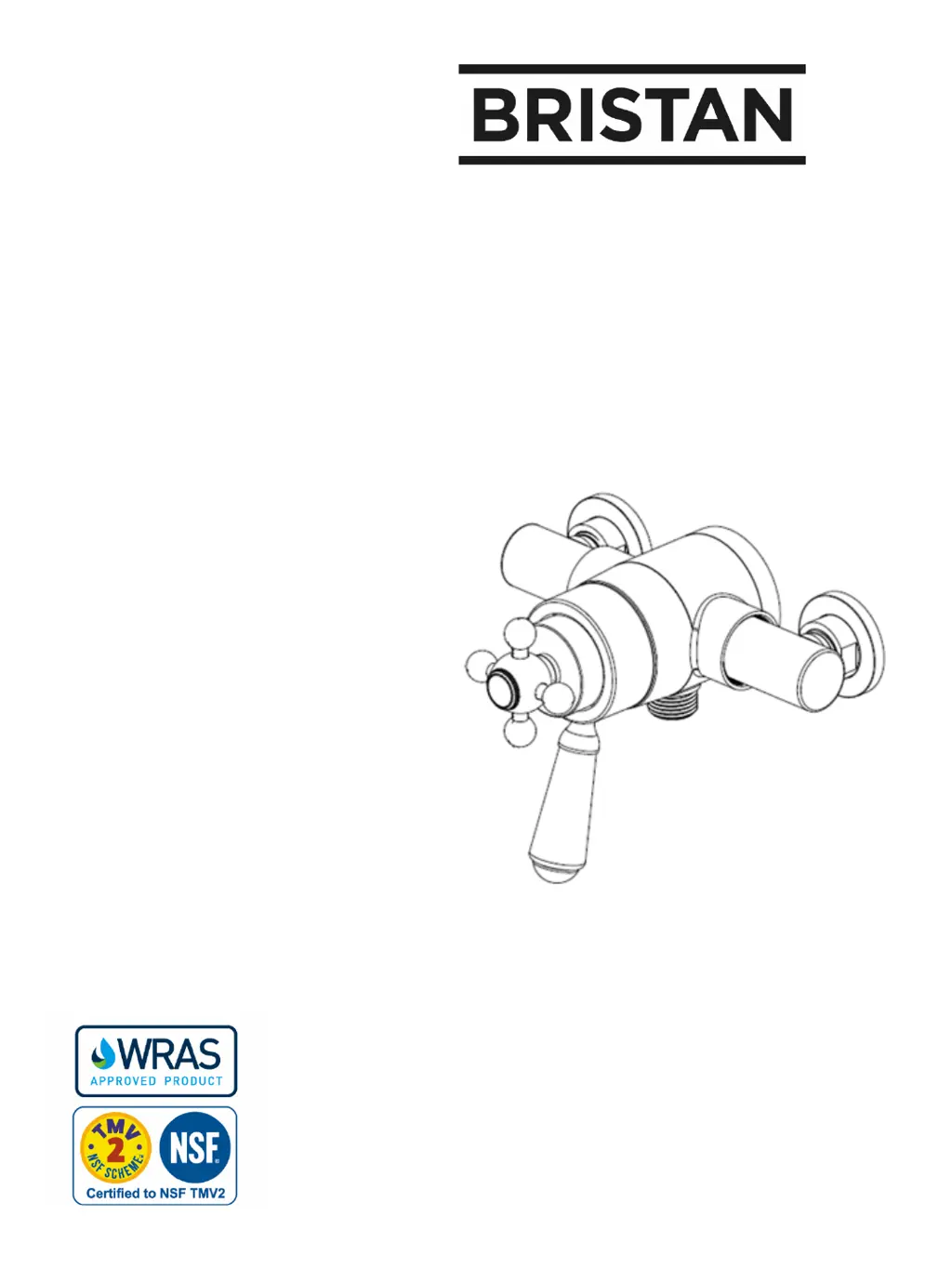

Installation Instructions
and User Guide
Regency Thermostatic Surface
Mounted Shower Valve with
Adjustable or Rigid Riser
Models covered: R2 SHXAR C &
R2 SHXRR C
Please keep this booklet for future
Reference.
Installer, when you have read these
Instructions, please ensure you leave them
with the user.

Table of Contents

Questions and Answers

  • P
    Patricia GreenJul 29, 2025
    Why is there no flow or low flow rate with varying temperatures in my Bristan Plumbing Product?
    • C
      Cameron RodriguezJul 30, 2025
      Several factors can cause this issue. Start by checking the showerhead, hose, and filters for any blockages and clean them if necessary. Ensure that the stop or service valve in the water supply pipework to the shower valve is fully open. If you have an instantaneous water heater, the flow rate or pressure may be too low, causing it to cycle on and off. If the water pressure is affected by other outlets, avoid using other water outlets while showering. Also, verify that the water pressure is sufficient. Additionally, airlocks or blockages in the pipework can cause these symptoms, so flush the pipework. Finally, confirm that both hot and cold water are reaching the shower valve, as the valve will shut down if either supply fails.
  • R
    Randy DavisAug 6, 2025
    Why is there only hot or cold water coming from my Bristan R2 SHXRR C shower valve outlet?
    • S
      Steven McdonaldAug 7, 2025
      This can happen if the inlet water supplies are reversed, meaning the hot and cold water connections are swapped. Check that the connections are correct: hot on the left and cold on the right when viewed from the front, and rework the pipework if necessary. Also, a partially blocked inlet filter can cause this, so clean or replace it, and flush through the pipework before refitting.
  • C
    Christopher AshleyAug 13, 2025
    Why is the water temperature too cold on my Bristan R2 SHXRR C, even with the maximum temperature set?
    • S
      Steven WebsterAug 13, 2025
      The issue could be due to several reasons. If the hot water temperature is less than 10ºC above the required blend temperature, adjust the hot water temperature or wait for the water to reheat if a stored system is used. If you have an instantaneous water heater, it might not be igniting because the water flow rate or pressure is too low. In this case, increase the water flow or pressure through the system and check the cartridge inlet filters, cleaning or replacing them as needed.
  • O
    okleinAug 21, 2025
    Why is my Bristan R2 SHXRR C showerhead leaking?
    • A
      Amanda HuffmanAug 21, 2025
      A short period of leaking after turning off the shower is normal; adjust the angle of the showerhead in the holder to vary draining time. If the shower control valve isn't closing fully, possibly due to debris, remove and check the shower control valve assembly. Damaged flow control valve seals can also cause leaking; check their condition and replace them if necessary.

Summary

Important Safety Information

General Information

Product Features

On;Off Control

Explains how to turn the shower on and off using the control.

Temperature Control

Explains how to adjust the water temperature using the control.

Specifications

Dimensions

Pack Contents R2 SHXAR C

Pack Contents R2 SHXRR C

Installation Requirements

Gravity Fed Systems

Details requirements for gravity fed hot and cold and hot and mains cold water systems.

Other Supply Systems

Details requirements for instantaneous water heaters, unvented, and pumped systems.

Regulatory Compliance

Outlines installation requirements for water supply regulations and backflow protection.

Conditions of Use

Specifies operating conditions and designations for Type 2 thermostatic mixing valves.

Flow Regulators

Prior to Installation

Installation Shower Valve

Inlet Positions

Describes how to correctly position the hot and cold water inlets.

Attach Backplate to Wall

Details the process of attaching the backplate to the wall.

Attach Shower Valve

Explains how to connect the shower valve to the backplate and water supply.

Installation Adjustable Riser

Mark the Position

Guides on marking the wall for riser bracket placement.

Attach Wall Bracket Fixings

Details attaching the wall brackets securely to the wall.

Insert Riser Rail

Instructions for inserting the riser rail through the wall brackets.

Fit Top Wall Bracket

Describes fitting the top wall bracket onto the riser rail.

Fit the Riser to the Wall

Securing the riser rail to the wall using the brackets.

Fit Shower Hose

Connecting the shower hose to the valve and handset.

Installation Rigid Riser

Mark the Position

Guides on marking the wall for rigid riser bracket placement.

Drill Suitable Holes

Details drilling holes and attaching fixing brackets to the wall.

Insert Bottom Rail

Instructions for connecting the bottom riser to the shower valve outlet.

Fit the Riser Connection

Connecting the top and bottom riser sections.

Secure the Rigid Riser Arm

Securing the rigid riser arm to the wall.

Connect Swivel Joint

Connecting the swivel joint for the shower rose.

Fit the Shower Rose

Attaching the shower rose to the swivel joint.

Operation

On;Off Control

Explains how to turn the shower on and off.

Temperature Control

Explains how to adjust the water temperature.

Riser Rail Adjustment

Describes how to adjust the height and angle of the riser rail handset.

Commissioning

Maintenance

General Cleaning

Provides instructions for general cleaning and care of the fitting.

Showerhead Cleaning

Details how to clean the showerhead nozzles to prevent scale build-up.

Cartridge Maintenance

Outlines steps for servicing the shower valve cartridge.

Adjusting the Temperature

Explains how to re-calibrate the shower valve temperature setting.

In-Service Testing

Testing Procedure

Details the steps for monitoring and recording the thermostatic mixing valve's performance.

Testing Frequency

Provides guidance on the frequency of in-service testing and test intervals.

Troubleshooting

Guarantee

Notes
