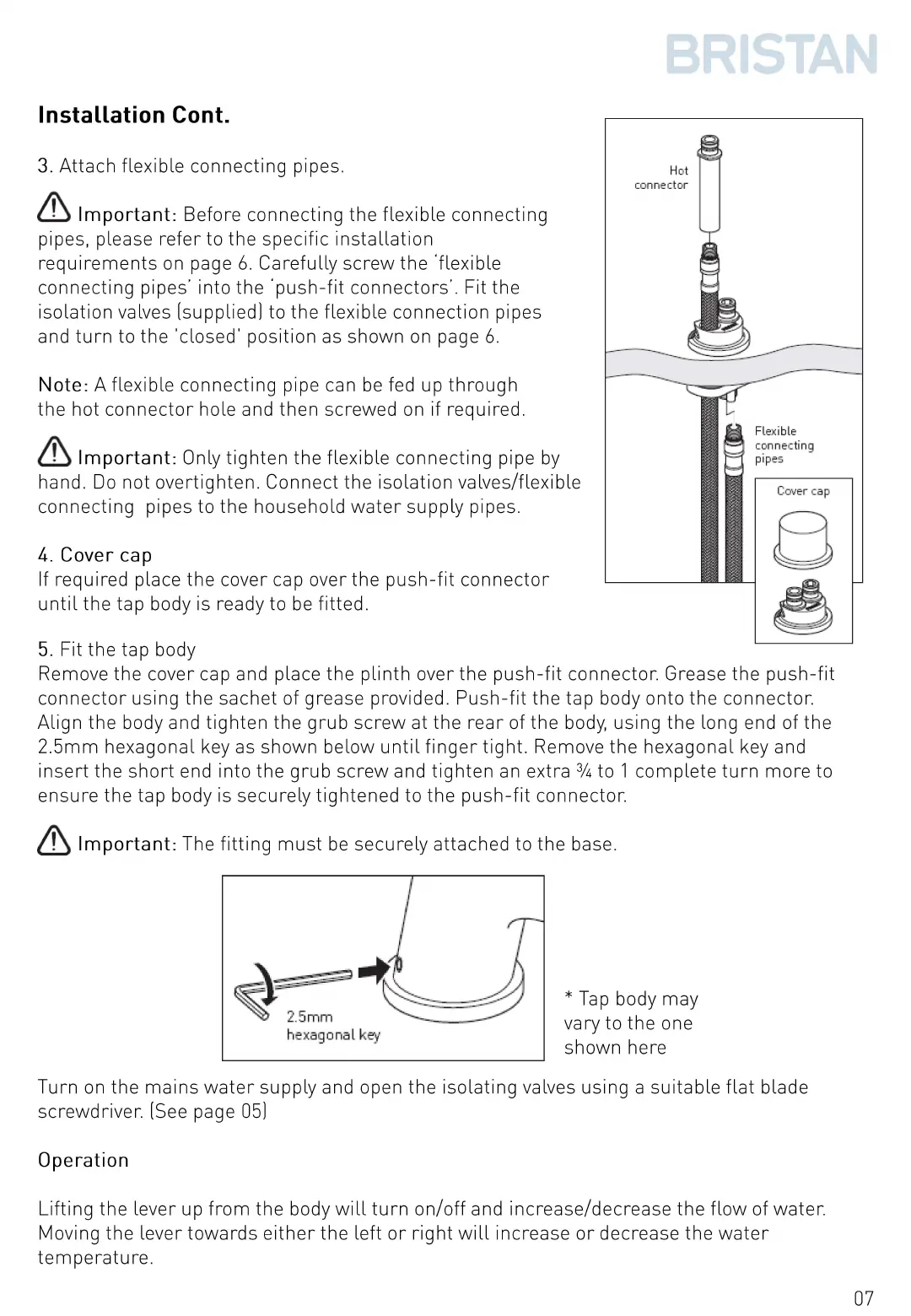

BRISTAN
Installation Cont.
3.
Attach flexible connecting pipes.
&
Important
: Before connecting the flexible connecting
pipes, please
refer
to the specific
installation
requirements
on
page 6. Carefully
screw
the "flexible
connecting pipes· into the
'push-fit
connectors
·. Fit the
isolation valves [supplied) to the flexible connection pipes
and
turn
to the 'closed' position as shown
on
page 6.
Note
: A flexible connecting pipe can
be
fed up
through
the hot
connector
hole and then screwed
on
if required .
&
Important
: Only
tighten
the flexible connecting pipe
by
hand.
Do
not overtighten. Connect the isolation valves/flexible
connecting pipes to the household
water
supply pipes.
4. Cover cap
If required place the cover cap over the
push-fit
connector
until
the tap body is ready to
be
fitted.
5.
Fit the tap body
Fl
ex
ibl
e
co
nn
ec
tin
g
pi
pes
C
ov
er cap
Remove the cover cap and place the
plinth
over the
push-fit
connector
. Grease the
push-fit
connector
using the sachet of grease provided.
Push-fit
the tap body onto the
connector
.
Align the body and
tighten
the
grub
screw
at the
rear
of the
body,
using the long end of the
2.
5mm
hexagonal key as shown below
until
finger
tight. Remove the hexagonal key and
insert
the
short
end into the
grub
screw
and
tighten
an
extra¾
to 1
complete
turn
more
to
ensure the tap body is securely
tightened
to the
push-fit
connector
.
&
Important
: The
fitting
must
be
securely attached to the base.
hexagonal
key
*
Tap
body may
vary to the one
shown here
Turn
on
the
mains
water
supply and open the isolating valves using a suitable
flat
blade
screwdriver
. [See page
05)
Operation
Lifting the lever up
from
the body
will
turn
on/off
and increase/decrease the
flow
of water.
Moving the lever
towards
either
the left
or
right
will
increase
or
decrease the
water
temperature
.
07
