8
3.0 Classic 2PWN
Model Guidelines

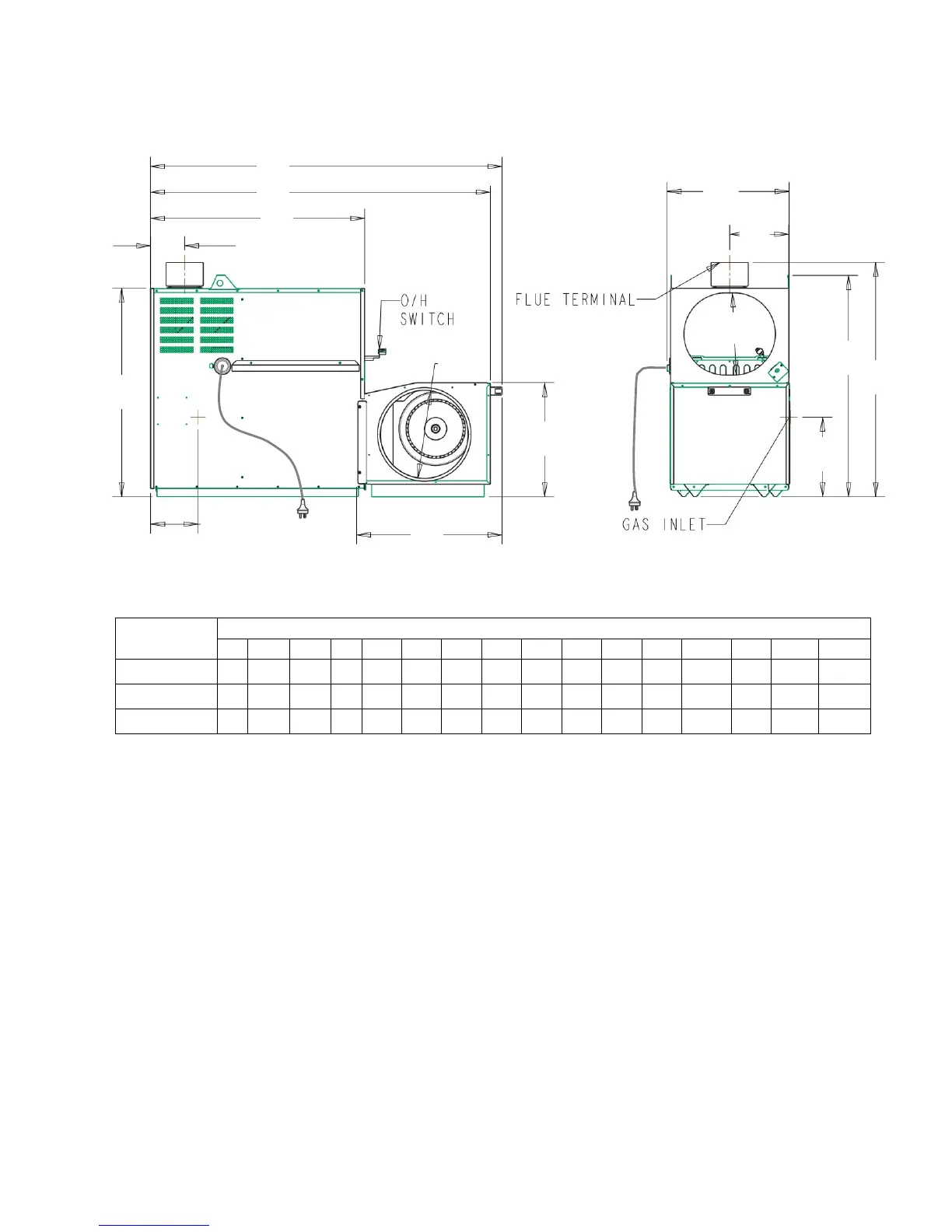

3.1 Heater Dimension
s 2PWN15, 2PWN20 & 2PWN20 XA
Model
Dimension [mm]
A
B
C
D
E
F
G
H
I
J
K
L
M
øN
øRa
øSa
2PWN15
704
1147
412
723
115
160
385
491
200
269
747
791
1187
125
300
300
2PWN20
704
1147
412
723
115
160
385
491
200
269
747
791
1187
125
300
300
2PWN20 X
A
704
1147
412
723
115
160
385
491
200
269
747
791
1187
125
350
350
Table 2:
2PWN
15, 20 & 20XA unit dim
ensions
Diagram 4.
H
A
B
C
D
J
K
G
L
E
F
øN
I
øRa
øSa
M
10
12
Table of Contents
Default Chapter
2
Safety Warnings
2
Table of Contents
3
1 General Guidelines
4
Inspection
4
Unpacking the Heater
4
Unloading or Lifting the Heater
4
Gas Inlet Connection
4
Electrical Power Supply
5
Installation of Duct Connection Pops
5
Heater Positioning
5
Installation of External Heaters
5
Installation of Internal Heaters
5
Installation of Internal Heaters in a Room, Enclosure, Residential Garage or Plant Room
6
2 Classic BX3 Model Guidelines
7
Heater Dimensions
7
Service Clearances
8
Flue Terminal Clearances
8
Orientation of Flue Terminal
9
Area to Cut in the Wall
10
Installation of Flashing
10
3 Classic 2PWN Model Guidelines
11
Heater Dimensions 2PWN15, 2PWN20 & 2PWN20 XA
11
Heater Dimensions 2PWN26 & 2PWN26 XA
12
Service Clearances
12
Splitting Classic 2PWN Heaters
13
4 Classic 2PWN Model Guidelines
13
Heater Dimensions DF320 XA, UF320 XA & UP326 XA
13
Installation Alternatives for All DF3 & UF3 Models
14
Service Clearances
14
Ventilation for Inside Heaters
14
5 Internal Flueing Instructions
15
6 Fan Speed Setting
16
7 Ducting Information
16
8 Outlet Guide
17
9 Thermostat Installation
18
Wiring the Manual or Programmable Thermostat (HEATING ONLY)
19
Wiring the Brivis Programmable Thermostat (ADD-ON & FAN ONLY)
20
10 Commissioning and Control Settings
21
Commissioning Instructions
21
Start & Check Supply Pressure
21
Start & Check Burner Pressure
21
Setting the Fan Speed
22
Final Checks
22
11 Technical Specifications
23
