2.0 Compact Classic Model Guidelines
2.1 Heater Dimensions

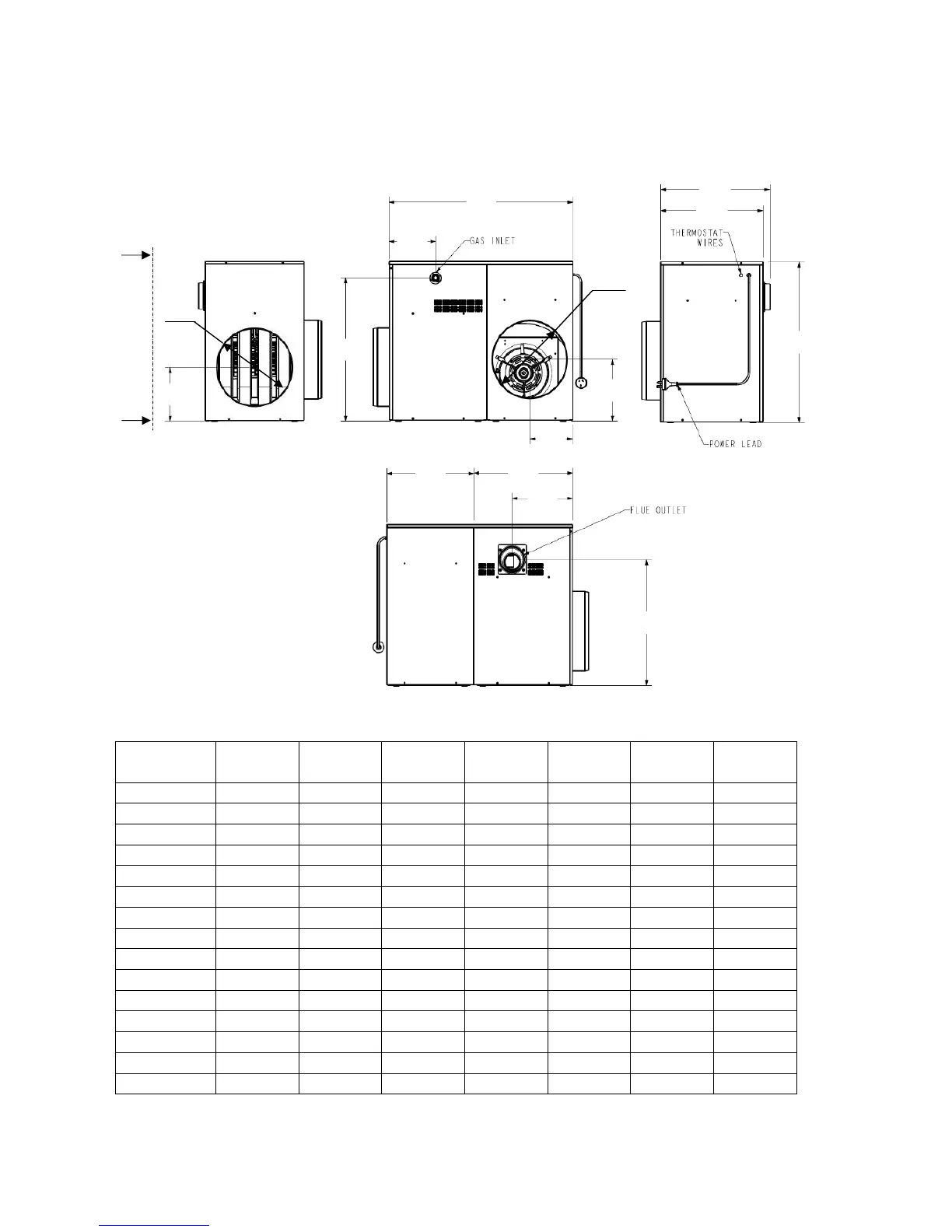

Diagram 1.
Table 1: Compact Classic unit dimensions
Dimension
[mm]
CC315 CC320 CC320XA CC325 CC325XA CC330 CC330XA
A
204 204 204 204 204 239 239
B
542 542 542 542 542 577 577
C
183 183 183 183 183 183 183
D
724 724 724 724 724 843 843
E
168 168 168 168 168 229 229
F
233 233 233 233 233 233 233
G
411 411 411 411 411 564 564
H
385 385 385 385 385 537 537
I
604 604 604 604 604 640 640
J
338 338 338 338 338 457 457
K
386 386 386 386 386 386 386
L
236 236 236 236 236 236 236
M
474 474 474 474 474 509 509
øSa
300 300 350 300 350 350 400
øRa
300 300 350 300 350 350 400
View A1-A1
J
K
L
M
I
G
H
A1
A1
A
øSa
B
C
D
E
F
øRa
Ø100mm
