2.0 Classic BX3 Model Guidelines
2.1 Heater Dimensions

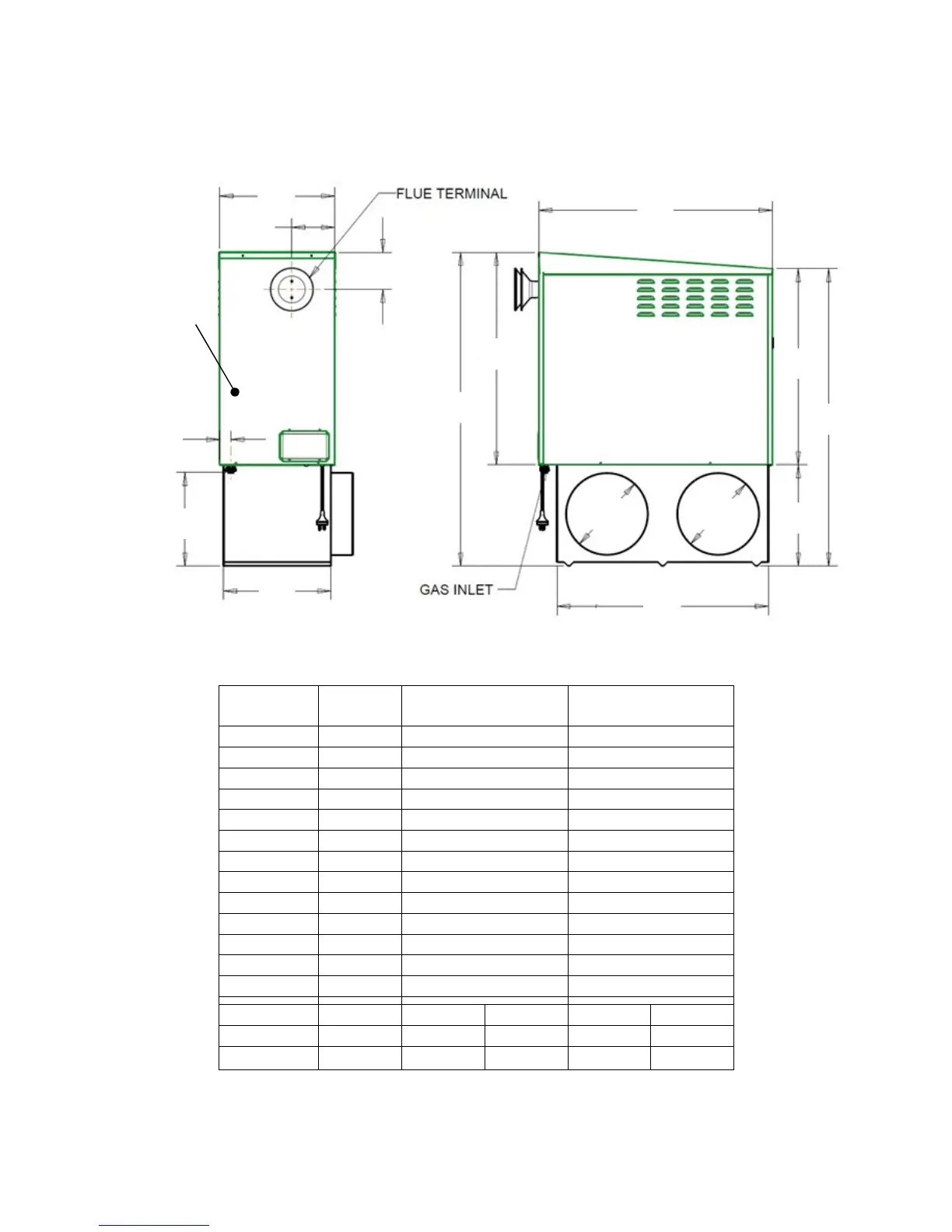

Diagram 1.
Dimension
[mm]
BX315 BX320 BX326
A
775 775 866
B
852 852 1028
C
420 420 582
D
341 341 387
E
41 41 41
F
156 156 238
G
135 135 135
H
391 391 557
I
1145 1145 1280
J
715 715 805
K
1085 1085 1220
L
370 370 415
M
771 771 951
Base Box
Std Std XA Std XA
øSa
300 300 350 350 400
øRa
300 300 350 350 400
HEATER
END
A
B
C
D
E
F
G
H
I
J
K
L
M
ø
Ra
ø
Sa
Table 1:
BX3 unit dimensions
