2.4 Orientation of Flue Terminal

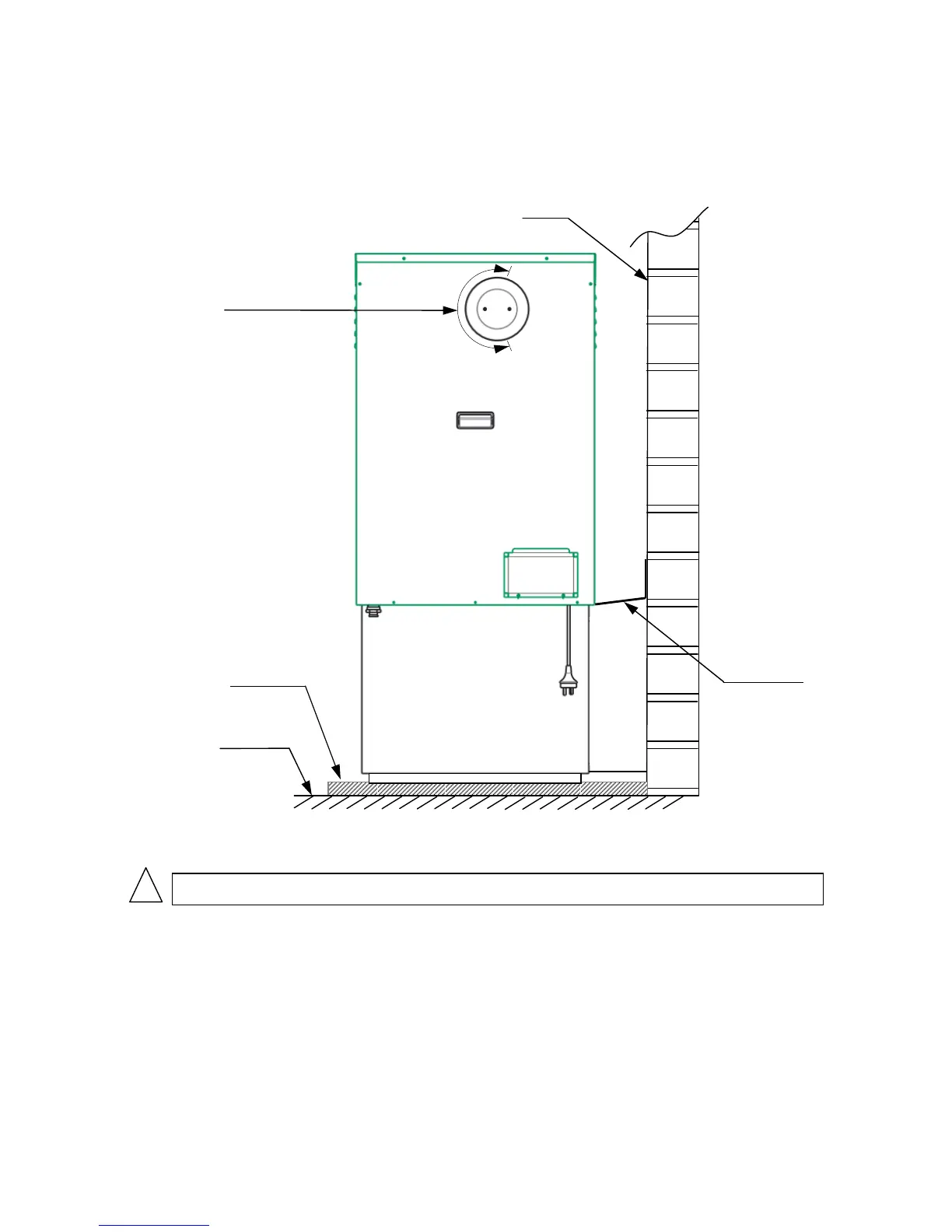

The flue terminal for BX3 models is supplied and fitted to the heater as shown in Diagram 2. The flue
terminal must be orientated correctly to ensure flue gases are expelled away from the building wall as
shown.
Diagram 2.
FLASHING
WALL
OPEN AREA OF
FLUE TERMINAL
LEVEL
CONCRETE
BASE
GROUND
!
Note: Open area of flue terminal must be discharging away from building
