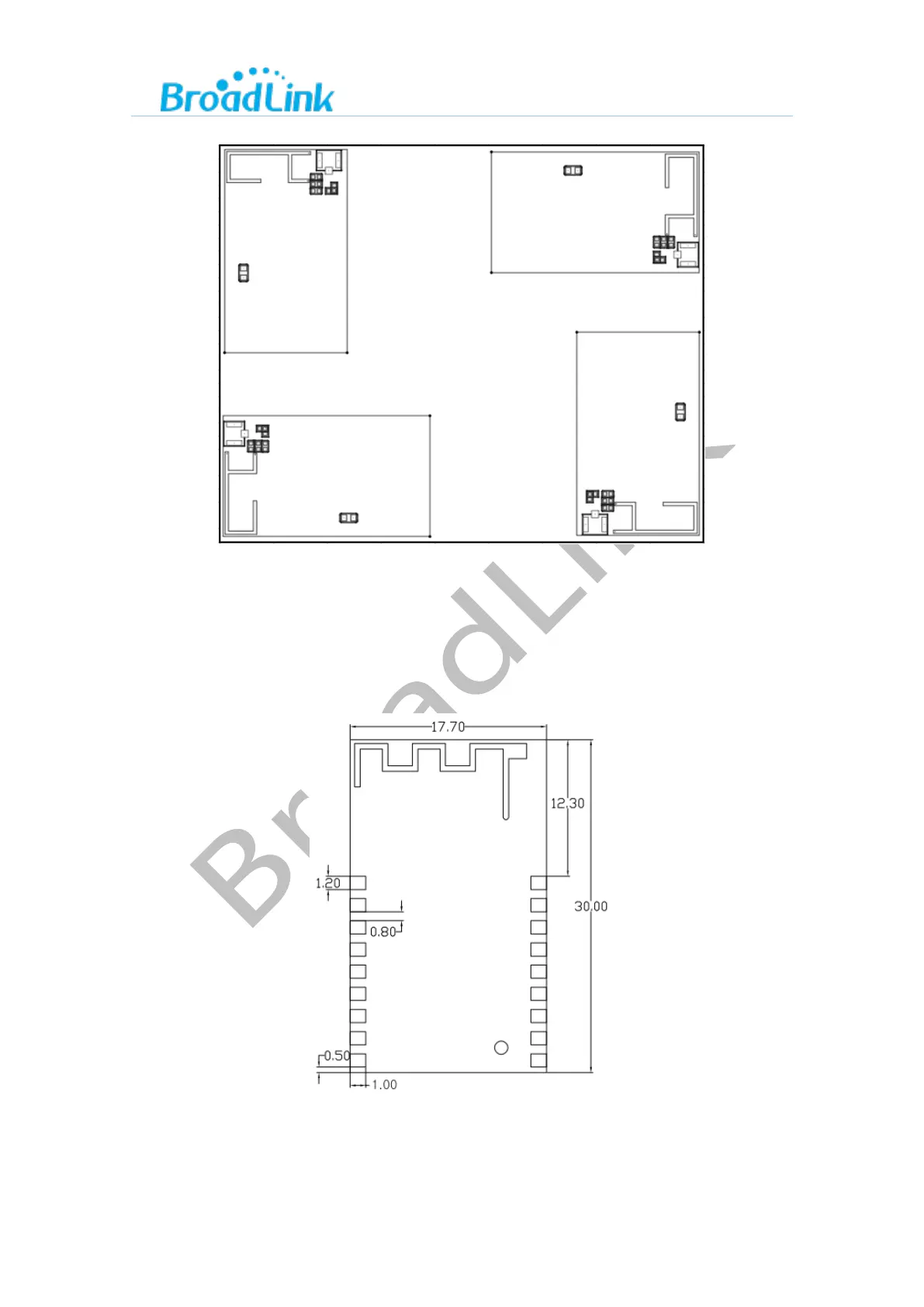

Fig 2 BL3383-P Recommended PCB layout

4.4. Mechanical Dimensions

Please refer to Fig 3 for the dimensions of module.

Fig 3 BL3383-P Module Dimensions

Note: Dimensions (17.7±0.2) mm * (30±0.2) mm * (3.2)mm (with shielding case)
