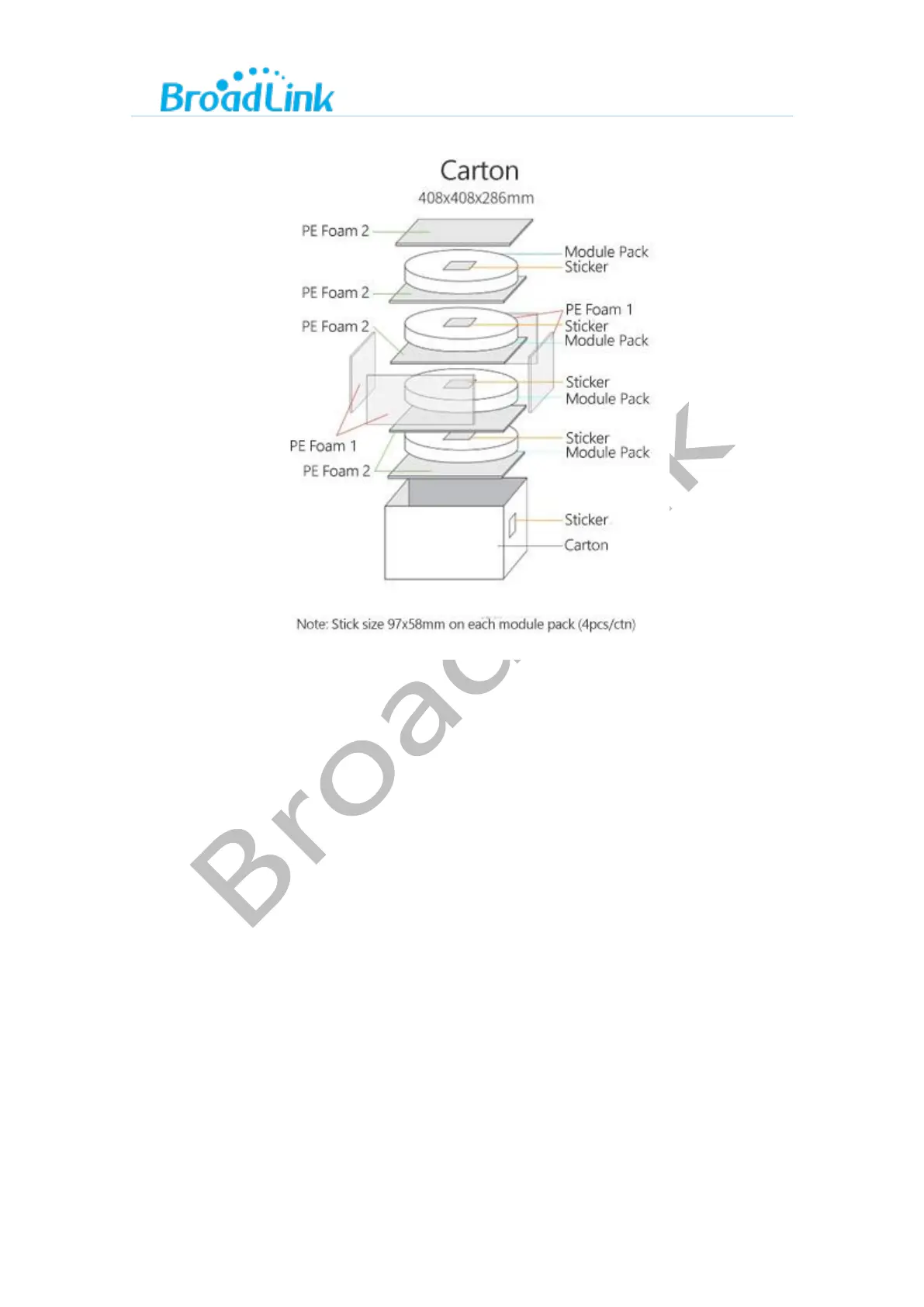

Fig 8 Carton
BL3383-P is packed in reel with 850 pcs/reel.
5. Reference Design
5.1. UART Interface Design
For devices with 3.3V power supply, you can directly connect the device UART port with module
UART port according to the illustration in Fig 12.
