Broan EVOLUTION 3 - Final Installation and Wiring; Mounting and Duct Connection; Electrical Wiring and Final Assembly

QP3 SERIES
Page 8

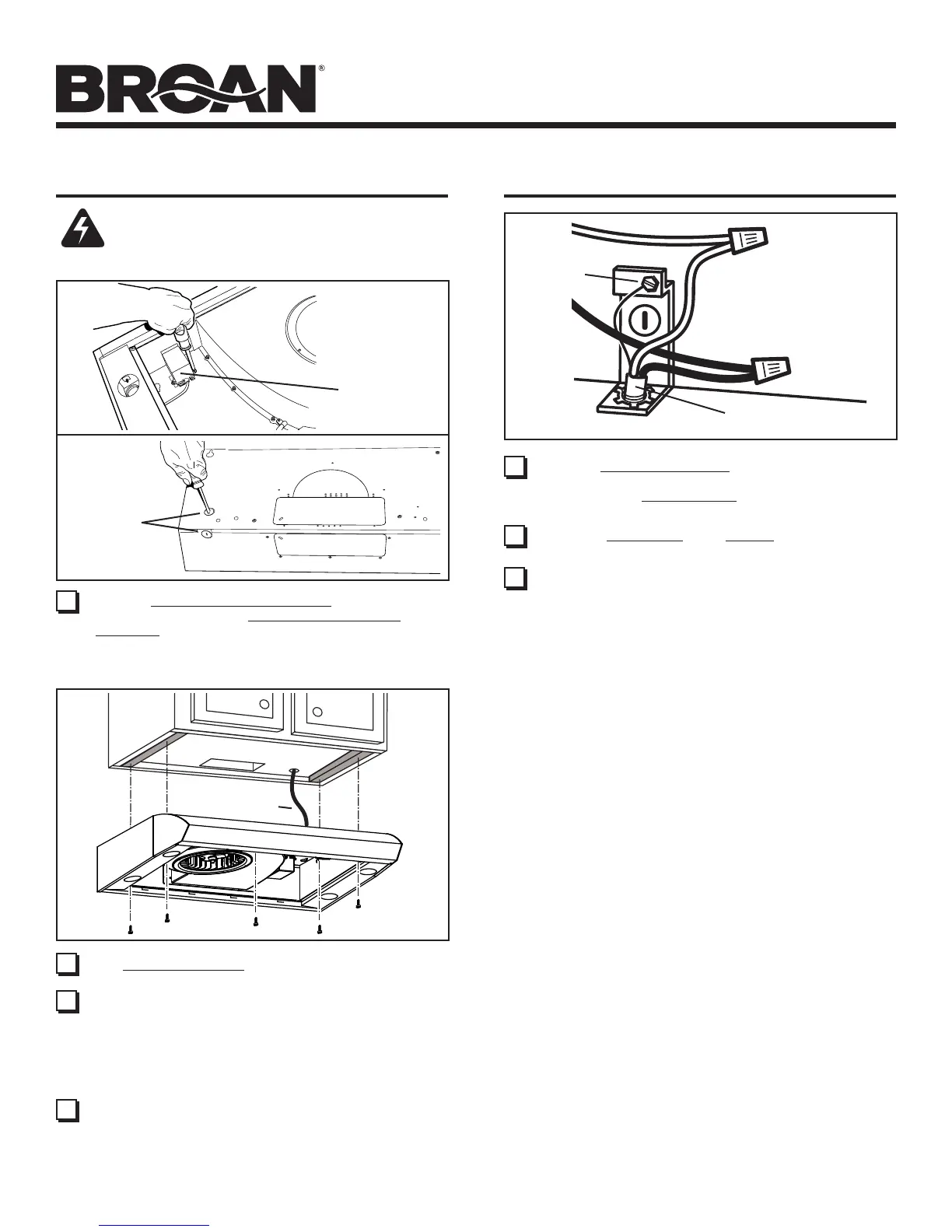

19 Run House Power Cable between service panel and hood
location. Attach power cable to hood using appropriate clamp.
20 Hang hood from (4) mounting screws driven part-way into
cabinet locations (shown in illustrations under “PREPARE
HOOD LOCATION”). Mounting screws are included in parts
bag. Slide hood back towards wall until mounting screw
heads are engaged in narrow end of keyhole slots in top of
hood. Tighten screws securely. Add 5th mounting screw in
center hole in hood and tighten securely.
21 DUCTED INSTALLATION ONLY:
Connect ductwork to hood and use duct tape to make joints
secure and air-tight. Make sure the damper / duct connector
enters the ductwork and that the damper opens and closes
freely.
HOUSE
POWER CABLE
INSTALL THE HOOD
WARNING
To reduce the risk of electrical shock, switch power off
at service panel. Lock or tag service panel to prevent
power from being switched on accidentally.
ELECTRICAL
WIRING BOX
COVER
18 Remove Electrical Wiring Box Cover from inside
of hood and appropriate Electrical Power Cable
Knockout from top or back of hood.
ELECTRICAL
POWER
CABLE
KNOCKOUT
CONNECT THE WIRING
22 Connect House Power Cable to range hood wiring -
BLACK to BLACK, WHITE to WHITE, and GREEN or
BARE WIRE to Ground Screw. Replace electrical wiring
box cover.
HOUSE
POWER CABLE
GROUND
SCREW
23 Re-attach Bottom Pan with 6 Screws removed in Step 10.
24 DUCTED INSTALLATION ONLY:
Re-install aluminum filters removed in Step 9.
NON-DUCTED INSTALLATION ONLY:
Install aluminum filters and non-ducted filters - purchased
and assembled in Step 15.
