LP50100DC
n
Installation Guide
Page 5
Installation
4

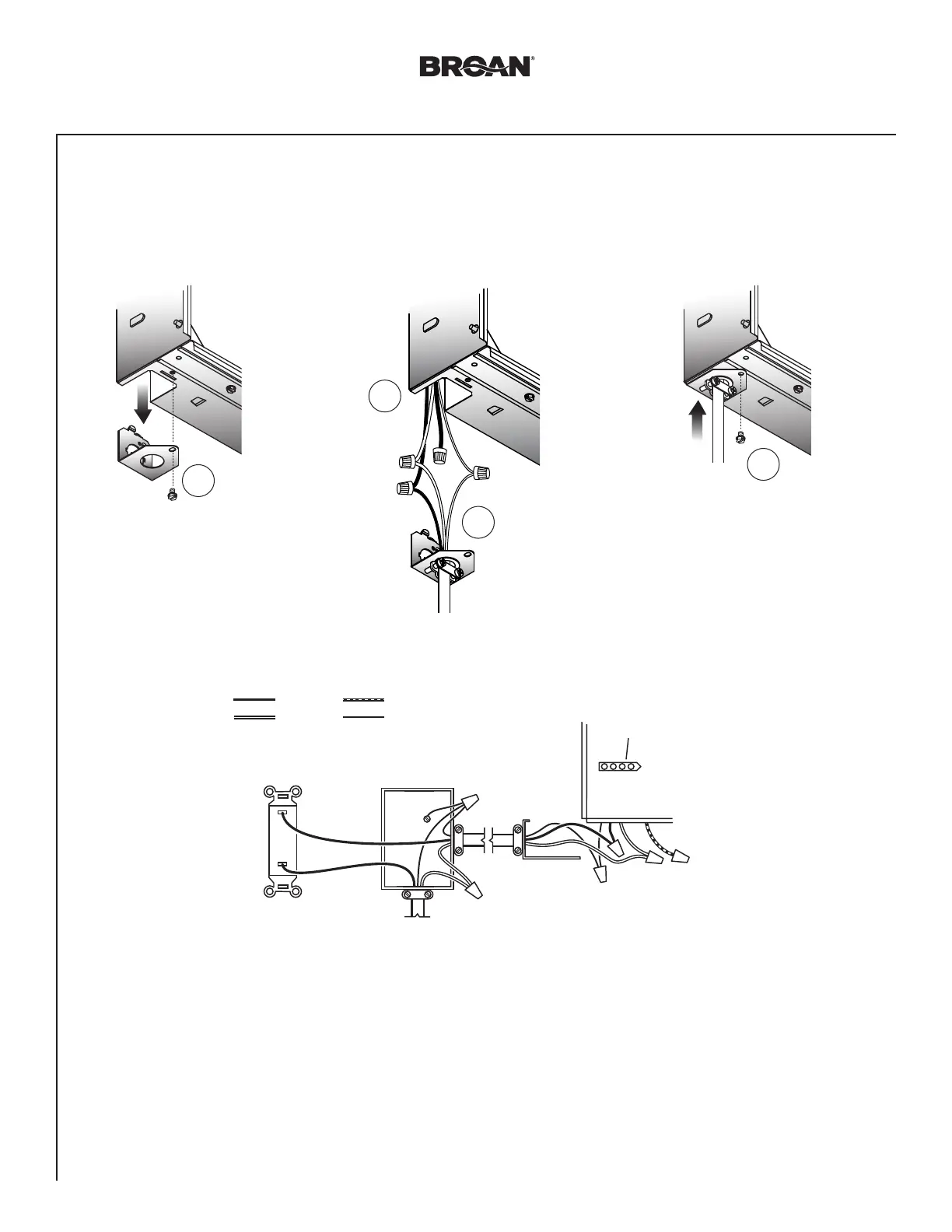

Connect Wires
• Run 120VAC electrical wiring to the installation location.
• Use proper UL-approved connectors to secure wiring to the Knockout Plate.
• Connect wires as shown in wiring diagram.
Attach cable
clamp to Knockout
Plate. Knockout
Plate may be
oriented as
desired.
Connect
wires
ON/OFF
SWITCH
(purchase separately)
KNOCKOUT
PLATE
RECEPTACLE
120 VAC LINE IN
SWITCH BOX
BLACK
WHITE GROUND (green or bare)
Do not use a
speed control.
RED
(not used)
3
2
1
4
