Broan QP236BL - Prepare the Hood

BR N
QP2 SERIES

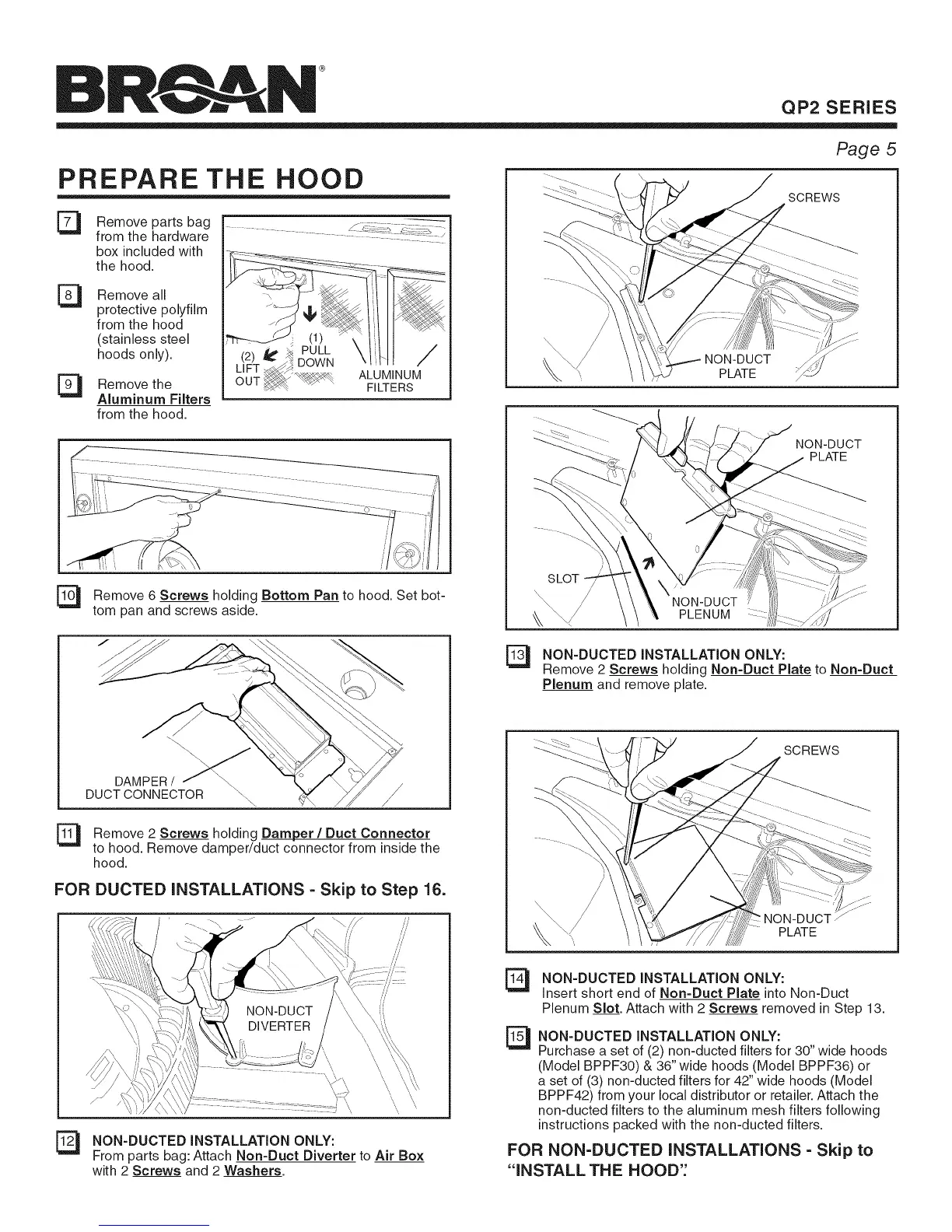

PREPARE THE HOOD
El parts bag
Remove
from the hardware
box included with
the hood.
Remove all
protective polyfilm
from the hood
(stainless steel
hoods only).
[_ emove the
Aluminum Filters
from the hood.
FILTERS
[_ Remove 6 Screws holding Bottom Pan to hood. Set bot-
tom pan and screws aside.
Page 5
SCREWS
NON-DUCT
PLATE
NON-DUCT
PLATE
SLOT
NON-DUCT
PLENUM ::::::::
DAMPER/'__
DUCTCONNECTOR \.
\
\
El Remove 2 Screws holding Damper / Duct Connector
to hood. Remove damper/duct connector from inside the
hood.
FOR DUCTED INSTALLATIONS = Skip to Step 16.
,//
,///
El
\, '\
NON-DUCTED INSTALLATION ONLY:
From parts bag: Attach Non=Duct Diverter to Air Box
with 2 Screws and 2 Washers.
[_ NON-DUCTED INSTALLATION ONLY:
Remove 2 Screws holding Non-Duct Plate to Non-Duct
Plenum and remove plate.
SCREWS
PLATE
[_ NON-DUCTED INSTALLATION ONLY:
Insert short end of Non-Duct Plate into Non-Duct
Plenum Slot. Attach with 2 Screws removed in Step 13.
El
NON-DUCTED INSTALLATION ONLY:
Purchase a set of (2) non-ducted filters for 30" wide hoods
(Model BPPF30) & 36" wide hoods (Model BPPF36) or
a set of (3) non-ducted filters for 42" wide hoods (Model
BPPF42) from your local distributor or retailer. Attach the
non-ducted filters to the aluminum mesh filters following
instructions packed with the non-ducted filters.
FOR NON=DUCTED INSTALLATIONS = Skip to
"INSTALL THE HOOD':
