INSTALLATION MANUAL
INSTALLATION
18

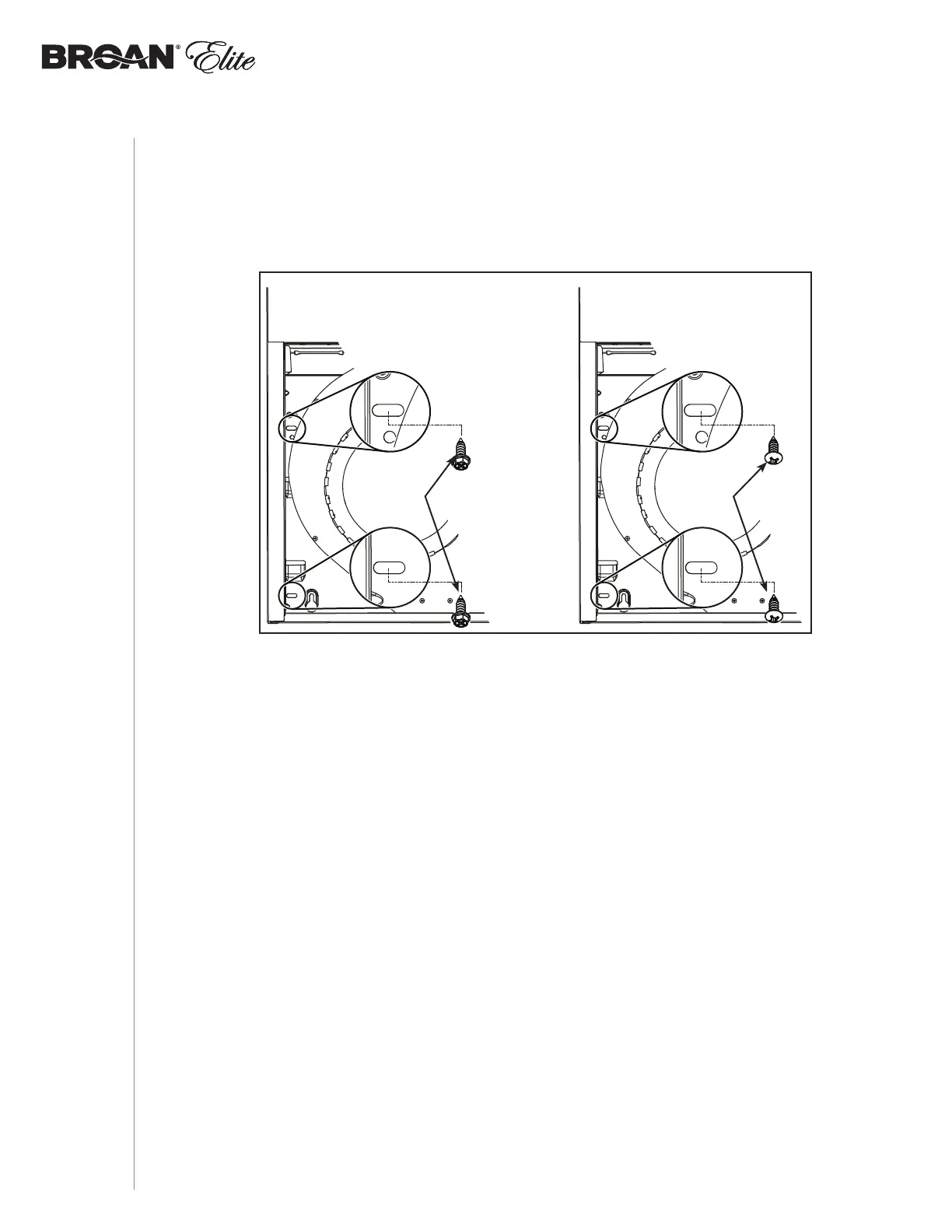

7 ] For framed cabinet, secure the hood to the EZ1 brackets using a 10” screwdriver bit and
4 no. 8-18 x 1/2” metal screws (included in parts bag). Insert 2 screws per side, in the slots (as
shown in inset on illustration below).
8 ] For frameless cabinet, secure the hood to the cabinet using a 10” screwdriver bit and 4 no. 8 x 5/8”
round head wood screws (included in parts bag). Insert 2 screws per side, in the slots (as
shown in inset on illustration below).
9 ] Attach power cable to the hood using the strain relief.
FRAMED
CABINET
FRAMELESS
CABINET
WOOD
SCREWS
METAL
SCREWS
