Brose Display Allround | Product Description 25 | EN
3.2. Explanation of Illustrations
(b)
(c)
(d)
(e)
(a)
(f)

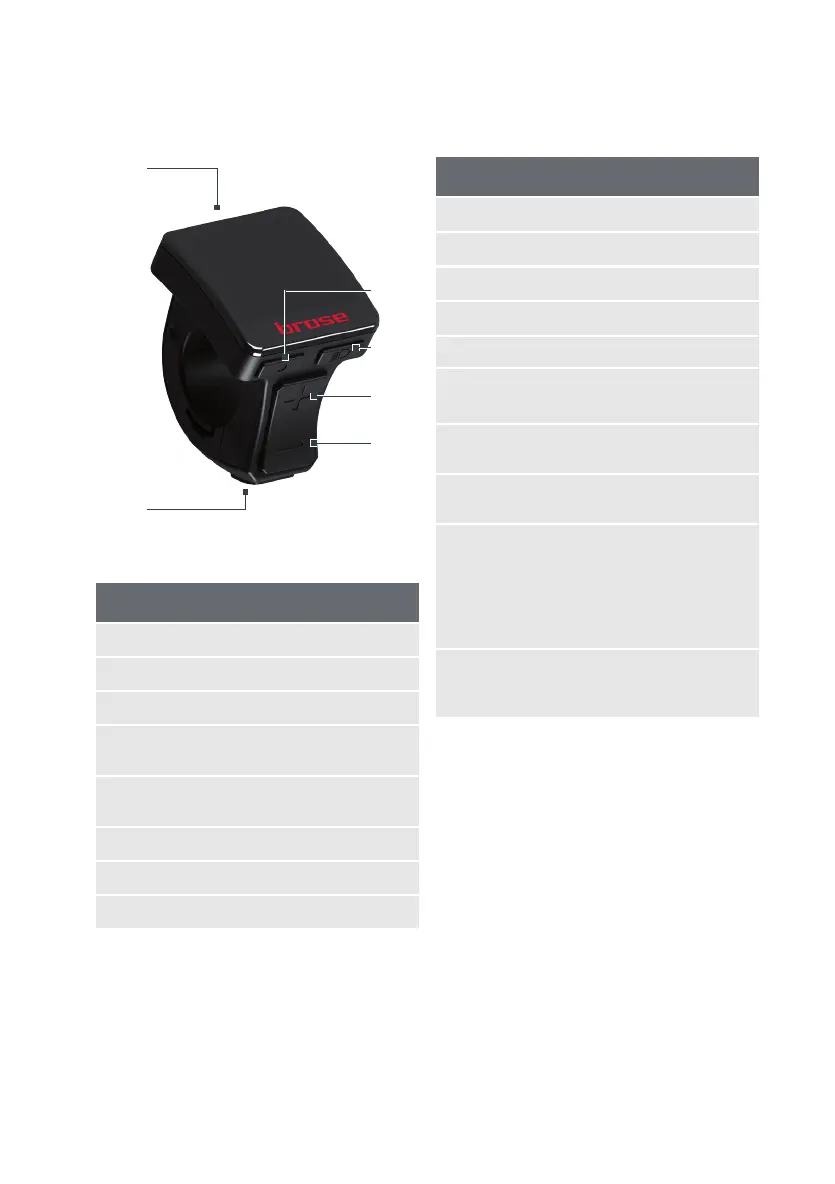

Fig. 1: Key Assignment
Allround display and control unit
(a) «On/Off» key
(b) «Menu» key / select key
(c) «Light» key
(d) «Increase» assistance level /
scroll menu up
(e) «Decrease» assistance level /
scroll menu down
(f) «Walk Assit» key / menu back one level
(g) Control unit grub screw
(h) Plugs
The numbering of the described components
also refers to the illustrations on the graphics
pages at the beginning of the manual. All
illustrations are schematic and may differ in
details from the actual features of your e-bike.
3.3. Technical Data
Allround display and control unit
Brose material no. E41230
L × W × H 44 × 37 × 50 mm
Weight, approx. 50 g
Handlebar (d) 22,2 mm
Electrical data 12V / max. 3W
Display 1,5 Zoll TFT colour display
(240 × 240 px)
Operating and storage
temperature
-10°C bis 60°C
IP X7 (HMI)
Dust-tight, water-tight
Certificates
CE, ROHS, Reach,
Bluetooth (EU,
Switzerland, USA,
Canada, Japan)
BLUETOOTH low energy® 5.0 (optional ANT+)
Frequency 2400–2480 MHz
Transmission power < 10 mW
3.4. Declaration of Conformity
Brose Antriebstechnik GmbH & CoKG hereby
declares that the «Display Allround» wireless
system complies with Directive 2014/53/
EU. The full text of the EU Declaration of
Conformity is available at the following Internet
address(Service/Servicetool):
www.brose-ebike.com
190729_Brose_BDA-Allround-Multi.indd 25 29.07.2019 15:14:30
