Broseley eVolution 5 - Controls Layout

Controls Layout

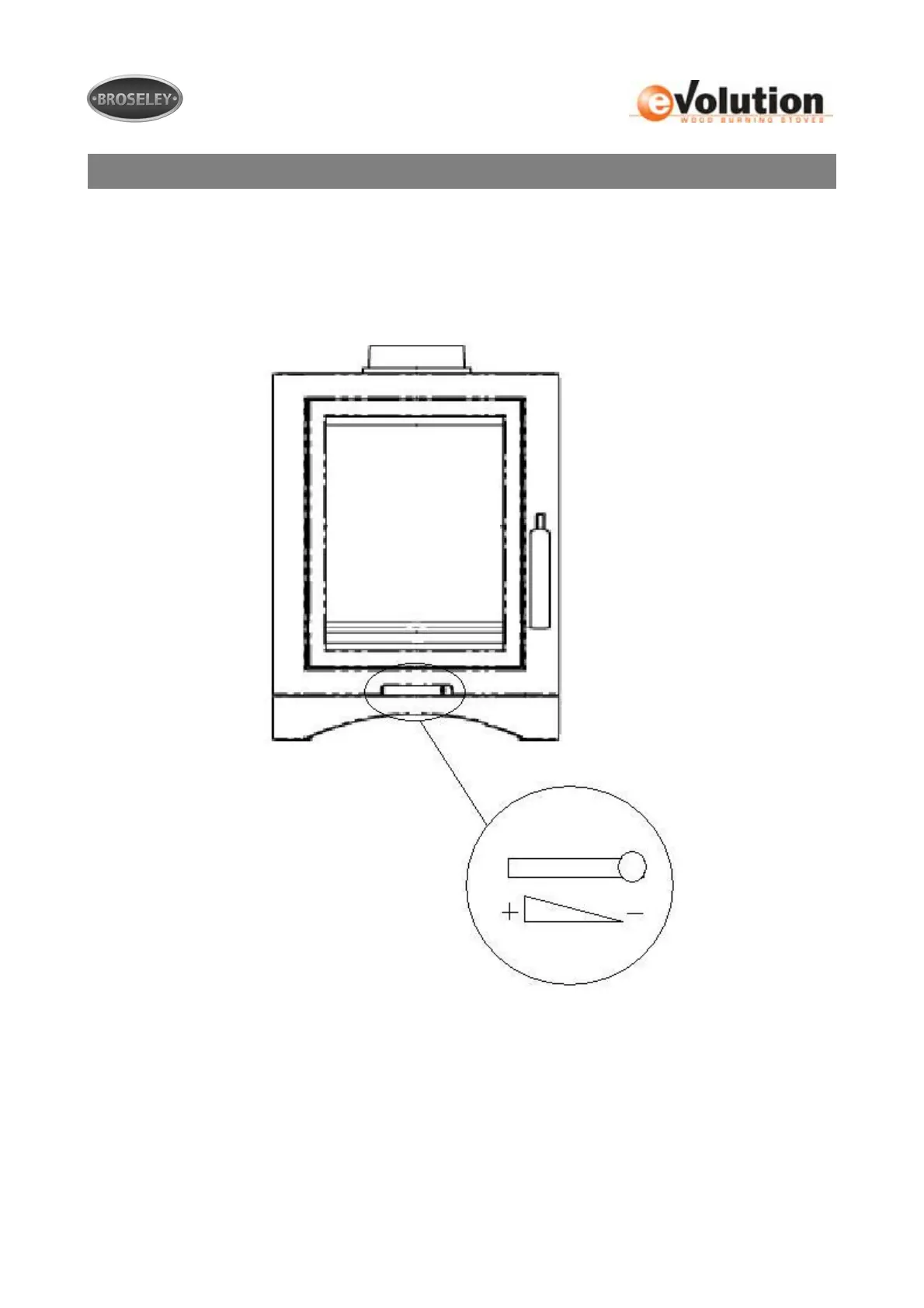

The diagram below shows the position of the air control, this control needs to be operated
correctly to control the combustion rate of the stove.
This air control is classed as the “Secondary Air Intake” as it brings air in above the
grate. See the following section for a more detailed description of how this control works.
MS07-11 Issue 2 13
