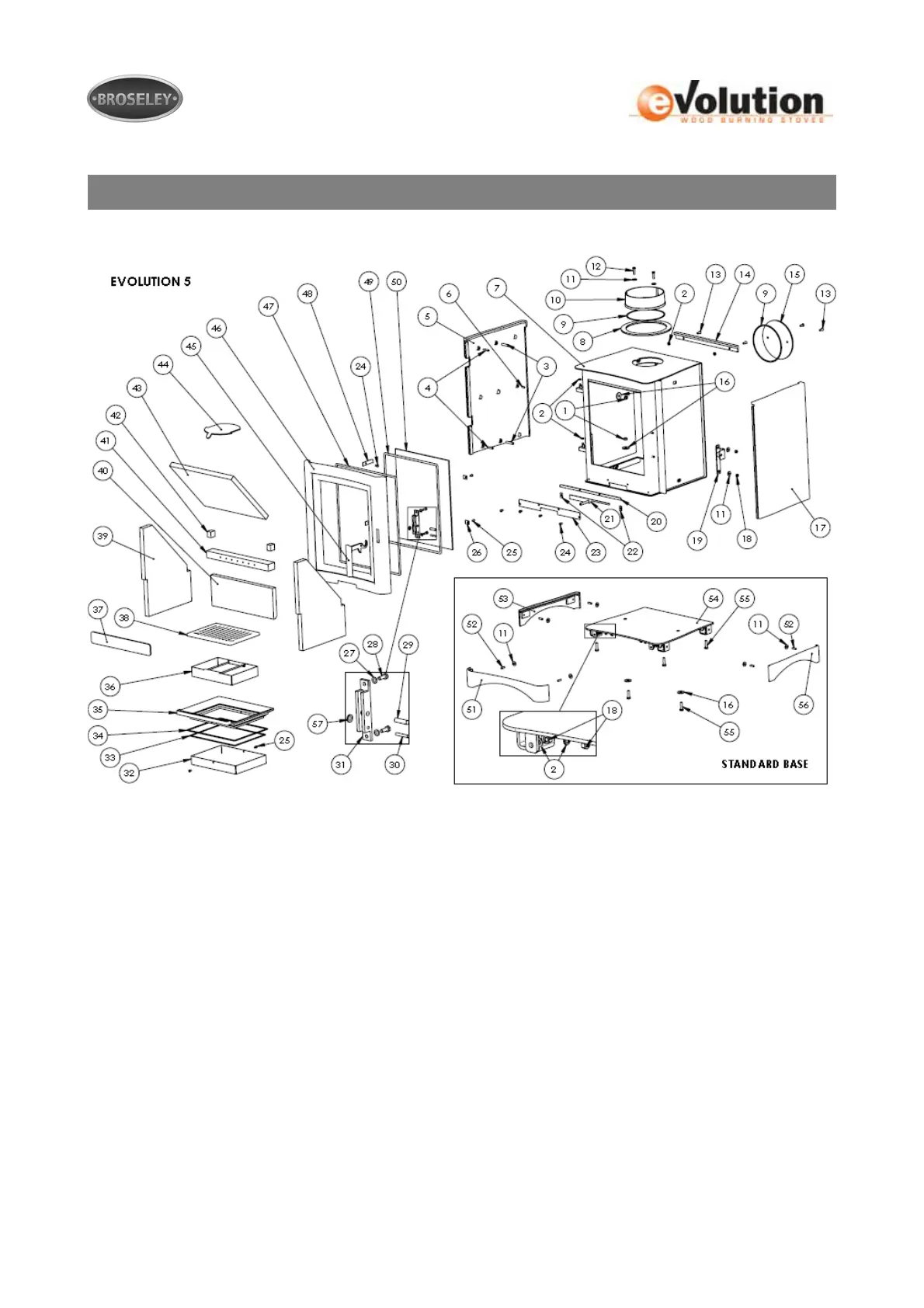

Spare Parts
(1) M8 Nut (2) M6 Washers (3) M8 Threaded Rod (4) M8 Threaded Spacer (5) Left Side
Casting (6) M8 Nut (7) Steel Body Assembly (8) Spigot Ring (9) 6mm Rope (10) Spigot
(11) 8mm Washer (12) M8 Bolt (13) M6 Screw (14) Rear Casting (15) Blanking Plate
(16) 8mm Washer (17) Right Side Casting (18) M6 Screw (19) Door Handle Latch
(20) Rear Slider Guide (21) Slider (22) Slider Washer (23) Front Slider Guide
(24) M6 Screw (25) M6 Glass Clip Screw (26) Glass Clip (27) M8 Washer (28) M8 Bolt
(29) Handle Rod (30) Handle Stop Rod (31) Handle Bracket (32) Ashpan Housing
(33) 6mm Rope (34) 8mm Rope (35) Grate Support (36) Ashpan (37) Log Retainer
(38) Grate (39) Side Vermiculite (40) Rear Vermiculite (41) Air Tube ermiculite
(42) Vermiculite Spacer Block (43) Vermiculite Baffle (44) Steel Baffle (45) Handle
(46) Door Casting (47) 10mm Rope (48) Smoke Exempt Washer (49) 6mm Rope
(50) Glass (51) Base Front Casting (52) 6mm Spacer Rod (53) Left Side Base Casting
(54) Steel Base (55) M8 Levelling Bolt (56) Right Side Base Casting
MS07-11 Issue 2 24
