Brother 2504D User Manual

3 - 15
Adjustment
Adjustment Adjustment

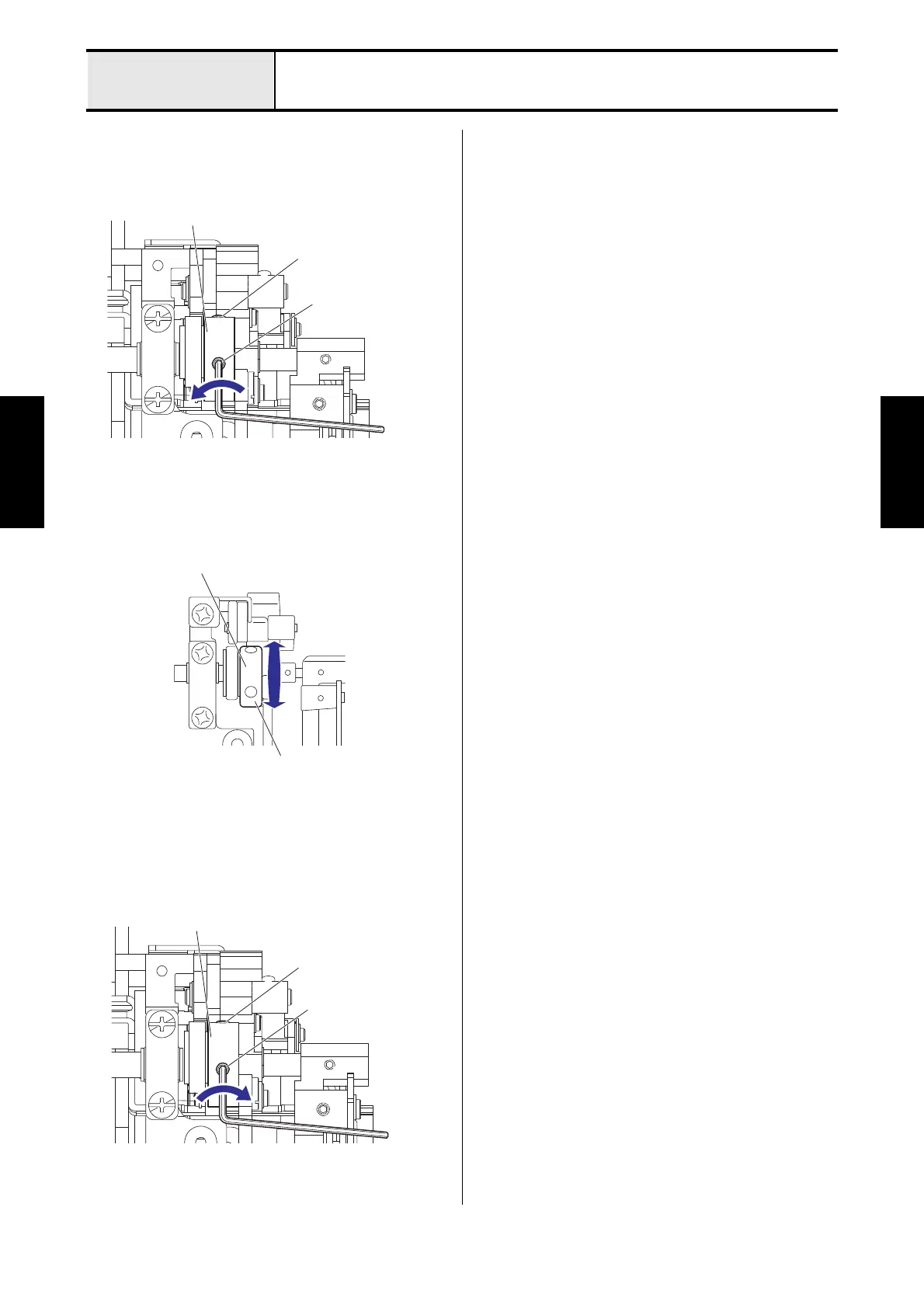

Feed timing adjustment
1. Loosen the two screws (set screw, socket (FT)
M4x4) for the feed eccentric wheel, and then
remove the screw (rear side).
2. Align the screw hole (rear side) of the feed
eccentric wheel with the cut surface of the
driving shaft.
3. Secure the screw (rear side) of the feed
eccentric wheel to the cut surface of the driving
shaft, and then secure the screw (front side).
Set screw, socket
(FT) M4x4
(Rear side)
Set screw, socket
(FT) M4x4
Feed eccentric wheel
Feed eccentric wheel
Align the screw hole with the
cut surface of the driving shaft.
Set screw, socket
(FT) M4x4
(Rear side)
Set screw, socket
(FT) M4x4(Front side)
Feed eccentric wheel

Brother 2504D Specifications

General

Type	Overlock
Differential Feed	0.7 - 2.0
Free Arm	Yes
Color-Coded Threading	Yes
Needle System	130/705H
Stitch width	5.0 - 7.0 mm
Stitch length	2.0 - 4.0 mm
Maximum Sewing Speed	1, 300 stitches per minute
Number of threads	3 or 4
Stitch Options	4 thread overlock, 3 thread overlock
