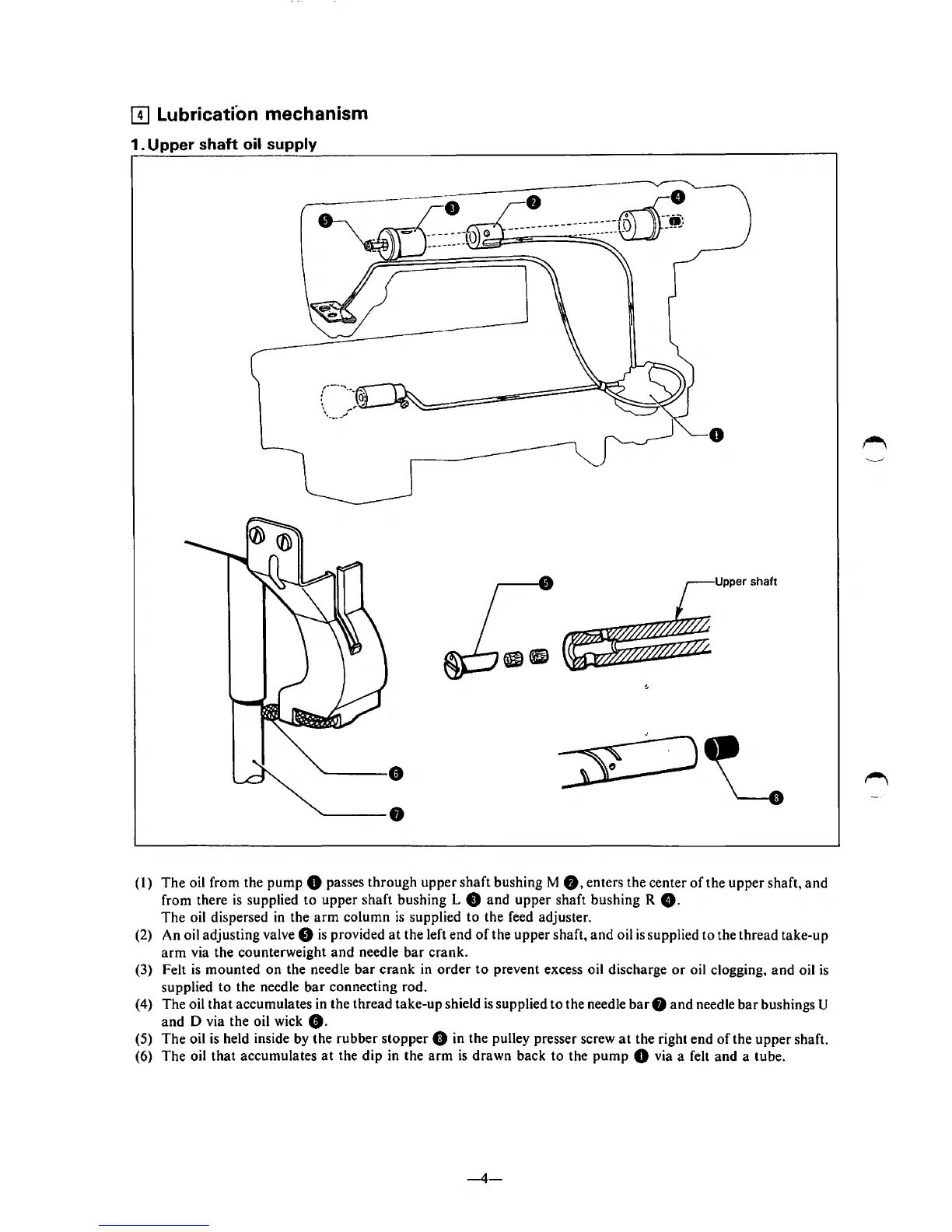

[!] Lubrication mechanism
1.
Upper shaft oil supply
Upper shaft
(I)
The
oil from the
pump
8 passes
through
upper
shaft bushing M
8,
enters the center
of
the upper shaft,
and
from there
is
supplied
to
upper
shaft bushing L 8
and
upper
shaft bushing R
8.
The
oil dispersed
in
the
arm
column
is
supplied
to
the feed adjuster.
(2) An oil adjusting valve
8
is
provided
at
the left end
of
the
upper
shaft,
and
oil
is
supplied
to
the
thread
take-up
arm
via the counterweight
and
needle
bar
crank.
(3) Felt
is
mounted
on
the needle
bar
crank
in
order
to
prevent excess oil discharge
or
oil clogging,
and
oil
is
supplied
to
the needle
bar
connecting rod.
(4) The oil
that
accumulates in the thread take-up shield
is
supplied
to
the needle
barO
and
needle
bar
bushings U
and
D via the oil wick
8.
(5)
The
oil
is
held inside by the
rubber
stopper
8 in the pulley presser screw
at
the right end
of
the
upper
shaft.
(6)
The
oil
that
accumulates
at
the dip in the
arm
is
drawn
back
to
the
pump
8 via a felt
and
a tube.
