Brother BAS-304 Service Manual

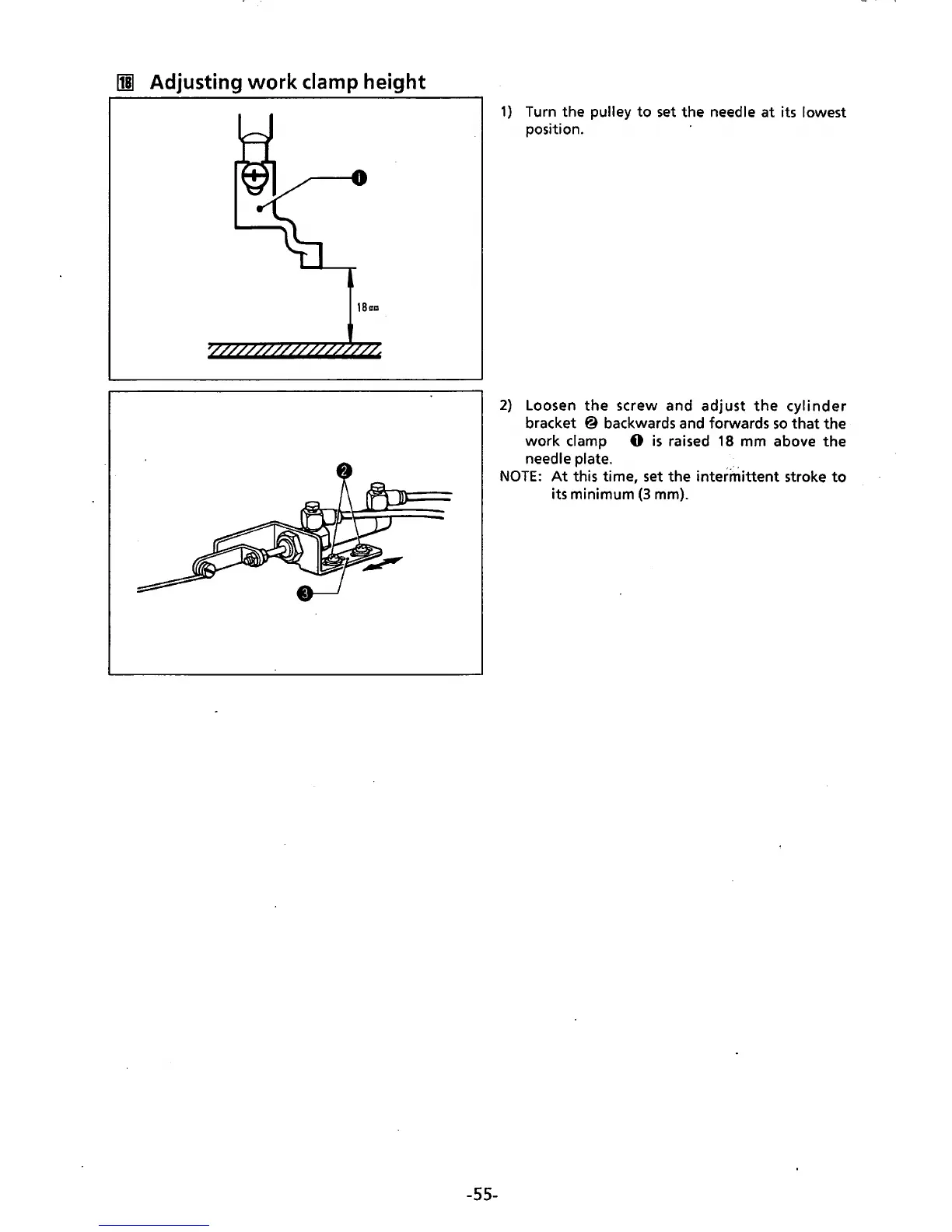

IBI Adjusting work clamp height
-55-
1) Turn the pulley to set the needle at its lowest
position.
2) Loosen the screw and adjust the cylinder
bracket @ backwards and forwards so that the
work clamp 0 is raised 18 mm above the
needle plate. . .
NOTE: At this time, set the intermittent stroke to
its minimum (3 mm).
