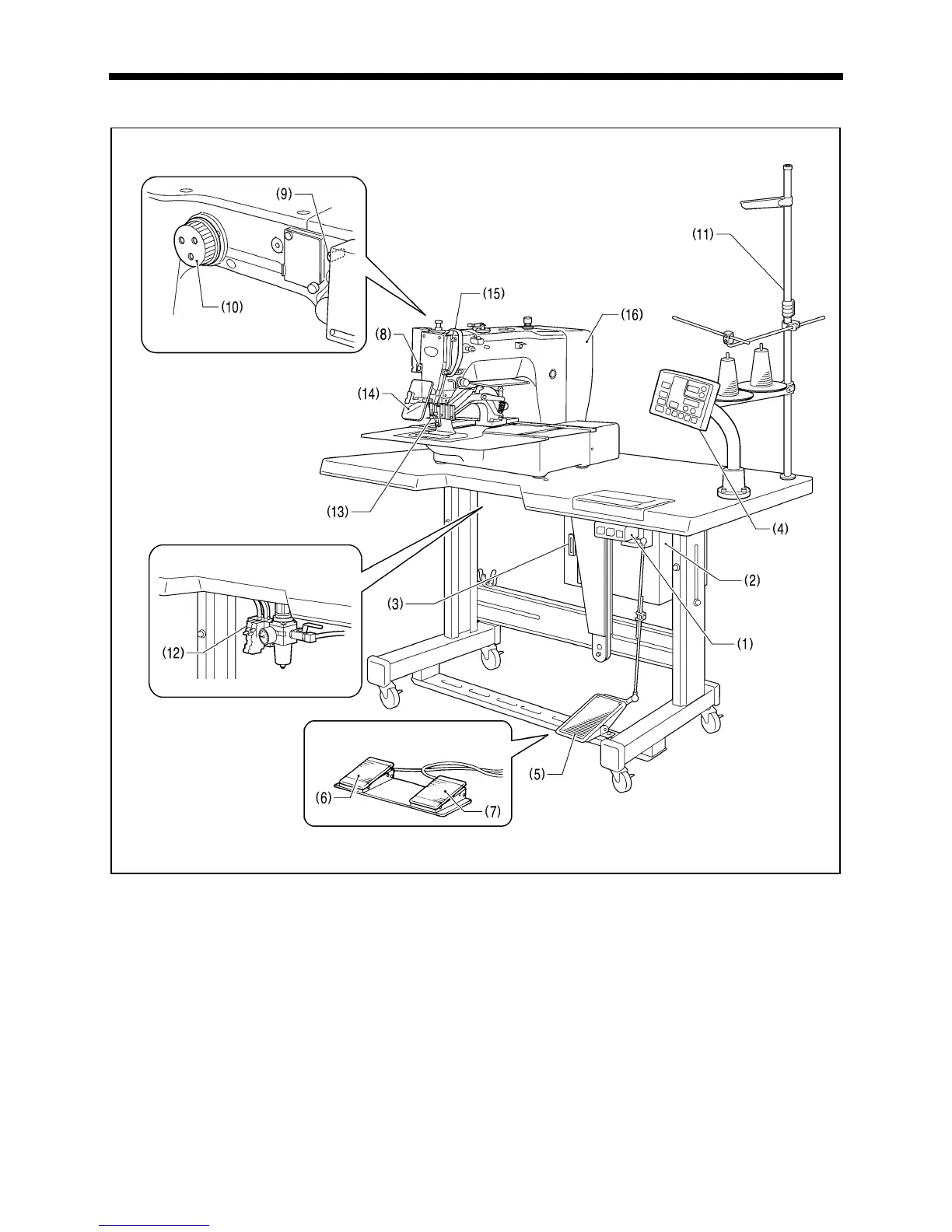

1. NAMES OF MAJOR PARTS
BAS-311G, BAS-326G
1
1. NAMES OF MAJOR PARTS
(1) Power switch Safety devices:
(2) Control box (13) Finger guard
(3) CF slot (14) Eye guard
(4) Operation panel (15) Thread take-up cover
(5) Foot switch (solenoid specifications) (16) Motor cover
(6) Work clamp switch (pneumatic specifications)
(7) Start switch (pneumatic specifications)
(8) STOP switch
(9) Thread wiper switch
(10) Pulley
(11) Cotton stand
(12) Solenoid valve (pneumatic specifications)
CF
TM
is a trademark of SanDisk Corporation.
4907Q
Two-pedal foot switch
