3. INST
ALLA
TION
BAS-31
1HN, BAS-326H
4

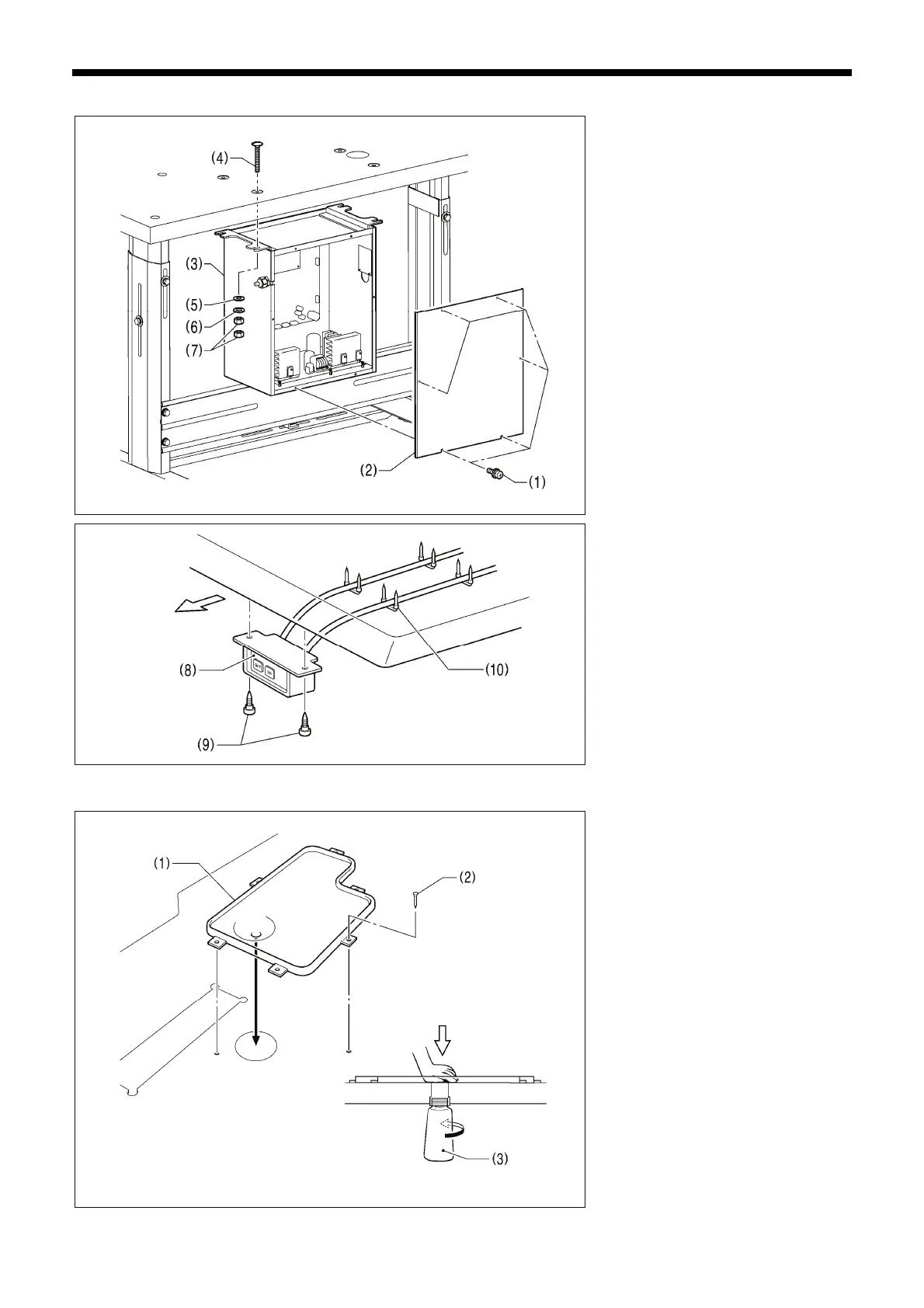

3-2. Inst
alling the control box
Remove the si
x screws (1), and then
remove the con
trol box cover (2).
(3) Control
box
(4) Bolts
[4
pcs.]
(5) Plain
washers
[4
pcs.]
(6) S
pring
washers
[4
pcs.]
(7) Nuts
[8
p
cs.]
(8) Power
sw
itch
(9)
Wood screw
s [2 pcs.]
(10) S
taples
[4
pcs.]
3-3. Inst
alling the oil p
an
(1) Oil
pan
(2) Nails
[6
pcs.]
(3) W
aste
oil
tank
3034B
1841B
Operator
3033B
11
13
