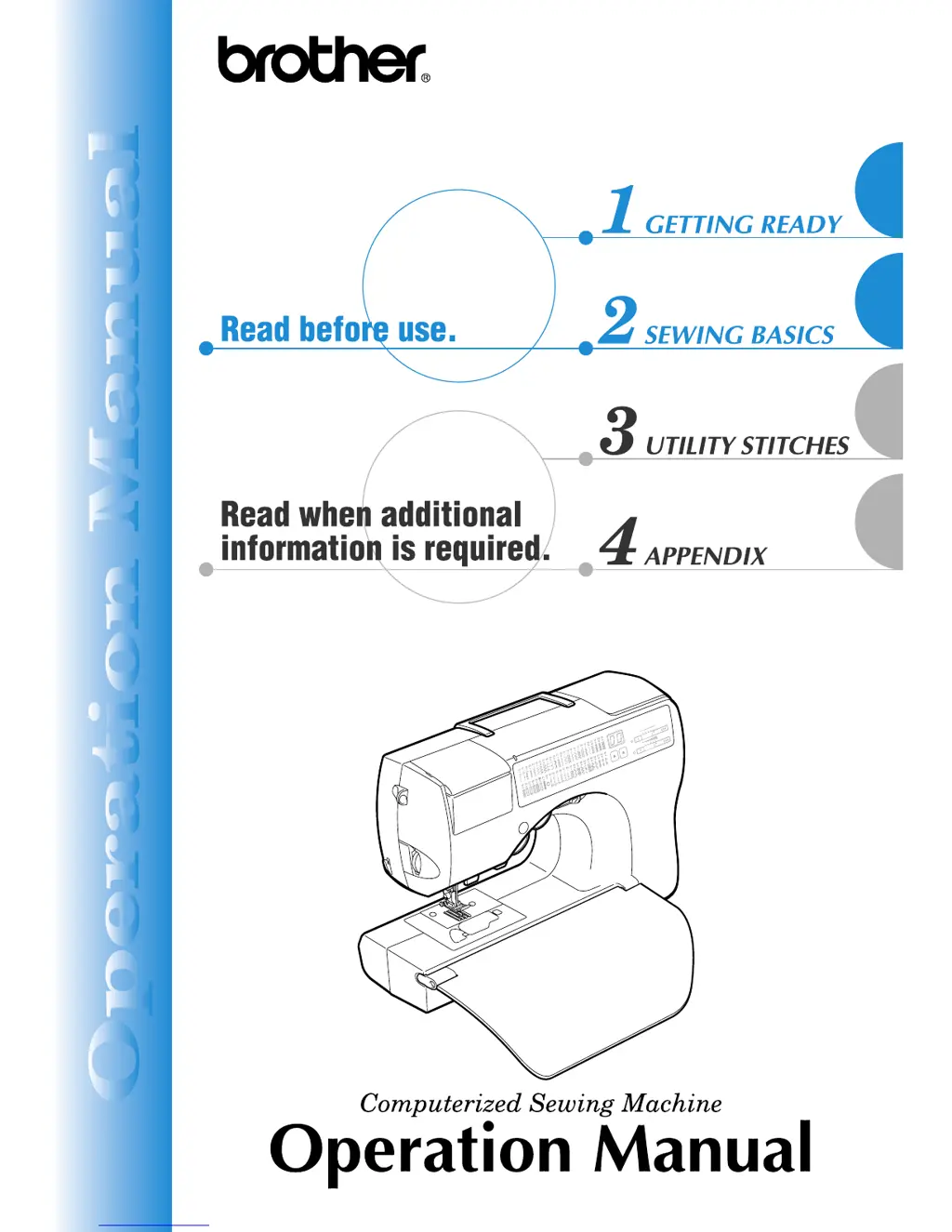

Brother CS-8060 - User Manual

Brother CS-8060
116 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

Table of Contents

Other manuals for Brother CS-8060

Preview: Manuel D'Instructions
Manuel D'Instructions113 pages

Questions and Answers

  • D
    Duane BakerAug 16, 2025
    Why Brother CS-8060 needle breaks?
    • C
      Christopher WilsonAug 17, 2025
      The needle may break due to several reasons: * The needle might be incorrectly installed; ensure it is correctly installed. * The needle could be bent or blunt; replace it with a new one. * The combination of fabric, thread, and needle might not be correct; select appropriate ones. * The presser foot might not be suitable for the stitch; attach the correct presser foot. * The upper thread tension could be too tight; loosen it. * The spool might be incorrectly installed; correctly install it. * The bobbin might not be designed for the machine; use only the correct bobbin.
  • R
    rebeccaanthonyAug 19, 2025
    What to do if my Brother CS-8060 Sewing Machine does not operate?
    • M
      Melissa MartinAug 19, 2025
      If your Brother Sewing Machine isn't operating, consider these potential causes: * The machine might not be turned on; in that case, turn it on. * The start/stop button may not have been pressed; press the start/stop button. * The presser foot lever could be raised; lower the presser foot lever. * If the foot controller is connected, do not use the start/stop button; disconnect the foot controller to use the start/stop button.
  • J
    Jeremy McgeeAug 22, 2025
    Why does the upper thread break on my Brother CS-8060?
    • J
      Jennifer BellAug 22, 2025
      The upper thread might break because: * The upper thread wasn't threaded correctly; correct the upper threading. * The selected needle isn't appropriate for the thread; select an appropriate needle. * The upper thread tension is too tight; loosen it. * The thread is tangled; remove the tangled thread and clean the shuttle. * The needle is bent or blunt; replace the needle. * The needle is incorrectly installed; correctly install the needle. * A bobbin designed specifically for this machine is not used; use only a bobbin designed specifically for this machine.
  • R
    richardbrownAug 25, 2025
    What to do if thread tension is incorrect on Brother CS-8060 Sewing Machine?
    • K
      Kelly BrownAug 26, 2025
      If the thread tension is incorrect on your Brother Sewing Machine: * Ensure the upper thread is correctly threaded. * Make sure the bobbin thread is correctly installed. * Verify that the fabric, thread, and needle combination is appropriate. * Check that the presser foot holder is correctly installed. * Adjust the tension of the upper thread. * Use only a bobbin designed specifically for this machine.
  • D
    delgadomelindaAug 27, 2025
    Why are stitches skipped on my Brother CS-8060?
    • J
      Jessica SmithAug 28, 2025
      Skipped stitches can occur if: * The upper thread wasn't threaded correctly; correct the upper threading. * The fabric, thread, and needle combination isn't correct; select an appropriate combination. * The needle is bent or blunt; replace the needle. * The needle is incorrectly installed; correctly install the needle. * Dust has accumulated; remove the needle plate cover and clean the shuttle.
  • A
    avilacynthiaAug 30, 2025
    What to do if Brother CS-8060 stitch is not sewn correctly?
    • J
      John CharlesAug 30, 2025
      If the stitch isn't sewn correctly, try these solutions: * Ensure the presser foot is appropriate for the stitch you're using; attach the correct presser foot. * Adjust the upper thread tension. * Remove any tangled thread, especially in the shuttle, and clean the shuttle.
  • A
    Andrew PaulSep 2, 2025
    Why Brother CS-8060 thread does not pass through the eye of the needle?
    • K
      kevinandersonSep 2, 2025
      If the thread doesn't pass through the needle eye: * The needle may not be raised; press the needle position button until the thread cassette indicator lights up in green. * The needle could be incorrectly installed; correctly install the needle.
  • S
    Susan MartinSep 4, 2025
    Why does my Brother Sewing Machine fabric not feed?
    • V
      vaguirreSep 5, 2025
      If the fabric isn't feeding through your Brother Sewing Machine: * Check if the feed dogs are lowered; slide the drop feed lever to the left. * The stitch might be too fine; lengthen the stitch length. * The presser foot may be inappropriate; attach the correct presser foot. * The thread could be tangled; remove any tangled thread and clean the shuttle.
  • G
    gbradleySep 7, 2025
    Why does my Brother CS-8060 Sewing Machine make a high-pitched noise?
    • C
      Crystal WallerSep 7, 2025
      A high-pitched noise during sewing can be due to: * Dust accumulation; clean the shuttle. * Incorrect upper thread threading; correct the upper threading. * Using an incorrect bobbin; use only a bobbin designed specifically for this machine.
  • D
    douglas72Sep 10, 2025
    Why does the lower thread tangle or break in my Brother CS-8060?
    • K
      Kayla MillsSep 10, 2025
      If the lower thread is tangling or breaking: * Ensure the bobbin thread is correctly installed. * Remove any tangled thread and clean the shuttle. * Use only a bobbin designed specifically for this machine.

Summary

Enclosed Accessories

Accessories

Lists all accessories included with the sewing machine, with part codes for reference.

Names of Machine Parts and Their Functions

Front view

Identifies the various parts of the sewing machine as seen from the front.

Needle and presser foot section

Details the components of the needle and presser foot assembly.

Right-side;rear view

Identifies parts of the sewing machine from its right side and rear.

Optional Accessories

Introduction

Sewing Machine Features

Highlights key features and capabilities of the sewing machine.

Important Safety Instructions

GETTING READY

Turning the Machine On;Off

Instructions on how to power the sewing machine on and off safely.

Winding;Installing the Bobbin

Step-by-step guide for winding and inserting the bobbin thread correctly.

Upper Threading

Procedures for threading the upper thread through the machine and needle.

Replacing the Needle

Guidance on how to safely remove and install sewing machine needles.

Replacing the Presser Foot

Instructions for changing presser feet for different sewing operations.

Sewing Cylindrical Pieces

How to perform free-arm sewing for cuffs, pant legs, and other tubular items.

SEWING BASICS

Sewing

Covers general sewing procedures and precautions before operating the machine.

Adjusting the Thread Tension

How to adjust upper and bobbin thread tension for optimal stitching.

Adjusting the Stitch Width and Length

Steps to customize stitch width and length settings for various fabrics.

Useful Sewing Tips

Tips for achieving better sewing results, including trial sewing and fabric handling.

UTILITY STITCHES

Selecting Stitching

Guide to selecting and adjusting various available stitches on the operation panel.

Overcasting Stitches

How to sew overcasting stitches to prevent fabric fraying using different presser feet.

Basic Stitching

Procedures for sewing straight stitches for plain seams and other basic tasks.

Buttonhole Stitching

Instructions for creating different types of buttonholes and sewing buttons.

Zipper Insertion

Step-by-step guides for inserting centered and side zippers.

Sewing Stretch Fabrics and Elastic Tape

Techniques for sewing stretch fabrics and attaching elastic tape.

Appliqué, Patchwork and Quilt Stitching

Techniques and stitches for decorative sewing tasks like appliqué, patchwork, and quilting.

Reinforcement Stitching

How to use stitches like triple stretch and bar tacks to reinforce seams and stress points.

Eyelet Stitching

Instructions for sewing eyelets on belts and other fabric items.

Decorative Stitching

Overview of various decorative stitches for embellishing fabrics.

APPENDIX

Stitch Settings

A comprehensive table listing stitch types, applications, and settings.

Maintenance

Procedures for cleaning and maintaining the sewing machine for optimal performance.

Troubleshooting

A guide to diagnosing and resolving common sewing machine problems and symptoms.

Error messages

Explains error messages that may appear on the stitch indicator and their causes.

Changing the needle stop position

How to set the needle to remain raised or lowered when sewing stops.

Brother CS-8060 Specifications

General IconGeneral
Stitches60
Buttonhole Styles7
Stitch Length5mm
Stitch Width7mm
Free ArmYes
Speed ControlYes
DisplayLCD
Bobbin TypeDrop-in
Needle ThreaderAutomatic
