Brother DCP-L5600DN Basic User's Guide

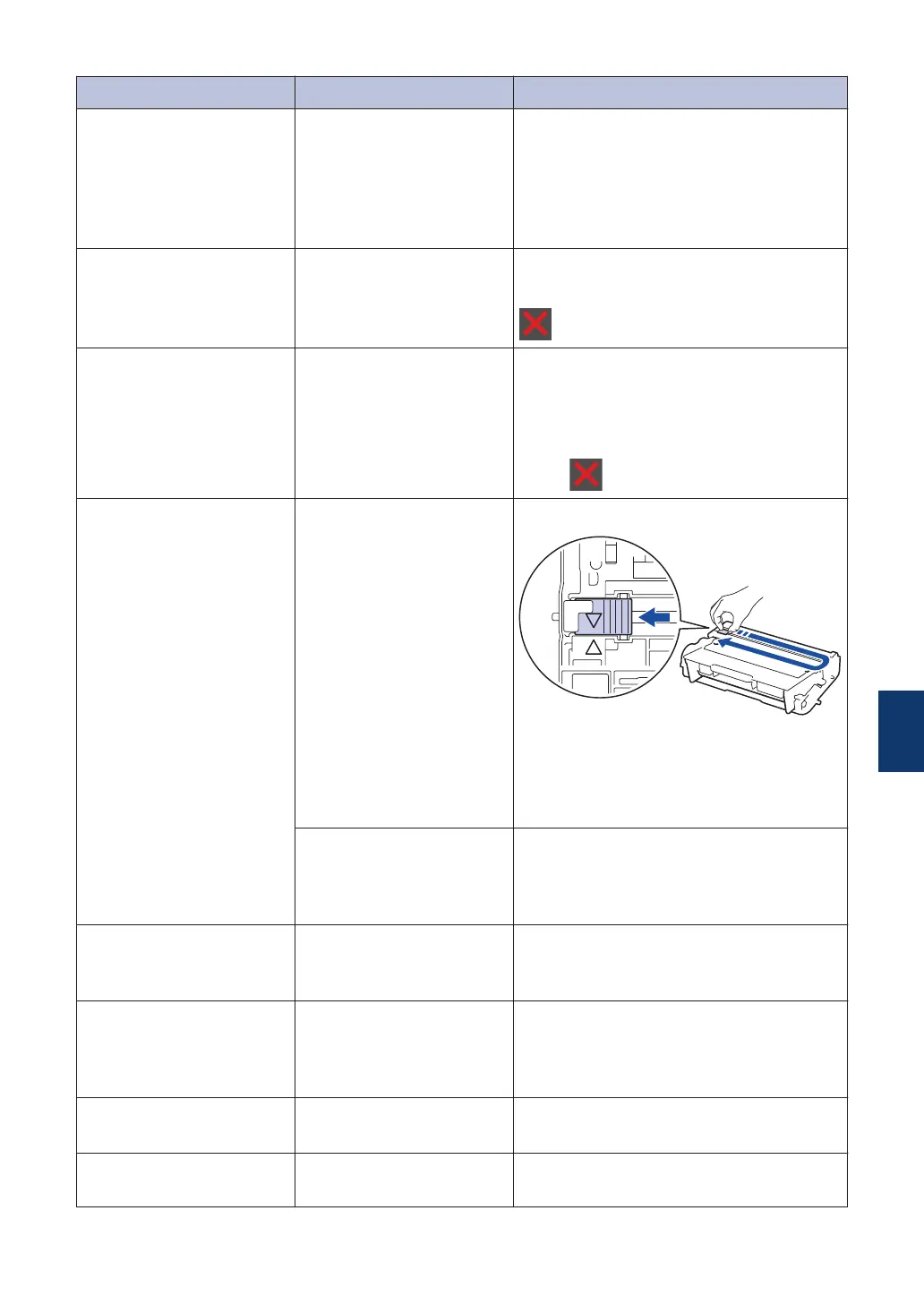

Error Message Cause Action
Cover is Open.
The fuser cover is not
completely closed or
paper was jammed in the
back of the machine
when you turned on the
power.
Close the fuser cover located inside the
back cover of the machine.
Make sure paper is not jammed inside
the back of the machine, and then close
the fuser cover.
Cover is Open.
The ADF cover is not
completely closed.
Close the ADF cover.
If the error message remains, press
.
Document Jam
The document was not
inserted or fed correctly,
or the document scanned
from the ADF was too
long.
Remove the jammed paper from the
ADF unit.
Clear any debris or scraps of paper from
the ADF unit paper path.
Press .
Drum !
The corona wire on the
drum unit must be
cleaned.
Clean the corona wire on the drum unit.
See the Online User's Guide: Clean the
Corona Wire.
If the problem continues, replace the
drum unit with a new one.
The drum unit or the toner
cartridge and drum unit
assembly is not installed
correctly.
Remove the drum unit, remove the toner
cartridge from the drum unit, and put the
toner cartridge back into the drum unit.
Reinstall the drum unit in the machine.
Jam 2-sided
The paper is jammed in
the 2-sided tray or inside
the back cover.
Remove the 2-sided tray and open the
back cover to pull out all jammed paper.
Jam Inside
The paper is jammed
inside the machine.
Open the front cover, remove the toner
cartridge and drum unit assembly, and
pull out all jammed paper. Close the
front cover.
Jam MP Tray
The paper is jammed in
the MP tray.
Remove all jammed paper from in and
around the MP tray. Press Retry.
Jam Rear
The paper is jammed in
the back of the machine.
Open the fuser cover and remove all
jammed paper. Close the fuser cover.
A
Troubleshooting
45

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
